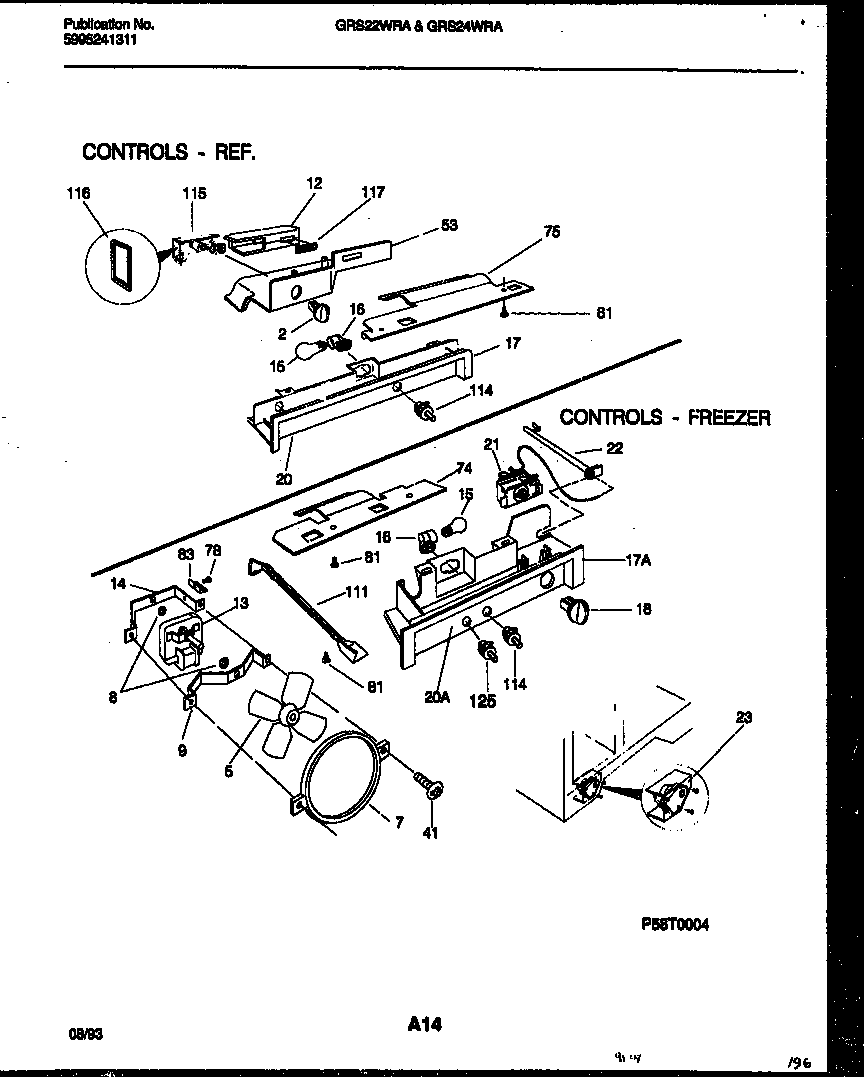

GRS24WRAD0 08 – CONTROLS-REFRIGERATOR AND CONTROLS-

GRS24WRAD0 08 – CONTROLS-REFRIGERATOR AND CONTROLS-

Written by

in

GRS24WRAD0 08 – CONTROLS-REFRIGERATOR AND CONTROLS-

Products

PositionProduct
2WCI 215028602
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215011600
13WCI 215348100
13A215474201 Frigidaire Refrigerator Washer
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17ACONTROL BOX, FRZR
17WCI 5303296805
18WCI 215051003
20AWCI 5303300358
20WCI 5303298202
21WCI 5303294323
22WCI 3018891
23CSHIELD-DEFROST TIMR,BTM
23ACOVER-DEFROST TIMER, TOP
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23B5304455649 Frigidaire Refrigerator Screw
41ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
415308000039 Frigidaire Refrigerator Screw
53WCI 215553300
74WCI 5303289516
75WCI 5303289052
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303297842
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011501
116WCI 215011400
117WCI 215011700
125WCI 215334201
