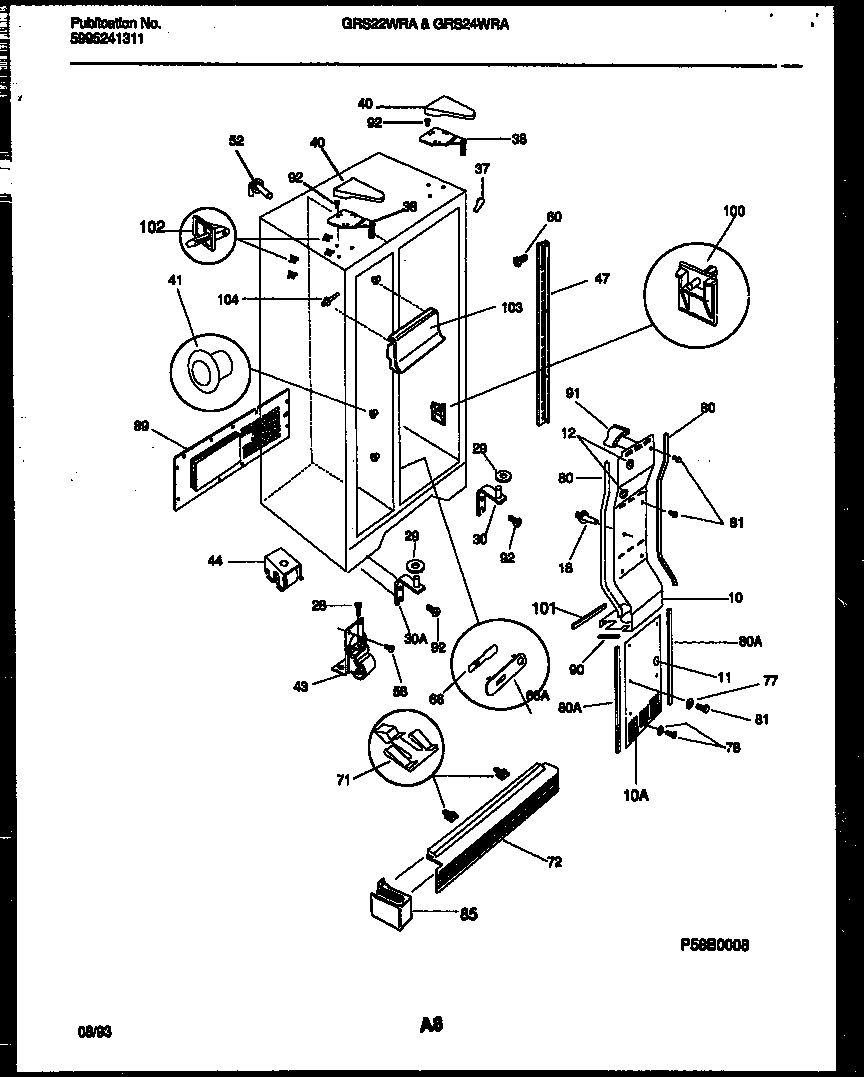

GRS24WRAW0 05 – CABINET PARTS

Products

Position	Product
10A	WCI 5303289494
10	WCI 5303297838
11	5303208309 Frigidaire Refrigerator Plug Hole
12	5303001147 Frigidaire Refrigerator Plug-Harness Hole
18	WCI 5303289043
18A	SUPPORT-AIR DUCT CVR,1.83“ LONG
28	WCI 5303289062
29	WCI 215003200
30A	TAPPING PLATE, RH (NOT ILLUSTRATED)
30A	TAPPING PLATE, LH (NOT ILLUSTRATED)
30	BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30A	WCI 215009000
37	TRIM-CABINET CORNER, WHITE
38	WCI 215595600
40	WCI 5303288945
41	5304509705 Frigidaire Refrigerator Grommet
41A	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
43	WCI 5303289059
43A	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
44	WCI 215163900
47	WCI 5303288974
52	WCI 5303289294
60	5304455852 Frigidaire Refrigerator Screw
66	WCI 215050201
66A	WCI 215050101
71A	SCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
71	WCI 215003300
72	WCI 5303295757
77	WASHER-NYLON,3/16 X 5/8 OD
78A	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
80A	WCI 5303289036
80	WCI 5303289037
81	5304455650 Frigidaire Refrigerator Screw
85	WCI 215003801
89	WCI 215176300
89A	5304455651 Frigidaire Refrigerator Screw
90	WCI 215022602
91	WCI 215177600
92	241710601 Frigidaire Refrigerator Screw
100	SUPPORT-PAN COVER
