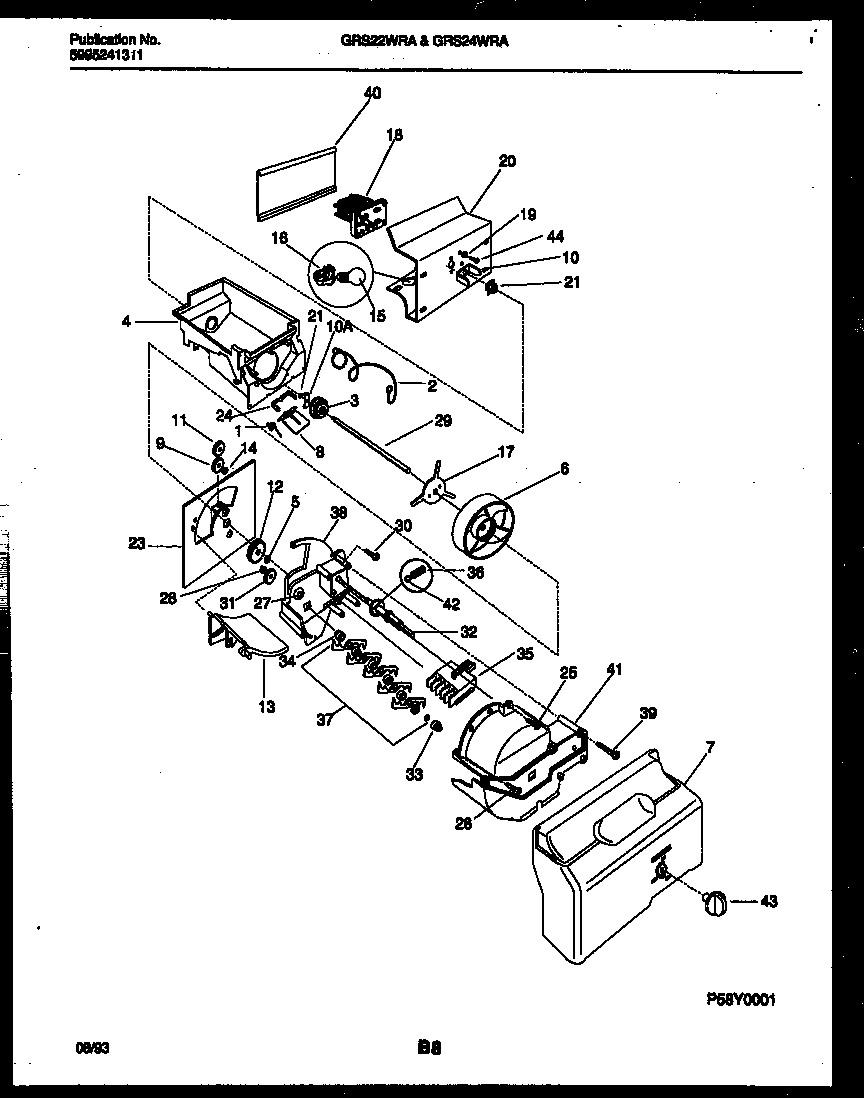

GRS24WRAW0 12 – ICE DISPENSER

GRS24WRAW0 12 – ICE DISPENSER

Written by

in

GRS24WRAW0 12 – ICE DISPENSER

Products

PositionProduct
1WCI 215571300
2WCI 215419000
3WCI 215419200
4AWCI 215463900
4WCI 215417700
5WCI 215748105
6WCI 215752800
7WCI 215421601
8WCI 215571200
9WCI 215419700
10241726501 Frigidaire Refrigerator Drive Bar
10AWCI 215757200
11WCI 215755200
12WCI 215420400
13WCI 215420600
14WCI 215419900
15316538904 Frigidaire Oven Lamp Light
16WCI 215767100
17WCI 215754800
18AWCI 215285500
185304462594 Frigidaire Refrigerator Motor-Auger
19WCI 215771000
20WCI 215285301
23WCI 215755300
23BSTUD (NOT ILLUSTRATED)
23ARING-RETAINER (NOT ILLUSTRATED)
24WCI 215571400
25WCI 215421400
26215503203 Frigidaire Refrigerator Door Handle Screw
27WCI 215748400
28WCI 215755100
29WCI 215757501
30WCI 215757300
31WCI 215757400
32ARING-SNAP (NOT ILLUSTRATED)
32WCI 215747501
33WCI 215748200
34WCI 215748300
35WCI 215753500
36WCI 215756700
37ABLADE-CRUSHER, NO. 3 (NOT ILLUSTRATED)
37CRING-SNAP (NOT ILLUSTRATED)
37WCI 215756100
37ABLADE-CRUSHER, NO. 1 (NOT ILLUSTRATED)
37BSHAFT-CRUSHER (NOT ILLUSTRATED)
37ABLADE-CRUSHER, NO. 2 (NOT ILLUSTRATED)
37ABLADE-CRUSHER, NO. 5 (NOT ILLUSTRATED)
37ABLADE-CRUSHER, NO. 4 (NOT ILLUSTRATED)
37DSPACER, (4) (NOT ILLUSTRATED)
37DSPACER, (2) (NOT ILLUSTRATED)
