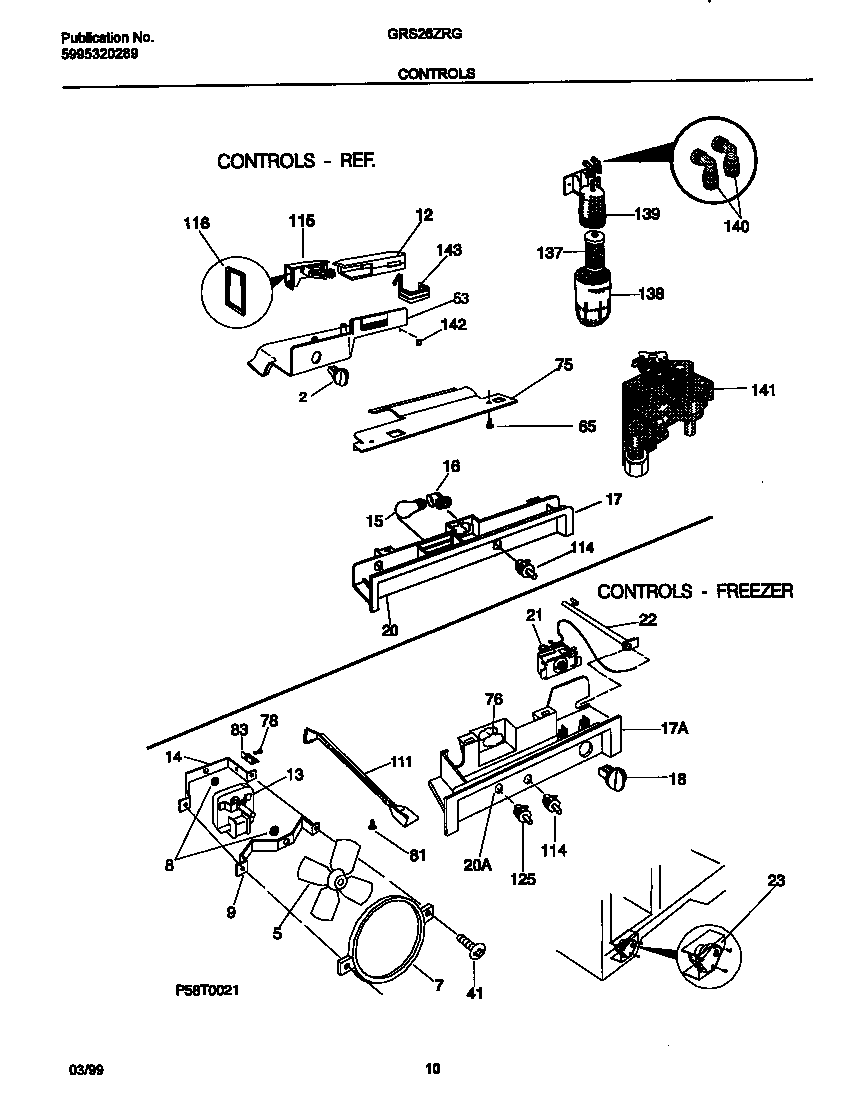

GRS26ZRGD5 06 – CONTROLS

GRS26ZRGD5 06 – CONTROLS

Written by

in

GRS26ZRGD5 06 – CONTROLS

Products

PositionProduct
*42709SHIELD-DEFROST TIMR,BTM
*42706WCI 218731102
*42712WIRING HARNESS,FILTER HEATER
*42707COVER-DEFROST TIMER, TOP
*42705215474201 Frigidaire Refrigerator Washer
*42713Screw-solenoid valve,hx hd-slot wshr ,12-24 x 3/4
*42711218710300 Frigidaire Refrigerator Water Filter Wrench
*42710NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*427085304455649 Frigidaire Refrigerator Screw
2WCI 215028605
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215809600
13WCI 215426200
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17CONTROL BOX, FRZR
17WCI 5303296805
18WCI 215051008
20WCI 5304405880
20AWCI 5303310340
20BSCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
21WCI 5303300027
22WCI 5303319683
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
415308000039 Frigidaire Refrigerator Screw
53WCI 215809510
65WCI 5303001361
75WCI 218465101
76WCI 218225800
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303297842
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011505
116WCI 215011400
137WCI 215334201
138AWCI 218657403
138BLABEL-WATER FILTER
139HOUSING-WTR FILTER
140WCI 218518700
141218832401 Frigidaire Water Inlet Valve
142WCI 218657701
143WCI 218696700
