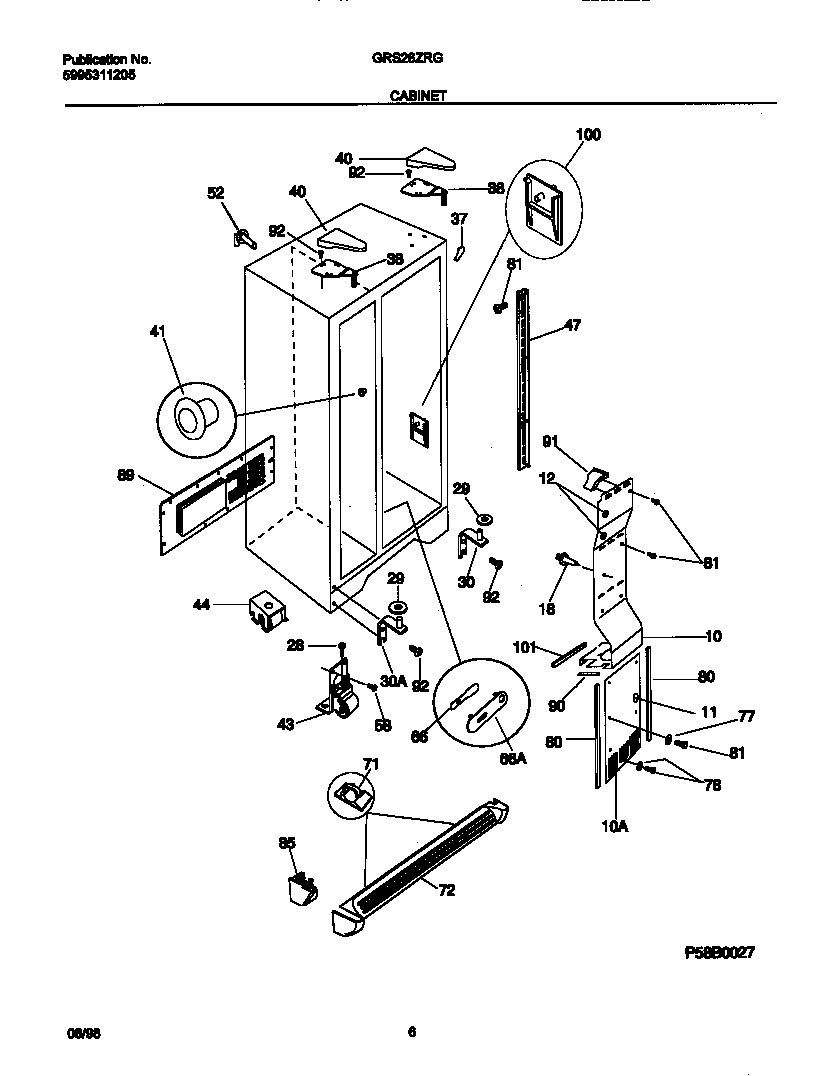

GRS26ZRGW1 04 – CABINET

GRS26ZRGW1 04 – CABINET

Written by

in

GRS26ZRGW1 04 – CABINET

Products

PositionProduct
*20965SUPPORT-AIR DUCT CVR,1.83“ LONG
*20967WCI 218871201
*20969WCI 218730800
*20966WCI 215598900
*20971SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*20973WCI 5303322647
*20968WCI 218730700
*20964NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*67126PLUG, BUTTON, CABINET LINER (NI)
*20972WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*671255303321319 Frigidaire Refrigerator White Touch Up Paint
*209705304500407 Frigidaire Refrigerator Shelf Mounting Grommet
10WCI 215637401
10WCI 215637602
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29BWCI 215314301
29AWCI 215003200
30WCI 215009100
30WCI 215008900
37WCI 5303321081
38BWCI 218215219
38AWCI 218215217
40WCI 5303318773
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 215050201
66WCI 218171301
72WCI 218359601
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218359802
89WCI 215176300
90WCI 215022602
91WCI 218836401
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101WCI 215305702
