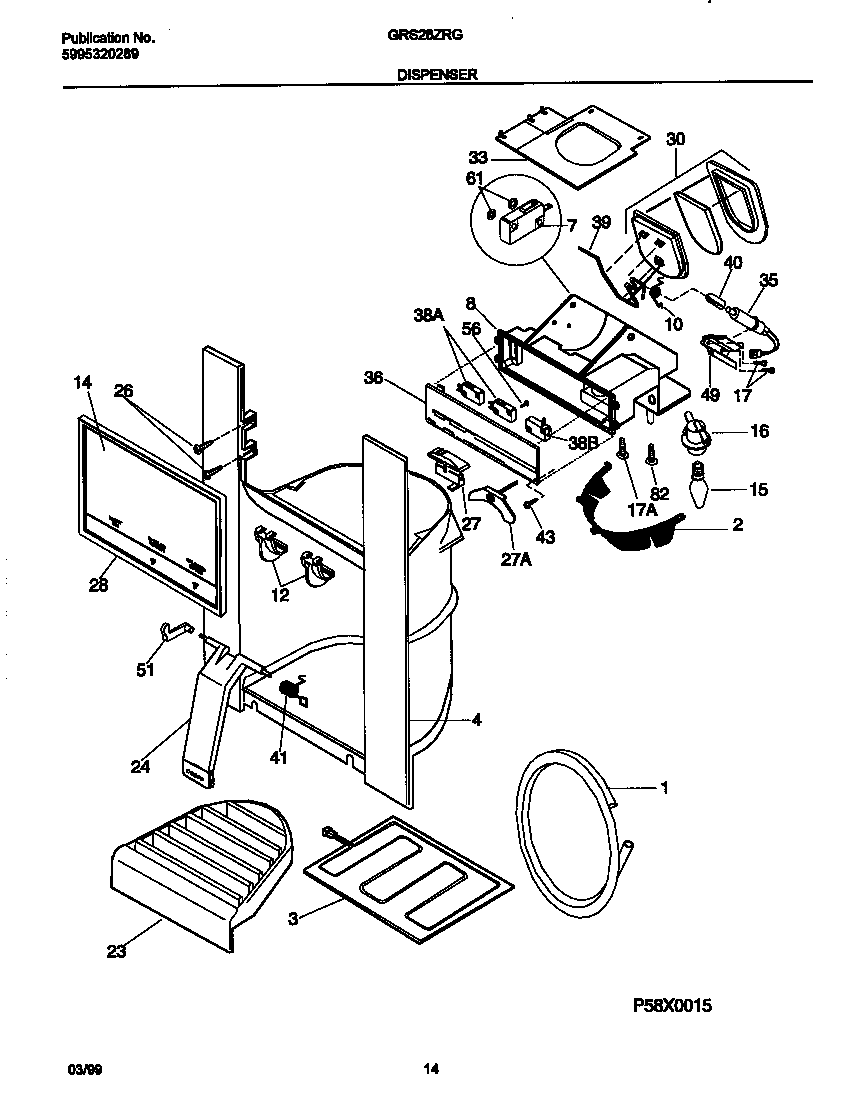

GRS26ZRGW5 08 – ICE DISPENSER

Written by

Products

Position	Product
*42730	WCI 218832301
*42729	WCI 215294101
*42732	WIRING HARNESS,DISP
*42731	WCI 215781700
1	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
2	WCI 218505301
3	WCI 215484300
4	WCI 215922301
7	WCI 218284800
8	WCI 218835701
10	WCI 218209800
12	WCI 218845901
14	WCI 218416172
15	WCI 218284900
16	240548901 Frigidaire Refrigerator P-1 Socket
17	WCI 215794400
17B	WASHER-FLAT
17A	WCI 215840700
23	WCI 215447001
24	WCI 215918001
26	215503203 Frigidaire Refrigerator Door Handle Screw
27	WCI 218432600
27	WCI 218814901
28	WCI 218713101
30	DOOR ASSY-ICE CHUTE, W/GASKET, INSUL
33	WCI 218870201
35	WCI 218740003
36	WCI 218835601
38	WCI 218479900
38	241689106 Frigidaire Refrigerator Micro Switch
39	5304401778 Frigidaire Refrigerator Ice Door Wire
40	WCI 218284500
41	WCI 215917800
43	SCREW (4)
49	WCI 215794000
51	WCI 215922200
56	WCI 218434300
61	WCI 215766000
82	WCI 215296300
