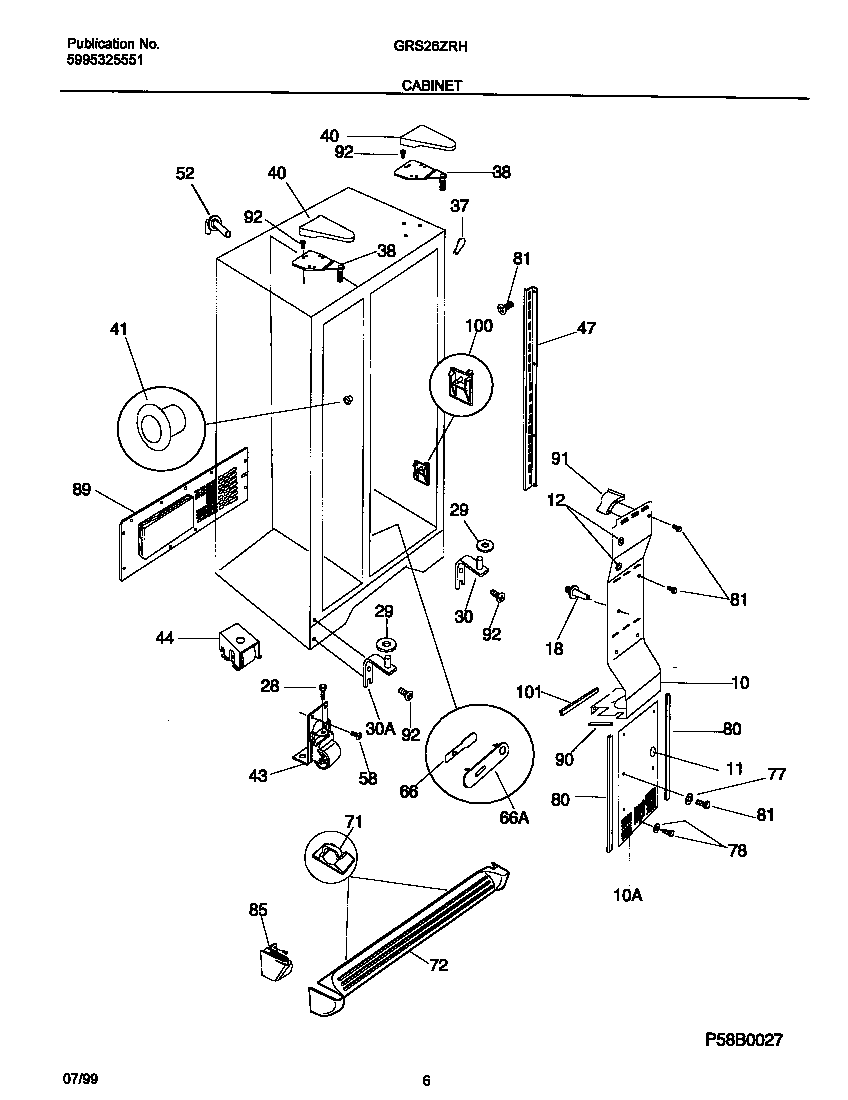

GRS26ZRHD1 04 – CABINET

GRS26ZRHD1 04 – CABINET

Written by

in

GRS26ZRHD1 04 – CABINET

Products

PositionProduct
*74364SUPPORT-AIR DUCT CVR,1.83“ LONG
*74366WCI 218871201
*74371WCI 218902101
*74365WCI 215314301
*74372WASHER, .28 X .62 X .19, NYLON
*74369SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*74370WCI 5303322647
*74363NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*74373TOUCH, UP PAINT, ALMOND (NI)
*743685304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*74367WCI 218730800
10BWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10WCI 215637602
10AWCI 215637401
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215598900
30BWCI 218730700
30WCI 215008900
30AWCI 215009100
37WCI 5303321082
38AWCI 218215222
38BWCI 218215224
40WCI 5303318774
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 215050201
66WCI 218171301
71218515401 Frigidaire Refrigerator Clip
72WCI 218359605
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218922704
89WCI 218871501
90WCI 215022602
91WCI 218770000
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101AWCI 215305702
101BWCI 218663103
