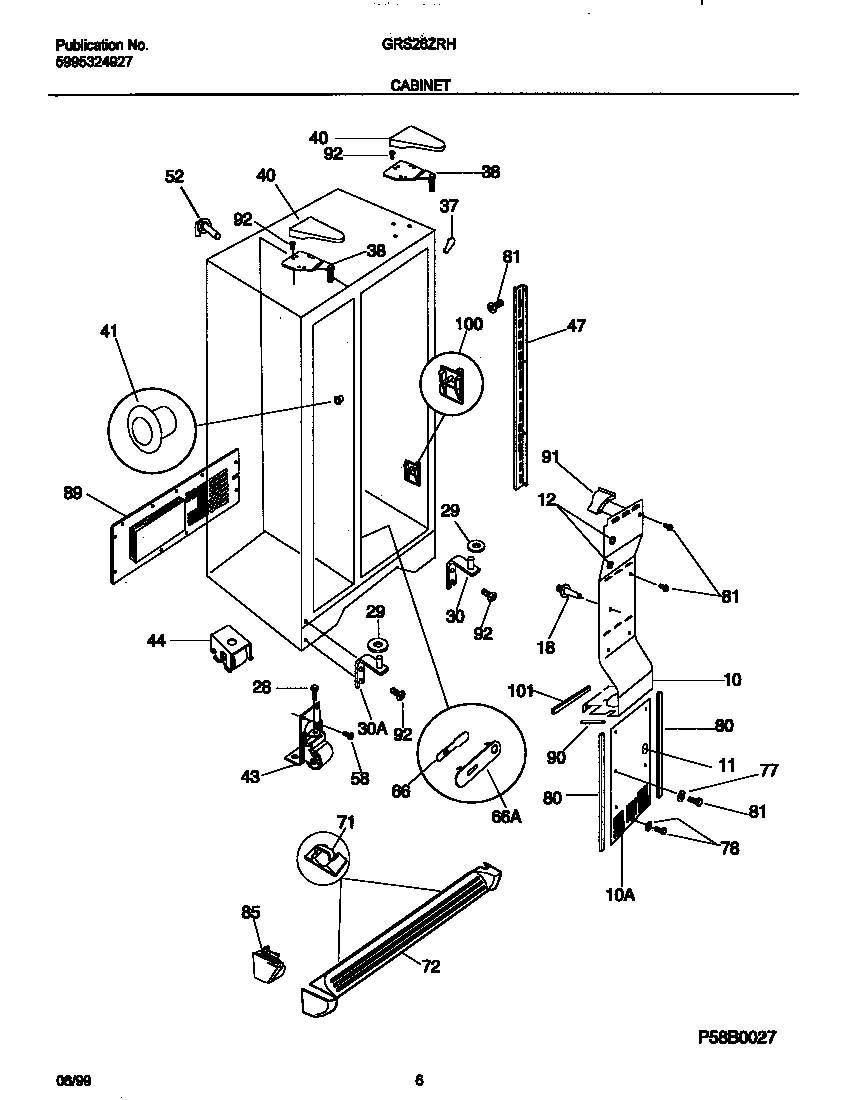

GRS26ZRHW0 04 – CABINET

GRS26ZRHW0 04 – CABINET

Written by

in

GRS26ZRHW0 04 – CABINET

Products

PositionProduct
*48523SUPPORT-AIR DUCT CVR,1.83“ LONG
*48525WCI 218871201
*48530WCI 218902101
*48524WCI 215314301
*48528SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*48529WCI 5303322647
*48522NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*48526WCI 218730800
*485325303321319 Frigidaire Refrigerator White Touch Up Paint
*48531WASHER, .28 X .62 X .19, NYLON
*485275304500407 Frigidaire Refrigerator Shelf Mounting Grommet
10WCI 215637602
10BWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10AWCI 215637401
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215598900
30BWCI 218730700
30WCI 215008900
30AWCI 215009100
37WCI 5303321081
38AWCI 218215217
38BWCI 218215219
40WCI 5303318773
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
71218515401 Frigidaire Refrigerator Clip
72WCI 218359601
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218359802
89WCI 218871501
90WCI 215022602
91WCI 218770000
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101AWCI 215305702
101BWCI 218663103
