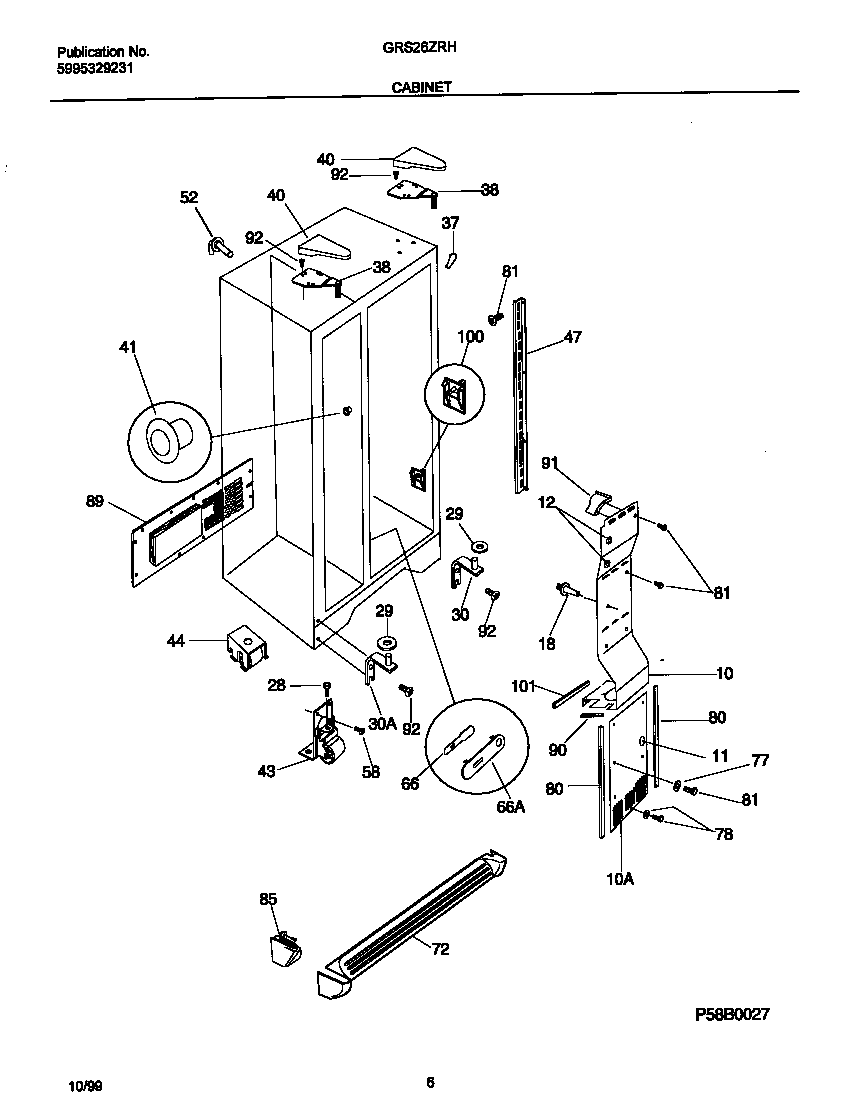

GRS26ZRHW2 04 – CABINET

GRS26ZRHW2 04 – CABINET

Written by

in

GRS26ZRHW2 04 – CABINET

Products

PositionProduct
*96490WCI 5303322647
*96486WCI 218871201
*96491WCI 218902101
*96487WCI 218730800
*96485WCI 215314301
*96492WASHER, .28 X .62 X .19, NYLON
*96489SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*96484SUPPORT-AIR DUCT CVR,1.83“ LONG
*96483NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*964935303321319 Frigidaire Refrigerator White Touch Up Paint
*964885304500407 Frigidaire Refrigerator Shelf Mounting Grommet
10BWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10AWCI 215637401
10WCI 215637602
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215598900
30AWCI 215009100
30WCI 215008900
30BWCI 218730700
37WCI 5303321081
38BWCI 218215219
38AWCI 218215217
40WCI 5303318773
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
72WCI 218359601
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218922702
89WCI 218871501
90WCI 215022602
91WCI 218770000
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101BWCI 218663103
101AWCI 215305702
