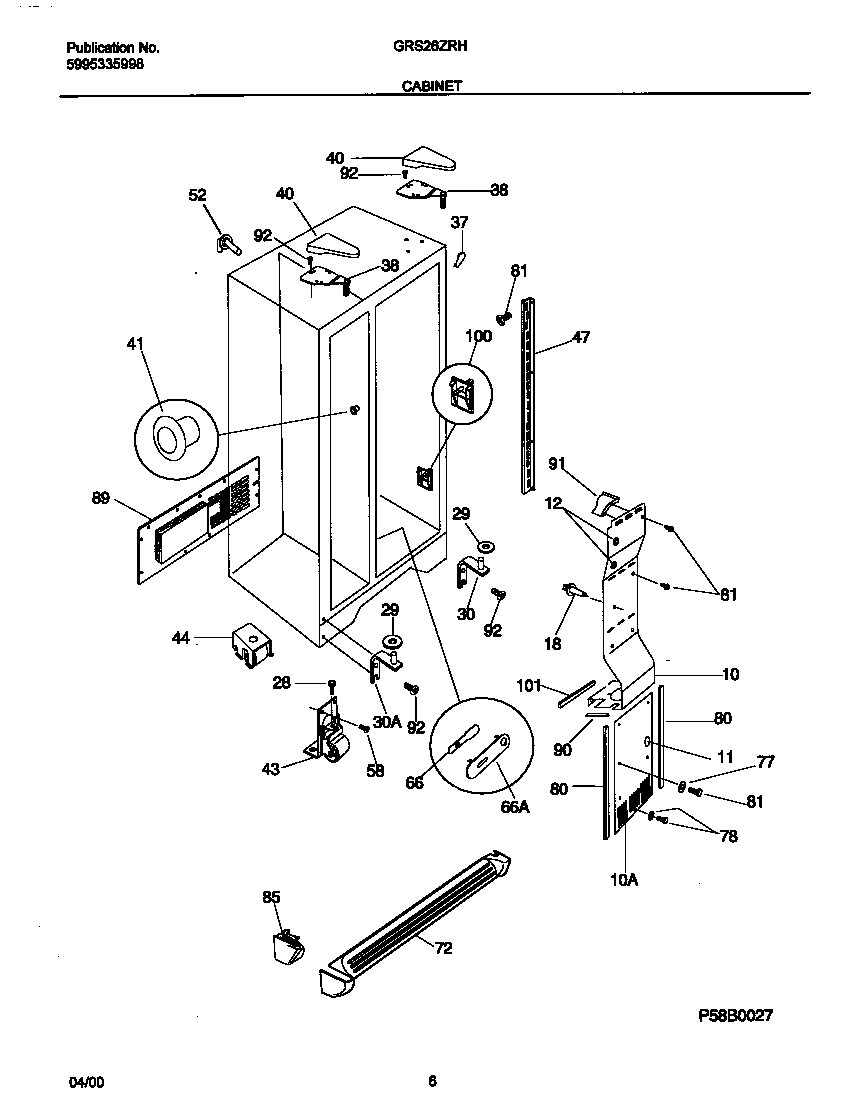

GRS26ZRHW3 04 – CABINET

GRS26ZRHW3 04 – CABINET

Written by

in

GRS26ZRHW3 04 – CABINET

Products

PositionProduct
*86250WCI 5303322647
*86252WASHER, .28 X .62 X .19, NYLON
*86249SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*86244SUPPORT-AIR DUCT CVR,1.83“ LONG
*86243NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*86251WCI 218902101
*86245WCI 215314301
*86247WCI 218979601
*862485304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*862545303321319 Frigidaire Refrigerator White Touch Up Paint
*86246WCI 218871201
10WCI 215637602
10AWCI 215637401
10BWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215598900
30AWCI 215009100
30BWCI 218979701
30WCI 215008900
37WCI 5303321081
38BWCI 218215247
38AWCI 218215245
40WCI 5303318773
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
72WCI 218359601
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218922702
89WCI 218871501
90WCI 215022602
91WCI 218964701
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101BWCI 218663103
101AWCI 215305702
