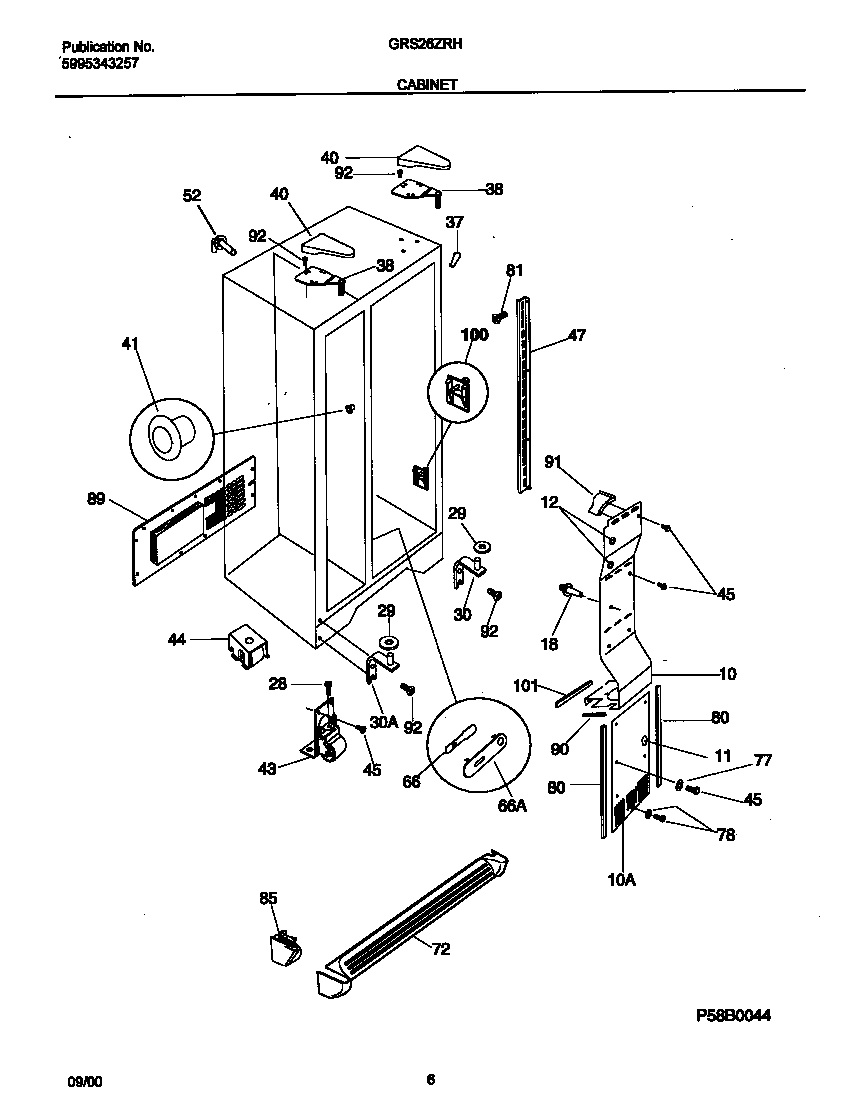

GRS26ZRHW5 04 – CABINET

GRS26ZRHW5 04 – CABINET

Written by

in

GRS26ZRHW5 04 – CABINET

Products

PositionProduct
*70569WCI 5303322647
*70564WCI 215314301
*70568SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*70563SUPPORT-AIR DUCT CVR,1.83“ LONG
*70562NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*70570WCI 218902101
*70565WCI 218871201
*70566WCI 218979601
*705675304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*705725303321319 Frigidaire Refrigerator White Touch Up Paint
10BWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10WCI 215637602
10AWCI 215637402
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215598900
30AWCI 218993601
30WCI 218993801
30BWCI 218979701
37WCI 5303321081
38AWCI 218215245
38BWCI 218215247
40WCI 5303318773
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
455304455651 Frigidaire Refrigerator Screw
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
72WCI 218359601
77WASHER-NYLON,3/16 X 5/8 OD
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218922702
89WCI 218871501
90WCI 215022602
91WCI 218964701
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101AWCI 215305702
101BWCI 218663103
