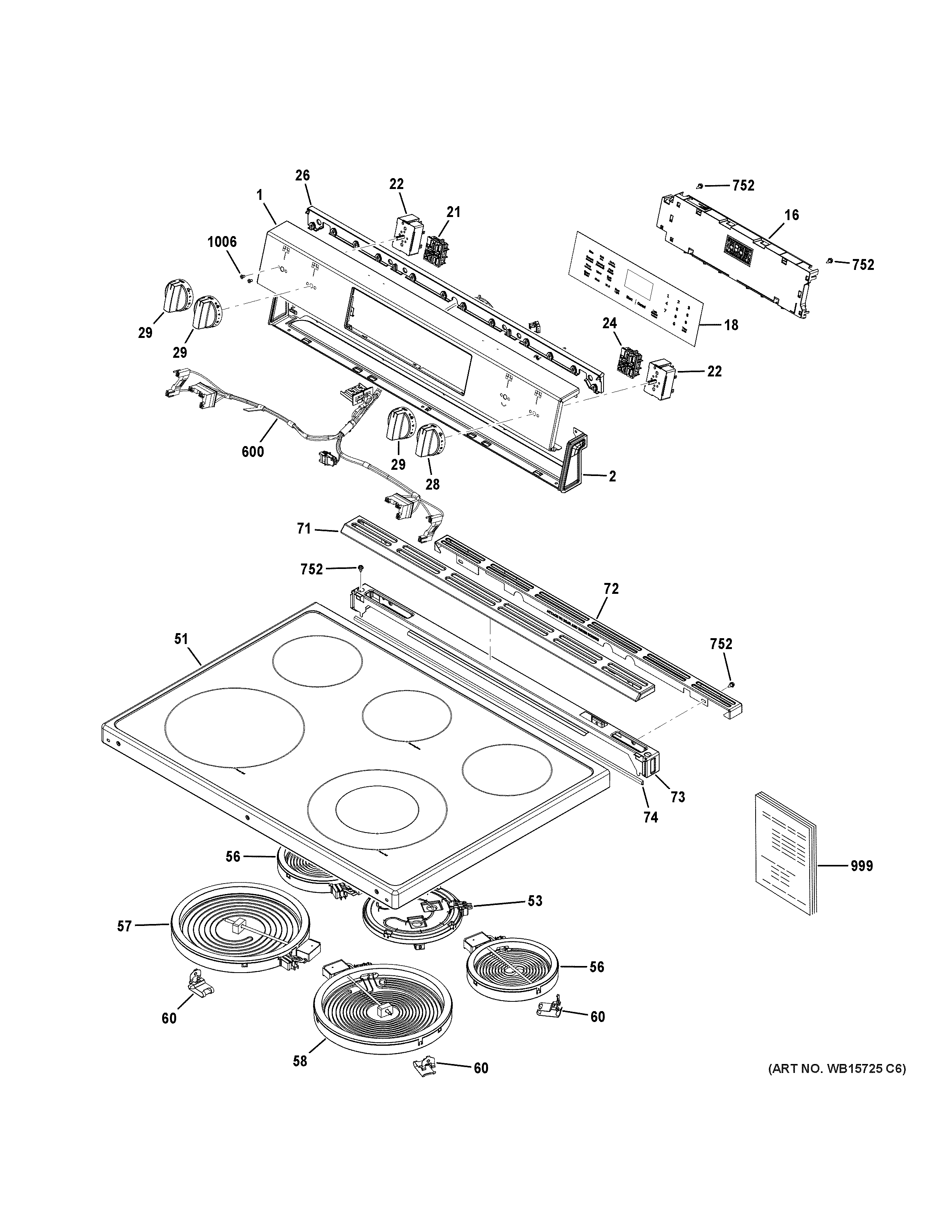

GRS500PV1SS CONTROL PANEL & COOKTOP

GRS500PV1SS CONTROL PANEL & COOKTOP

Written by

in

GRS500PV1SS CONTROL PANEL & COOKTOP

Products

PositionProduct
1CONTROL PANEL-STAINLESS
2CONTROL PANEL LOWER BLACK
16WB27X48615 GE Dishwasher Control (Flashed)
18WB07X47351 GE Overlay
21WB24X37345 GE Infinite Control Switch
22WB24T10022 GE Oven Infinite Switch
24WB24X25013 GE Oven Control Infinite Switch
26CONTROL PANEL FILLER
28WB03X47126 GE Knob
29WB03X47119 GE Knob
51MAINTOP
53WARMER ELEMENT
56WB30X47331 GE 5.5-Inch Radiant Element
579 IN RADIANT ELEMENT
58RADIANT ELEMENT 9 IN DUAL
60RETAINER CLIP
71UPPER VENT TRIM- BLACK
72VENT TRIM- BLACK
73LOWER VENT TRIM
74VENT TRIM GASKET
600MAINTOP HARNESS
752WH2X930 GE Screw
999PM OWNERS MANUAL
999PM MINI MANUAL AND WIRING
999PM INSTALL INSTRUCTIONS
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
