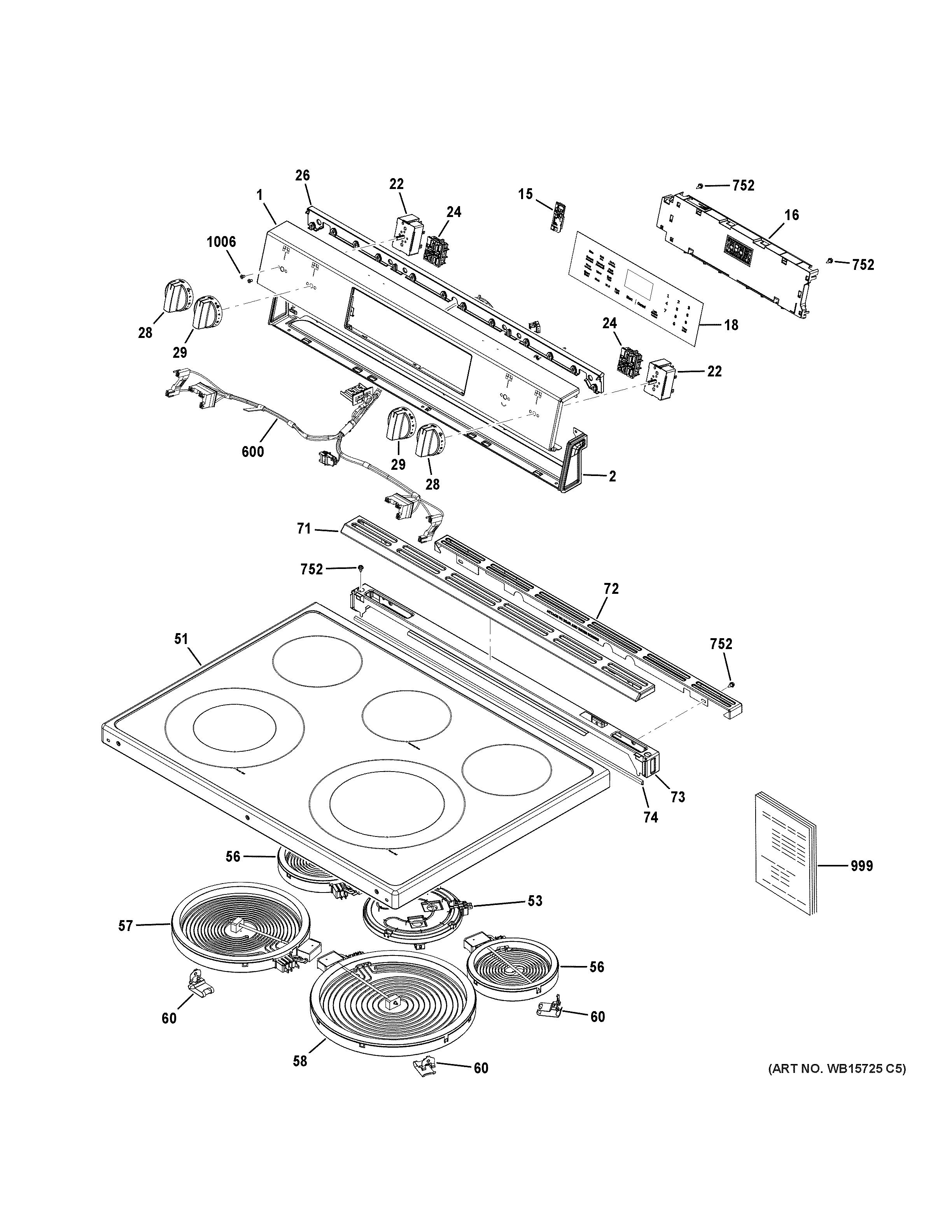

GRS600AV1WW CONTROL PANEL & COOKTOP

Products

PositionProduct
1CONTROL PANEL-WHITE
2FRONT CONTROL PANEL WHITE
15WB27X45808 GE Wi-Fi Bluetooth Combo Board
16OBC2 CONTROL – FLASHED
18OVERLAY
22WB24T10022 GE Oven Infinite Switch
24WB24X25013 GE Oven Control Infinite Switch
26CONTROL PANEL FILLER
28KNOB
29KNOB
51MAINTOP
53WARMER ELEMENT
56WB30X47331 GE 5.5-Inch Radiant Element
57RADIANT ELEMENT 9 IN DUAL
58WB30X47328 GE 12-Inch Dual Radiant Element
60RETAINER CLIP
71VENT TRIM-WHITE
72VENT TRIM-WHITE
73LOWER VENT TRIM-BLACK
74VENT TRIM GASKET
600MAINTOP HARNESS
752WH2X930 GE Screw
999PM OWNERS MANUAL
999PM MINI MANUAL AND WIRING
999PM INSTALL INSTRUCTIONS
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
