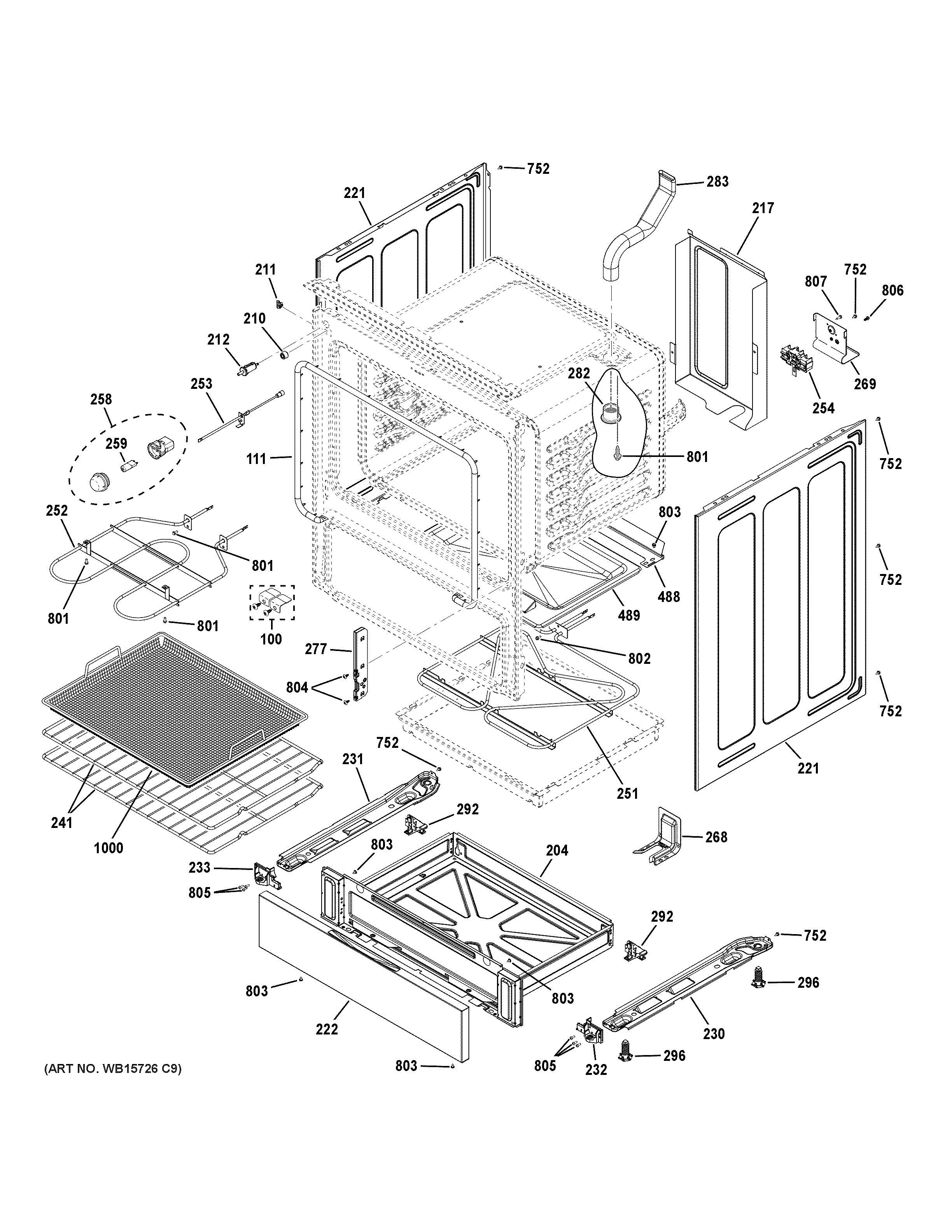

GRS60LAV1FS BODY PARTS

Products

Position	Product
100	CAVITY CHIP COVER KIT
111	DOOR GASKET
204	DRAWER BODY
210	BUMPER
211	GROMMET
212	WB24X27550 GE Oven Plunger Switch
217	TERMINAL COVER
221	SIDE PANEL-BLACK
222	DRAWER PANEL-STAINLESS
230	RAIL BASE RH
231	RAIL BASE LH
232	WB02X47103 GE Drawer Support
233	WB02X47107 GE Left Drawer Support
241	RACK
251	WB44X47327 GE Bake Element Hidden
252	BROIL ELEMENT
253	OVEN TEMP SEMSOR
254	TERMINAL BLOCK
258	WB25X42688 GE Halogen Lamp Assembly
259	WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
268	ANTI-TIP BRACKET
269	TERMINAL BLOCK BRACKET
277	HINGE RECEIVER
282	VENT TUBE
283	VENT TUBE
292	REAR DRAWER GUIDE
296	WB02X10521 GE Oven Leveling Leg
488	VENT TRIM-BACK
489	OVEN CAVITY BOTTOM
752	WH2X930 GE Screw
801	SCREW
802	WB1X536 GE Oven Screw
803	WB01X48946 GE Screw 8-18 AB Trt-15 3/8"
804	SCR 10-32 TRWT-20 1/2 S
805	WB01X34726 GE Screw 8-18 Ab Pnt-20
806	WS02X10087 GE Screws 10-32 GX HXW 7/16 S
807	GEN WB01T10125
1000	AIRFRY BASKET
