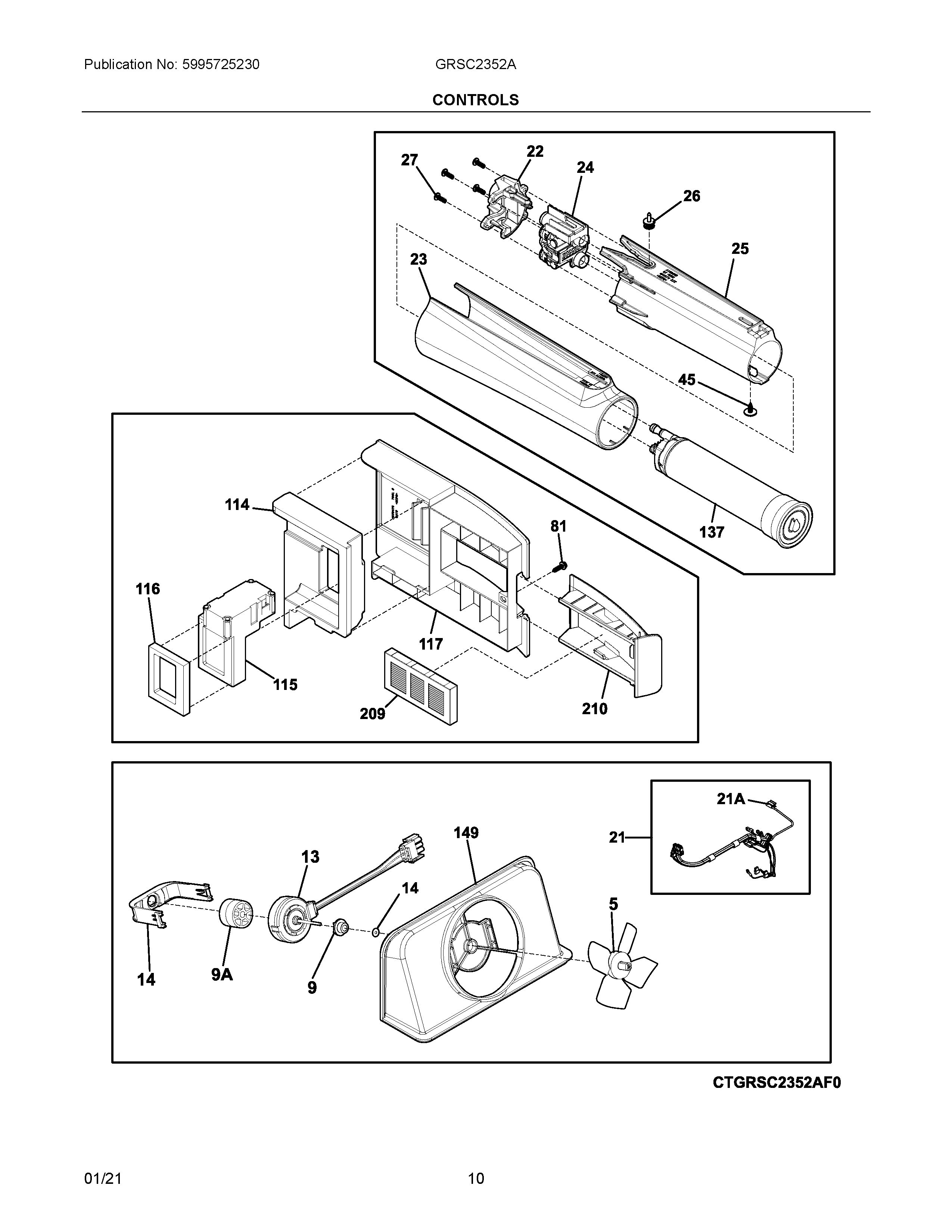

GRSC2352AD0 06 – CONTROLS

Products

Position	Product
NI	242220119 Frigidaire Refrigerator Water Tube
NI	242220126 Frigidaire Refrigerator Tube
NI	242200102 Frigidaire Refrigerator Clip
5	242219302 Frigidaire Refrigerator Evaporator Fan Blade
9A	241845301 Frigidaire Refrigerator Motor Mounting Bushing
9	241563601 Frigidaire Refrigerator Motor Mounting Bushing
13	MOTOR
14	215474201 Frigidaire Refrigerator Washer
15	242135301 Frigidaire Refrigerator Evaporator Motor Clip, Freezer
21A	5303918645 Frigidaire Refrigerator Thermistor Kit
21	5304526980 Frigidaire Refrigerator Assembly Harness
22	5304526050 Frigidaire Refrigerator Base
23	5304526051 Frigidaire Refrigerator Cover
24	5304524817 Frigidaire Water Filter Head Manifold
25	5304526053 Frigidaire Water Filter Housing Assembly
26	242039702 Frigidaire Refrigerator Screw
27	5304453707 Frigidaire Oven Screw
45	241500303 Frigidaire Refrigerator Screw
81	218843801 Frigidaire Refrigerator Screw
114	5304525913 Frigidaire Refrigerator Insulation
115	5303918899 Frigidaire Damper Control Assembly
116	241518601 Frigidaire Refrigerator Damper Seal
117	5304525914 Frigidaire Refrigerator Cover
137	FPPWFU01 Frigidaire Refrigerator PurePour Water Filter
149	5304521275 Frigidaire Refrigerator Evaporator Fan Mounting Shroud
209	PAULTRA2 Frigidaire Pure Air Ultra 2 Filter
210	5304525915 Frigidaire Refrigerator Housing
