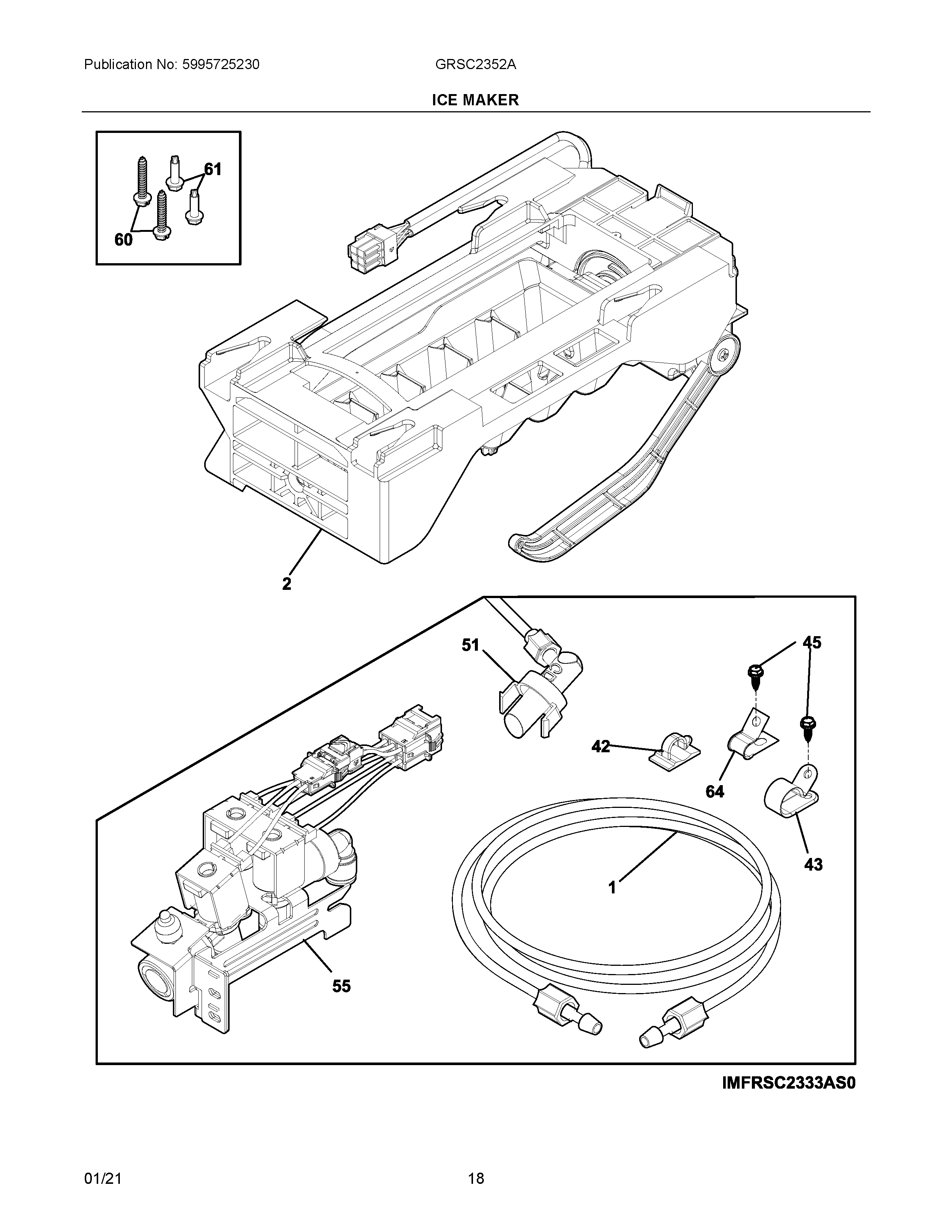

GRSC2352AD0 10 – ICE MAKER

GRSC2352AD0 10 – ICE MAKER

Written by

in

GRSC2352AD0 10 – ICE MAKER

Products

PositionProduct
NI241806601 Frigidaire Refrigerator Water Connector
NI242200102 Frigidaire Refrigerator Clip
NIB240363602 Frigidaire Refrigerator Shoulder Screw
NIA218976421 Frigidaire Refrigerator Water Inlet Tube
NIC242220119 Frigidaire Refrigerator Water Tube
NIB218976822 Frigidaire Refrigerator Water Tube
NID242220126 Frigidaire Refrigerator Tube
NIA218709101 Frigidaire Refrigerator Handle Mounting Screw
NI240396801 Frigidaire Refrigerator Tube Clamp
NI5304521770 Frigidaire Refrigerator Harness
1218976438 Frigidaire Refrigerator Tube
2243297613 Frigidaire Refrigerator Ice Maker
42218515401 Frigidaire Refrigerator Clip
43CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL
455308000039 Frigidaire Refrigerator Screw
51241850619 Frigidaire Refrigerator Tube Assembly
55WATER VALVE, TRIPE SOLENOID
605304455852 Frigidaire Refrigerator Screw
61241853202 Frigidaire Refrigerator Screw
645304455846 Frigidaire Refrigerator Clamp
