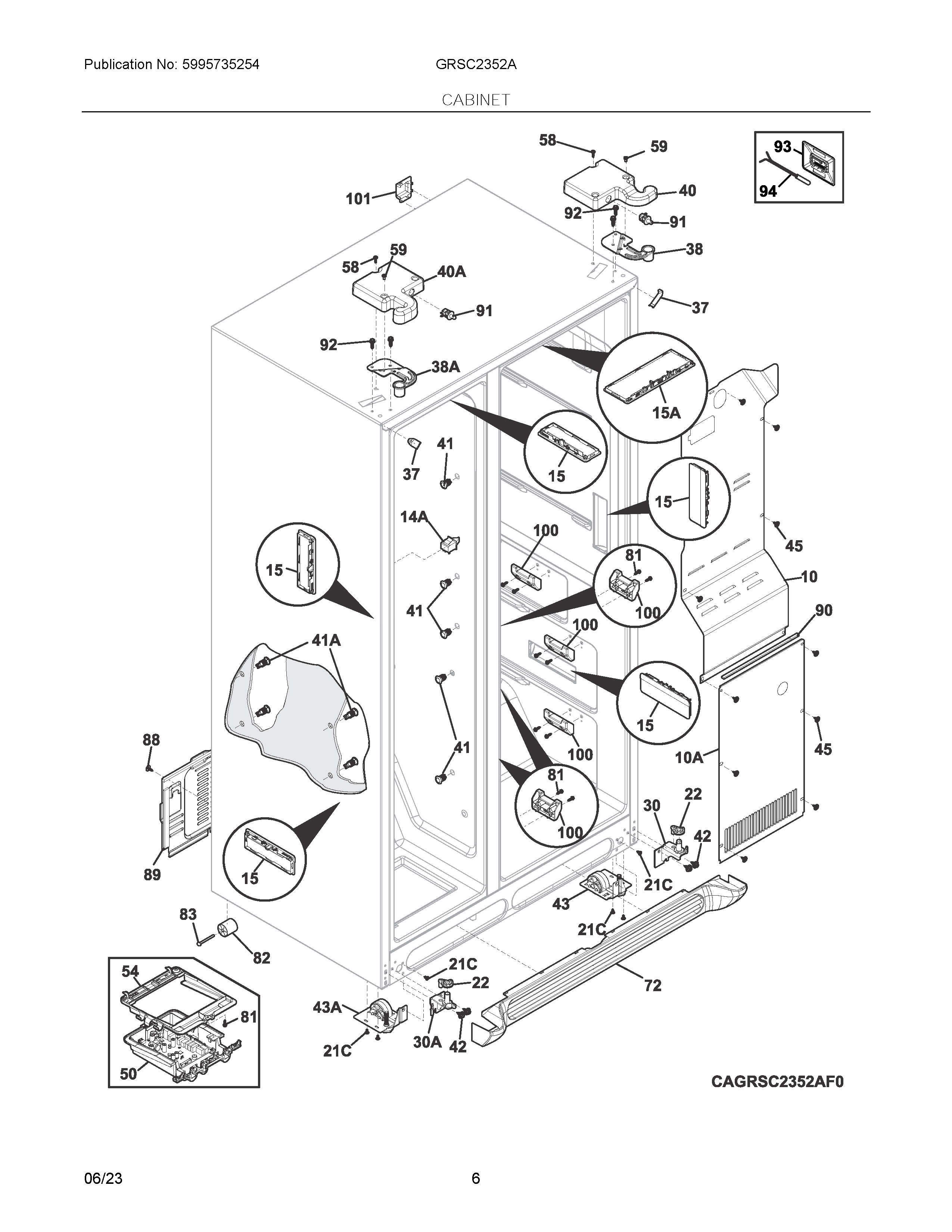

GRSC2352AD1 04 – CABINET

GRSC2352AD1 04 – CABINET

Written by

in

GRSC2352AD1 04 – CABINET

Products

Position	Product
NIA	241853202 Frigidaire Refrigerator Screw
NI	CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL
NI	808835601 Frigidaire Refrigerator Harness
NI	5304414863 Frigidaire Graphite Paint
10A	808217502 Frigidaire Evaporator Coil Cover
10	808165003 Frigidaire Refrigerator Air Duct Cover
14A	241547902 Frigidaire Refrigerator Light Switch
15	5304530711 Frigidaire Refrigerator Light Assembly
15A	5304530715 Frigidaire Refrigerator Assembly Light
21C	218252201 Frigidaire Refrigerator Screw
22	241917801 Frigidaire Refrigerator Closer Plate
30A	241918004 Frigidaire Lower Hinge Bracket
30	241918001 Frigidaire Lower Door Hinge
37	5304519617 Frigidaire Refrigerator Cabinet Corner Trim
38A	241761302 Frigidaire Refrigerator Bracket-Upper Hinge
38	241761301 Frigidaire Upper Bracket Hinge
40A	241946706 Frigidaire Refrigerator Upper Hinge Cover
40	241946705 Frigidaire Refrigerator Upper Hinge Cover
41	241550701 Frigidaire Refrigerator Grommet-Shelf Mtg
41A	241550801 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43A	5304525902 Frigidaire Refrigerator Roller Assembly
43	5304525901 Frigidaire Refrigerator Roller Assembly
45	241500303 Frigidaire Refrigerator Screw
50	5304526864 Frigidaire Refrigerator Power Board
54	807854301 Frigidaire Refrigerator Support
58	218781101 Frigidaire Handle Screw
59	241548003 Frigidaire Refrigerator Screw
72	241969403 Frigidaire Refrigerator Kickplate/Grille
81	5304455650 Frigidaire Refrigerator Screw
82	240335202 Frigidaire Refrigerator Roller
83	5304455655 Frigidaire Refrigerator Rivet
88	241500305 Frigidaire Refrigerator Screw
89	5304520905 Frigidaire Assembly Cover Refrigerator
90	218249810 Frigidaire Coil Seal
91	241911709 Frigidaire Refrigerator Switch
92	241710601 Frigidaire Refrigerator Screw
93	5304508041 Frigidaire Refrigerator Cover
94	5303918775 Frigidaire Refrigerator Thermistor
100	5304525909 Frigidaire Refrigerator Support
101	242157801 Frigidaire Refrigerator Cover
