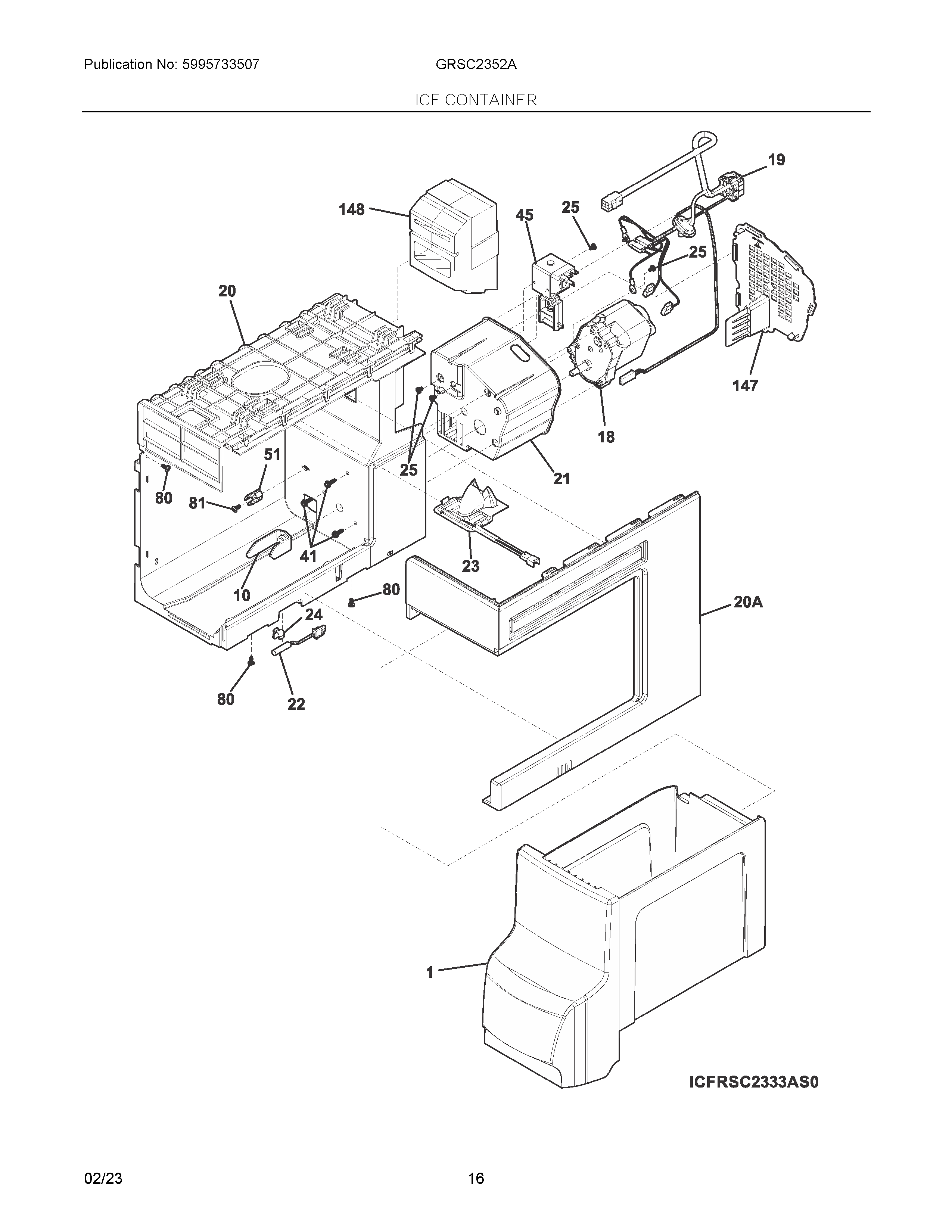

GRSC2352AD2 09 – ICE CONTAINER

GRSC2352AD2 09 – ICE CONTAINER

Written by

in

GRSC2352AD2 09 – ICE CONTAINER

Products

PositionProduct
NI218515401 Frigidaire Refrigerator Clip
15304526873 Frigidaire Refrigerator Ice Container Assembly
10241829002 Frigidaire Refrigerator Drive Bar
185304527039 Frigidaire Refrigerator Motor
195304521770 Frigidaire Refrigerator Harness
20A242303701 Frigidaire Refrigerator Housing
20242303501 Frigidaire Refrigerator Housing
21242305203 Frigidaire Refrigerator Motor-Cover Housing
22240597220 Frigidaire Sensor
235304504455 Frigidaire Refrigerator Fill Cup
24241519401 Frigidaire Refrigerator Clip
25218359202 Frigidaire Refrigerator Screw
41240555005 Frigidaire Refrigerator Screw
45241675705 Frigidaire Refrigerator Solenoid
51242095501 Frigidaire Refrigerator Anti-Twist Buck Pin
80241953902 Frigidaire Refrigerator Screw
81241953908 Frigidaire Refrigerator Screw
1475304504451 Frigidaire Refrigerator Motor
1485304504447 Frigidaire Refrigerator Duct Air
