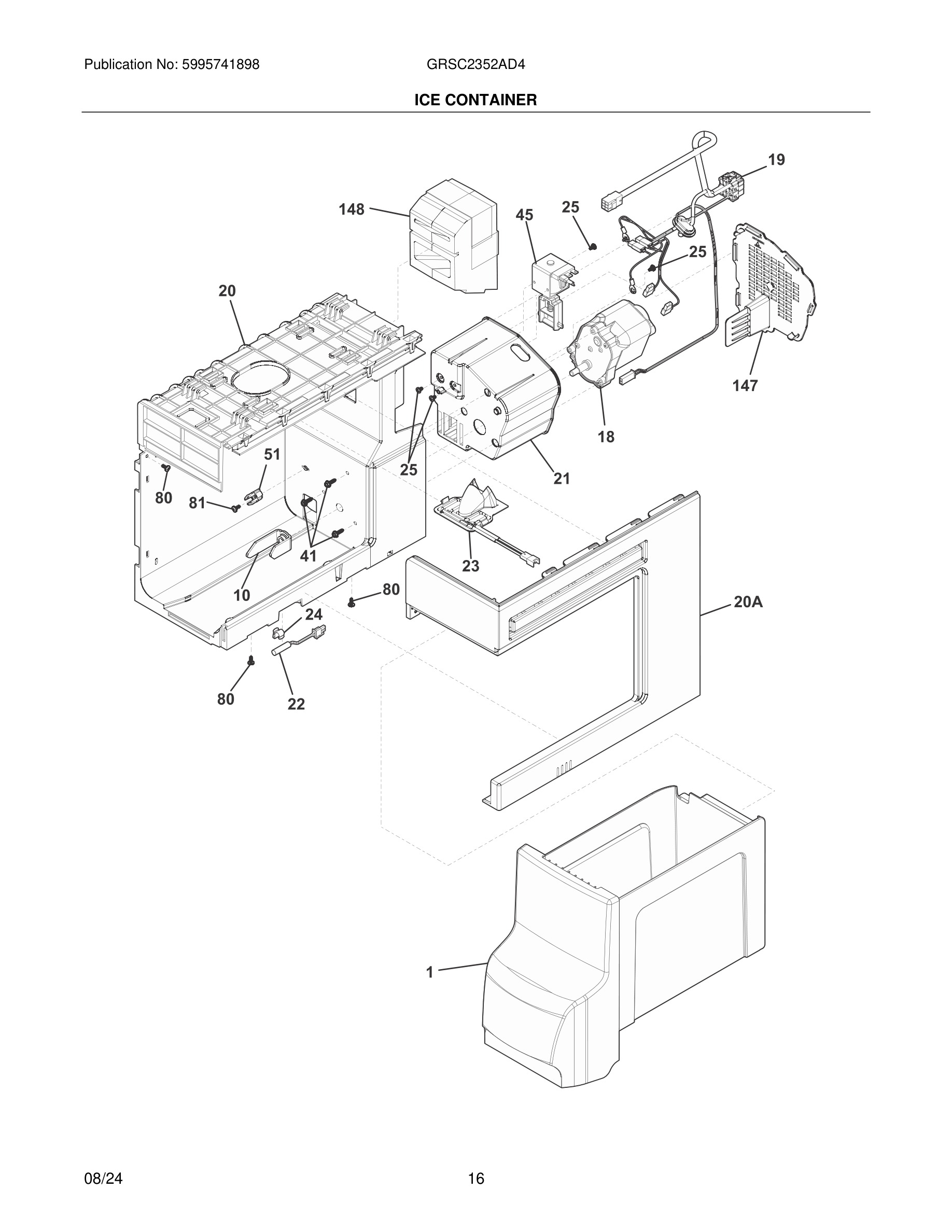

GRSC2352AD4 17 – ICE CONTAINER

GRSC2352AD4 17 – ICE CONTAINER

Written by

in

GRSC2352AD4 17 – ICE CONTAINER

Products

PositionProduct
*218515401 Frigidaire Refrigerator Clip
1#5304526873 Frigidaire Refrigerator Ice Container Assembly
10241829002 Frigidaire Refrigerator Drive Bar
18#5304527039 Frigidaire Refrigerator Motor
19#5304521770 Frigidaire Refrigerator Harness
20A242303701 Frigidaire Refrigerator Housing
20242303501 Frigidaire Refrigerator Housing
21242305203 Frigidaire Refrigerator Motor-Cover Housing
22240597220 Frigidaire Sensor
235304504455 Frigidaire Refrigerator Fill Cup
24241519401 Frigidaire Refrigerator Clip
25218359202 Frigidaire Refrigerator Screw
41240555005 Frigidaire Refrigerator Screw
45#241675705 Frigidaire Refrigerator Solenoid
51242095501 Frigidaire Refrigerator Anti-Twist Buck Pin
80241953902 Frigidaire Refrigerator Screw
81241953908 Frigidaire Refrigerator Screw
1475304504451 Frigidaire Refrigerator Motor
1485304504447 Frigidaire Refrigerator Duct Air
