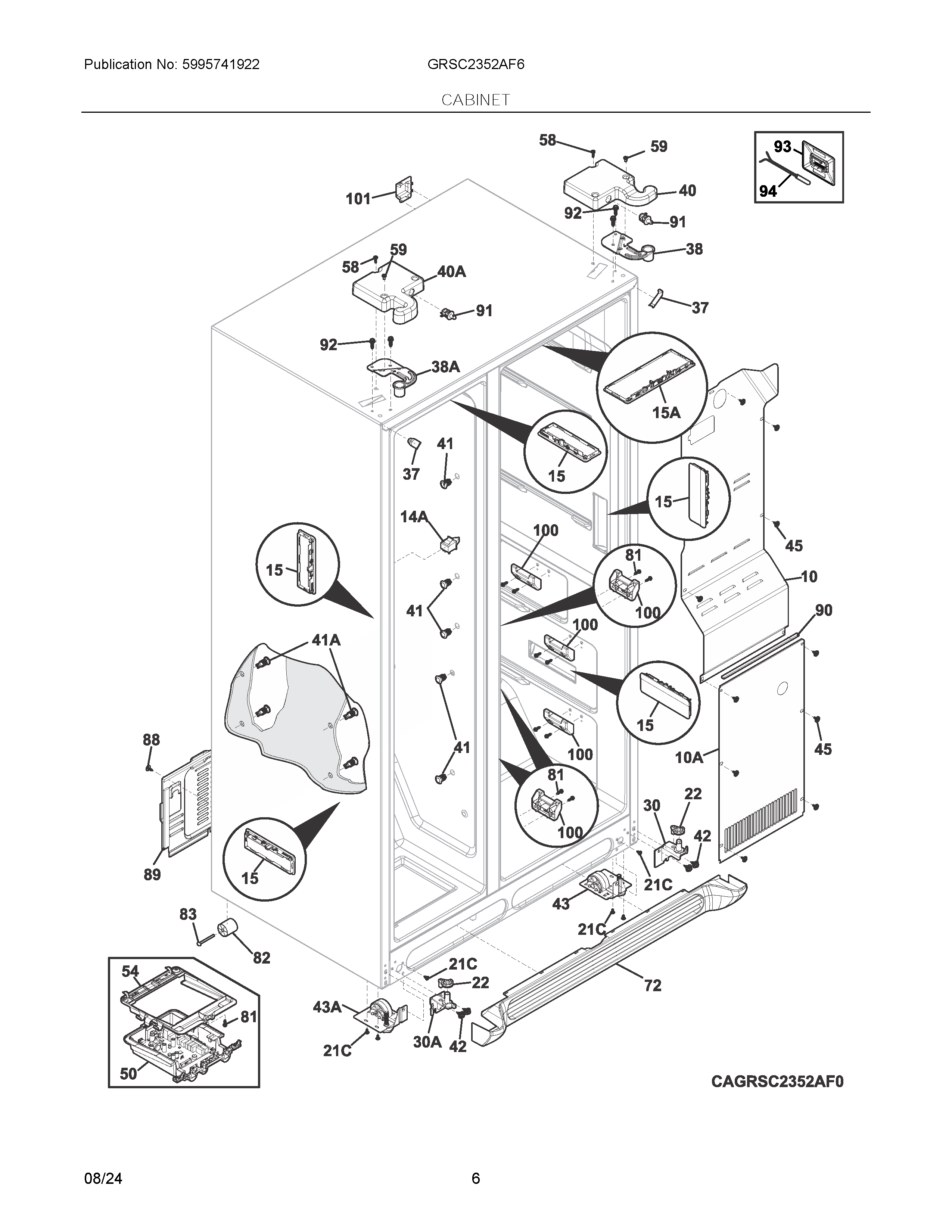

GRSC2352AF6 04 – CABINET

GRSC2352AF6 04 – CABINET

Written by

in

GRSC2352AF6 04 – CABINET

Products

PositionProduct
NI5304414863 Frigidaire Graphite Paint
NICLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL
NIA241853202 Frigidaire Refrigerator Screw
NIA808835601 Frigidaire Refrigerator Harness
10808165003 Frigidaire Refrigerator Air Duct Cover
10A808217502 Frigidaire Evaporator Coil Cover
14A241547902 Frigidaire Refrigerator Light Switch
15A5304530715 Frigidaire Refrigerator Assembly Light
155304530711 Frigidaire Refrigerator Light Assembly
21C218252201 Frigidaire Refrigerator Screw
22241917801 Frigidaire Refrigerator Closer Plate
30A241918004 Frigidaire Lower Hinge Bracket
30241918001 Frigidaire Lower Door Hinge
375304519618 Frigidaire Refrigerator Cabinet Corner Trim
38A241761302 Frigidaire Refrigerator Bracket-Upper Hinge
38241761301 Frigidaire Upper Bracket Hinge
40A241946710 Frigidaire Refrigerator Upper Hinge Cover
40241946709 Frigidaire Refrigerator Upper Hinge Cover
41A241550801 Frigidaire Refrigerator Shelf Mounting Grommet
41241550701 Frigidaire Refrigerator Grommet-Shelf Mtg
42240578902 Frigidaire Screw Mounting Hinge
435304525901 Frigidaire Refrigerator Roller Assembly
43A5304525902 Frigidaire Refrigerator Roller Assembly
45241500303 Frigidaire Refrigerator Screw
505304526864 Frigidaire Refrigerator Power Board
54SUPPORT, HOUSING, MAIN BOARD
58218843801 Frigidaire Refrigerator Screw
72241969405 Frigidaire Grille/Kickplate
81134154100 Frigidaire Screw 10-32 x 0.375 Co
82240335202 Frigidaire Refrigerator Roller
835304455655 Frigidaire Refrigerator Rivet
88241500305 Frigidaire Refrigerator Screw
895304520905 Frigidaire Assembly Cover Refrigerator
90218249808 Frigidaire Refrigerator Seal-Coil Cover
91241911710 Frigidaire Refrigerator Switch
92241710601 Frigidaire Refrigerator Screw
935304508041 Frigidaire Refrigerator Cover
945303918775 Frigidaire Refrigerator Thermistor
1005304525909 Frigidaire Refrigerator Support
101242157801 Frigidaire Refrigerator Cover
