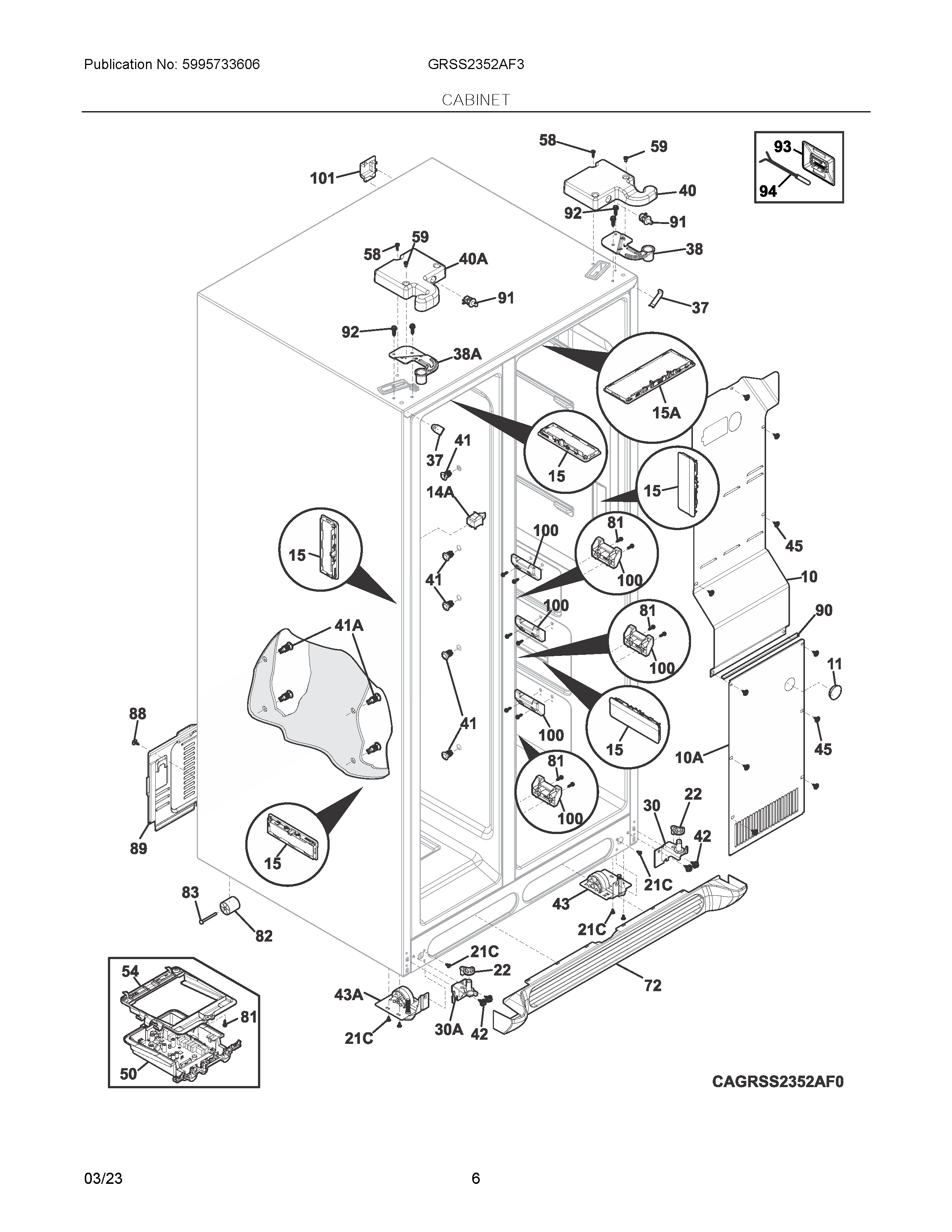

GRSS2352AF3 04 – CABINET

GRSS2352AF3 04 – CABINET

Written by

in

GRSS2352AF3 04 – CABINET

Products

Position	Product
NIA	241853202 Frigidaire Refrigerator Screw
NI	5304414863 Frigidaire Graphite Paint
NIA	808835601 Frigidaire Refrigerator Harness
NI	CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL
10A	241719710 Frigidaire Refrigerator Cover-Evaporator
10	COVER-AIR DUCT
11	5303208309 Frigidaire Refrigerator Plug Hole
14A	241547902 Frigidaire Refrigerator Light Switch
15A	5304530715 Frigidaire Refrigerator Assembly Light
15	5304530711 Frigidaire Refrigerator Light Assembly
21C	218252201 Frigidaire Refrigerator Screw
22	241917801 Frigidaire Refrigerator Closer Plate
30A	241918004 Frigidaire Lower Hinge Bracket
30	241918001 Frigidaire Lower Door Hinge
37	5304519618 Frigidaire Refrigerator Cabinet Corner Trim
38A	241761302 Frigidaire Refrigerator Bracket-Upper Hinge
38	241761301 Frigidaire Upper Bracket Hinge
40A	241946710 Frigidaire Refrigerator Upper Hinge Cover
40	241946709 Frigidaire Refrigerator Upper Hinge Cover
41	241550701 Frigidaire Refrigerator Grommet-Shelf Mtg
41A	241550801 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304525901 Frigidaire Refrigerator Roller Assembly
43A	5304525902 Frigidaire Refrigerator Roller Assembly
45	241500303 Frigidaire Refrigerator Screw
50	5304534593 Frigidaire Board-Main 2507
54	807854301 Frigidaire Refrigerator Support
58	218781101 Frigidaire Handle Screw
59	241548003 Frigidaire Refrigerator Screw
72	241972905 Frigidaire Refrigerator Kickplate Grille Assembly
81	5304455650 Frigidaire Refrigerator Screw
82	240335202 Frigidaire Refrigerator Roller
83	5304455655 Frigidaire Refrigerator Rivet
88	241500305 Frigidaire Refrigerator Screw
89	5304521676 Frigidaire Cover Assembly
90	218249808 Frigidaire Refrigerator Seal-Coil Cover
91	241911710 Frigidaire Refrigerator Switch
92	241710601 Frigidaire Refrigerator Screw
93	5304508041 Frigidaire Refrigerator Cover
94	5303918775 Frigidaire Refrigerator Thermistor
100	5304525909 Frigidaire Refrigerator Support
101	242157801 Frigidaire Refrigerator Cover
