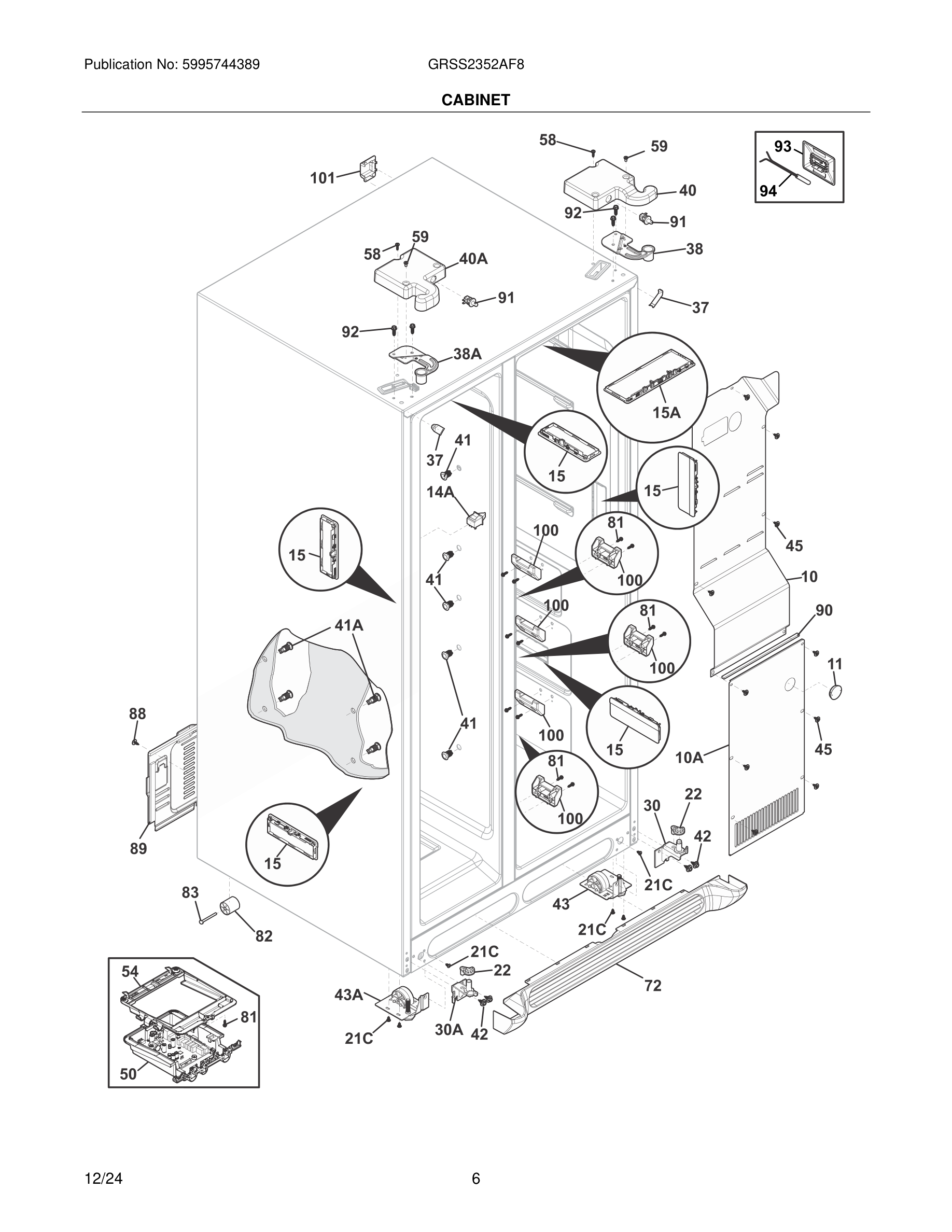

GRSS2352AF8 07 – CABINET

GRSS2352AF8 07 – CABINET

Written by

in

GRSS2352AF8 07 – CABINET

Products

PositionProduct
*5304414863 Frigidaire Graphite Paint
*CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL
10COVER-AIR DUCT
10ACOVER-COIL
115303208309 Frigidaire Refrigerator Plug Hole
14A#241547902 Frigidaire Refrigerator Light Switch
15#5304530711 Frigidaire Refrigerator Light Assembly
15A#5304530715 Frigidaire Refrigerator Assembly Light
21C218252201 Frigidaire Refrigerator Screw
22241917801 Frigidaire Refrigerator Closer Plate
30A241918004 Frigidaire Lower Hinge Bracket
30241918001 Frigidaire Lower Door Hinge
375304519618 Frigidaire Refrigerator Cabinet Corner Trim
38A241761302 Frigidaire Refrigerator Bracket-Upper Hinge
38241761301 Frigidaire Upper Bracket Hinge
40241946709 Frigidaire Refrigerator Upper Hinge Cover
40A241946710 Frigidaire Refrigerator Upper Hinge Cover
41241550701 Frigidaire Refrigerator Grommet-Shelf Mtg
41A241550801 Frigidaire Refrigerator Shelf Mounting Grommet
42240578902 Frigidaire Screw Mounting Hinge
43A5304525902 Frigidaire Refrigerator Roller Assembly
435304525901 Frigidaire Refrigerator Roller Assembly
45241500303 Frigidaire Refrigerator Screw
50#5304534353 Frigidaire S/A-Main Power Boar
54SUPPORT, HOUSING, MAIN BOARD
58218843801 Frigidaire Refrigerator Screw
59241548003 Frigidaire Refrigerator Screw
72241972905 Frigidaire Refrigerator Kickplate Grille Assembly
81134154100 Frigidaire Screw 10-32 x 0.375 Co
82240335202 Frigidaire Refrigerator Roller
835304455655 Frigidaire Refrigerator Rivet
88241500305 Frigidaire Refrigerator Screw
895304521676 Frigidaire Cover Assembly
90218249808 Frigidaire Refrigerator Seal-Coil Cover
91#241911710 Frigidaire Refrigerator Switch
91*#808835601 Frigidaire Refrigerator Harness
92241710601 Frigidaire Refrigerator Screw
935304508041 Frigidaire Refrigerator Cover
94#5303918775 Frigidaire Refrigerator Thermistor
1005304525909 Frigidaire Refrigerator Support
101*241853202 Frigidaire Refrigerator Screw
101242157801 Frigidaire Refrigerator Cover
