GRSS2652AD1 06 – CONTROLS

GRSS2652AD1 06 – CONTROLS

Written by

in

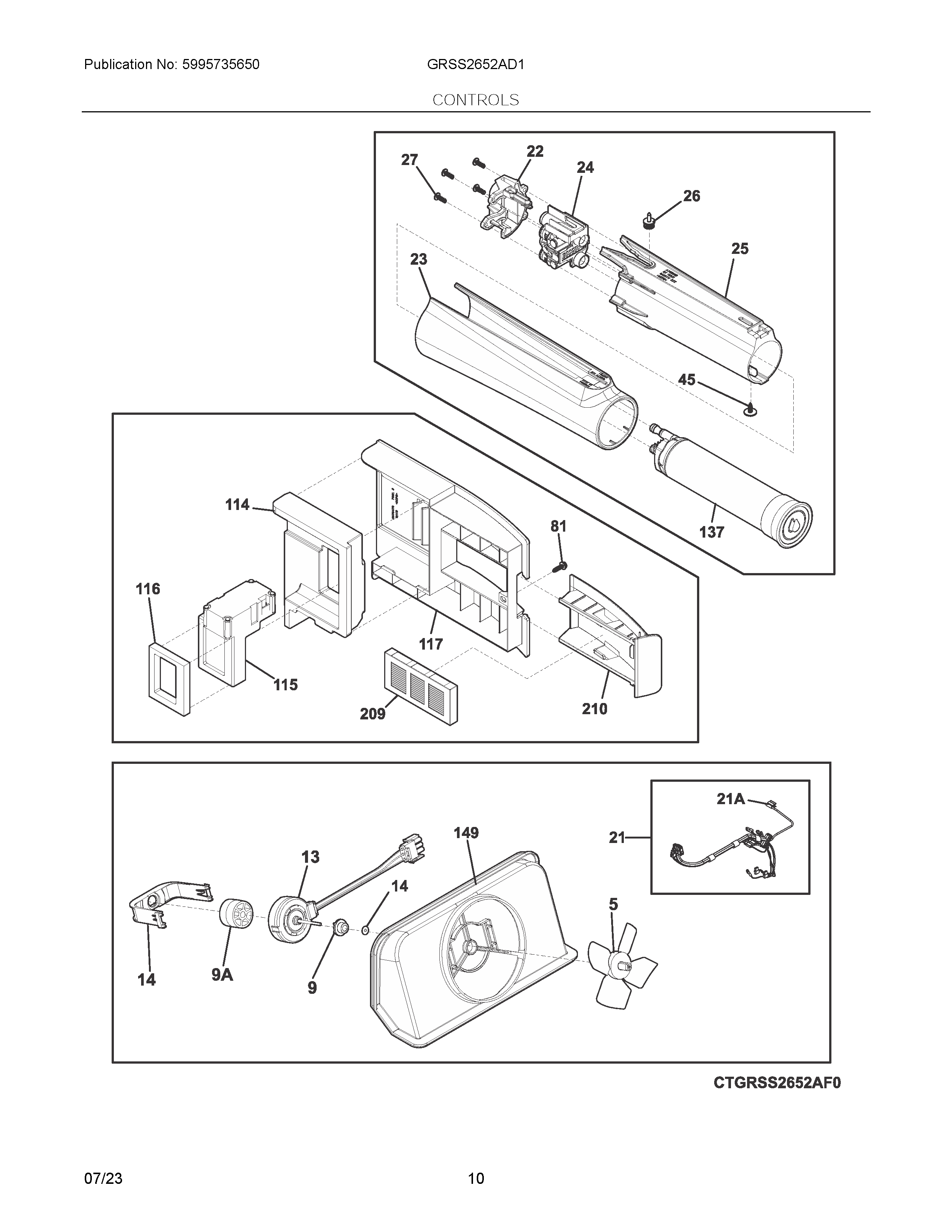

GRSS2652AD1 06 – CONTROLS

Products

PositionProduct
NI242220119 Frigidaire Refrigerator Water Tube
NINUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
NI242200102 Frigidaire Refrigerator Clip
NI242220126 Frigidaire Refrigerator Tube
5242219302 Frigidaire Refrigerator Evaporator Fan Blade
8PAULTRA2 Frigidaire Pure Air Ultra 2 Filter
9A241845301 Frigidaire Refrigerator Motor Mounting Bushing
9241563601 Frigidaire Refrigerator Motor Mounting Bushing
13MOTOR
14215474201 Frigidaire Refrigerator Washer
15242135301 Frigidaire Refrigerator Evaporator Motor Clip, Freezer
21A5303918645 Frigidaire Refrigerator Thermistor Kit
215304526980 Frigidaire Refrigerator Assembly Harness
22A5304526050 Frigidaire Refrigerator Base
22240597220 Frigidaire Sensor
235304526051 Frigidaire Refrigerator Cover
245304524817 Frigidaire Water Filter Head Manifold
255304526053 Frigidaire Water Filter Housing Assembly
26242039702 Frigidaire Refrigerator Screw
275304453707 Frigidaire Oven Screw
425308000039 Frigidaire Refrigerator Screw
45241500303 Frigidaire Refrigerator Screw
54807854301 Frigidaire Refrigerator Support
59241548003 Frigidaire Refrigerator Screw
80241953902 Frigidaire Refrigerator Screw
81218843801 Frigidaire Refrigerator Screw
1145304525913 Frigidaire Refrigerator Insulation
1155303918899 Frigidaire Damper Control Assembly
116241518601 Frigidaire Refrigerator Damper Seal
1175304525914 Frigidaire Refrigerator Cover
137FPPWFU01 Frigidaire Refrigerator PurePour Water Filter
1495304521331 Frigidaire Refrigerator Evaporator Fan Mounting Shroud
2105304525915 Frigidaire Refrigerator Housing
