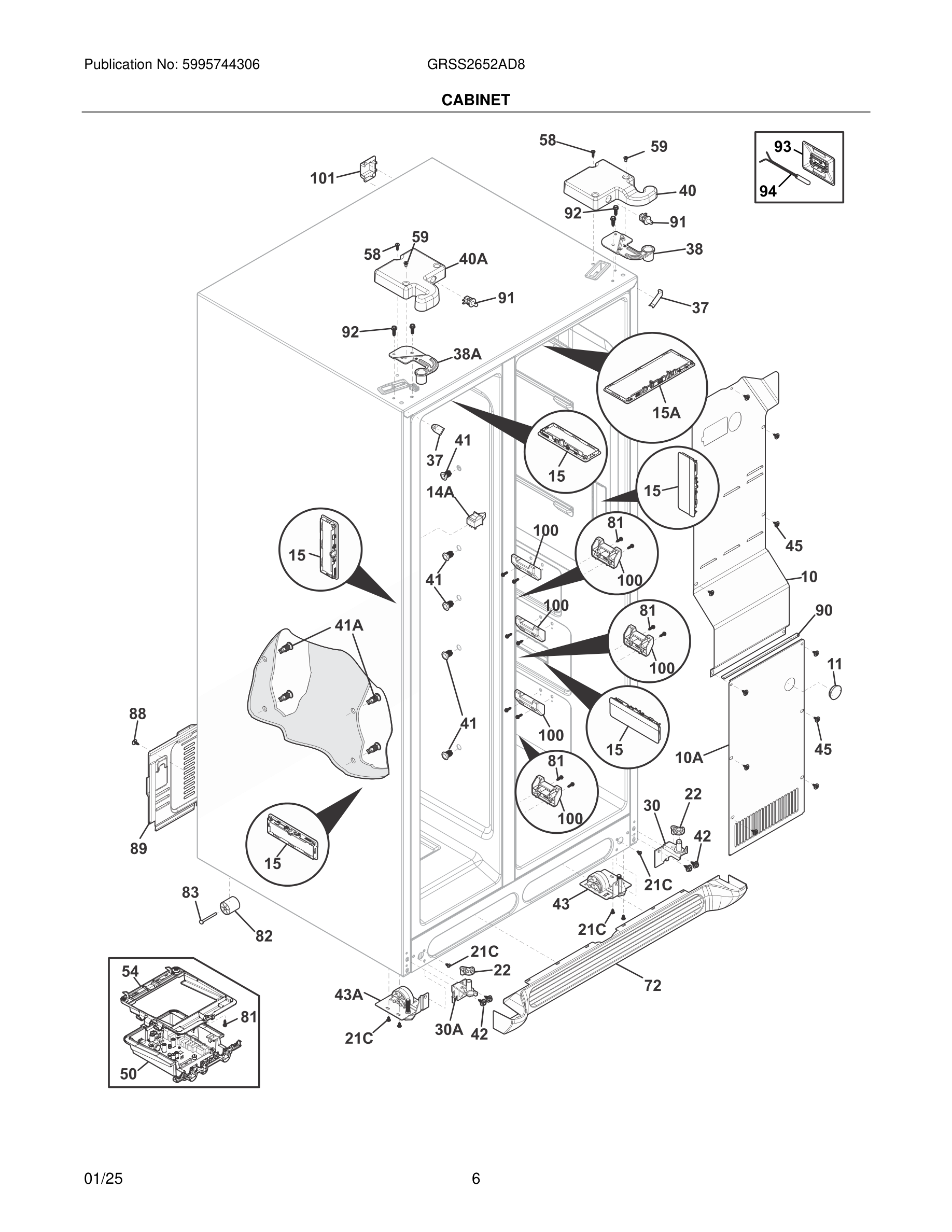

GRSS2652AD8 07 – CABINET

GRSS2652AD8 07 – CABINET

Written by

in

GRSS2652AD8 07 – CABINET

Products

PositionProduct
*CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL
10COVER-AIR DUCT
10A808217502 Frigidaire Evaporator Coil Cover
115303208309 Frigidaire Refrigerator Plug Hole
14A#241547902 Frigidaire Refrigerator Light Switch
15#5304530711 Frigidaire Refrigerator Light Assembly
15A#5304530715 Frigidaire Refrigerator Assembly Light
21C218252201 Frigidaire Refrigerator Screw
22241917801 Frigidaire Refrigerator Closer Plate
30A241918004 Frigidaire Lower Hinge Bracket
30241918001 Frigidaire Lower Door Hinge
375304519617 Frigidaire Refrigerator Cabinet Corner Trim
38A241761302 Frigidaire Refrigerator Bracket-Upper Hinge
38241761301 Frigidaire Upper Bracket Hinge
40241946705 Frigidaire Refrigerator Upper Hinge Cover
40A241946706 Frigidaire Refrigerator Upper Hinge Cover
41*NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
41241550701 Frigidaire Refrigerator Grommet-Shelf Mtg
41A241550801 Frigidaire Refrigerator Shelf Mounting Grommet
42240578902 Frigidaire Screw Mounting Hinge
43A5304525902 Frigidaire Refrigerator Roller Assembly
435304525901 Frigidaire Refrigerator Roller Assembly
45241500303 Frigidaire Refrigerator Screw
50#5304533225 Frigidaire Main Power Board Assembly
54SUPPORT, HOUSING, MAIN BOARD
58218843801 Frigidaire Refrigerator Screw
59241548003 Frigidaire Refrigerator Screw
72241969403 Frigidaire Refrigerator Kickplate/Grille
81134154100 Frigidaire Screw 10-32 x 0.375 Co
82240335202 Frigidaire Refrigerator Roller
835304455655 Frigidaire Refrigerator Rivet
88241500305 Frigidaire Refrigerator Screw
895304520905 Frigidaire Assembly Cover Refrigerator
90218249808 Frigidaire Refrigerator Seal-Coil Cover
91*#808835601 Frigidaire Refrigerator Harness
91#241911709 Frigidaire Refrigerator Switch
92241710601 Frigidaire Refrigerator Screw
935304508041 Frigidaire Refrigerator Cover
94#5303918775 Frigidaire Refrigerator Thermistor
1005304525909 Frigidaire Refrigerator Support
101*241853202 Frigidaire Refrigerator Screw
101242157801 Frigidaire Refrigerator Cover
