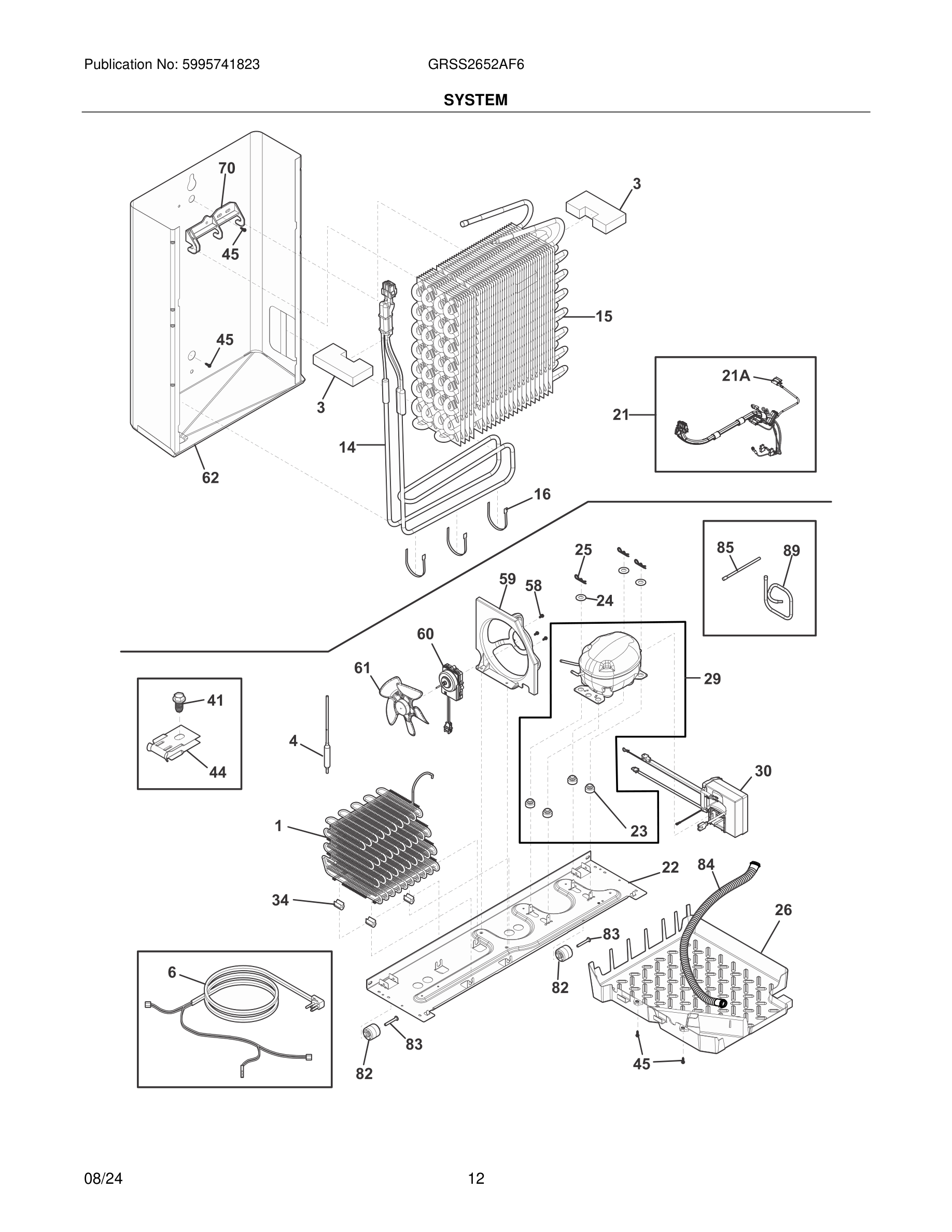

GRSS2652AF6 13 – SYSTEM

GRSS2652AF6 13 – SYSTEM

Written by

in

GRSS2652AF6 13 – SYSTEM

Products

Position	Product
*	241500305 Frigidaire Refrigerator Screw
*	218709101 Frigidaire Refrigerator Handle Mounting Screw
*	218515401 Frigidaire Refrigerator Clip
*	5304527119 Frigidaire Screw
*	240521303 Frigidaire Refrigerator Screw
1#	5304526057 Frigidaire Refrigerator Condenser
3	218679614 Frigidaire Refrigerator Evaporator Coil Block
4#	5303305677 Frigidaire Replacement Filter Dryer Filters
6*#	5304526984 Frigidaire Harness
6#	241516904 Frigidaire Refrigerator Service Cord
14#	5304526032 Frigidaire Refrigerator Heater
15#	5303918284 Frigidaire Refrigerator Evaporator Kit P-1
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
21A#	5303918645 Frigidaire Refrigerator Thermistor Kit
21#	5304526980 Frigidaire Refrigerator Assembly Harness
22	5304526006 Frigidaire Base
23	5304523829 Frigidaire Refrigerator Grommet
24	241812301 Frigidaire Refrigerator Compressor Mount Washer
25	242037702 Frigidaire Refrigerator Spring Clip
26	241697603 Frigidaire Defrost Pan
29#	5304530136 Frigidaire Refrigerator Compressor
30#	5304531506 Frigidaire Refrigerator Inverter
34	240405201 Frigidaire Refrigerator Grommet
41	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
44	5304456288 Frigidaire Refrigerator Clamp
45	5304455650 Frigidaire Refrigerator Screw
58	240569202 Frigidaire Refrigerator Screw
59*	240359403 Frigidaire Refrigerator Fan Shroud Screw
59	241946106 Frigidaire Refrigerator Shroud-Cond Fan
59*	240346701 Frigidaire Refrigerator Foam Seal Tape
60#	242018303 Frigidaire Refrigerator Motor
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
62	5304526003 Frigidaire Refrigerator Trough
70	218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
82	240335202 Frigidaire Refrigerator Roller
83	5304455655 Frigidaire Refrigerator Rivet
84	241830905 Frigidaire Lower Drain Tube
84*	242036801 Frigidaire Refrigerator Plastic Clip
85#	5304530251 Frigidaire Tube Assembly
89*	5304526071 Frigidaire Refrigerator Connector
89#	215346903 Frigidaire Tube-Process
