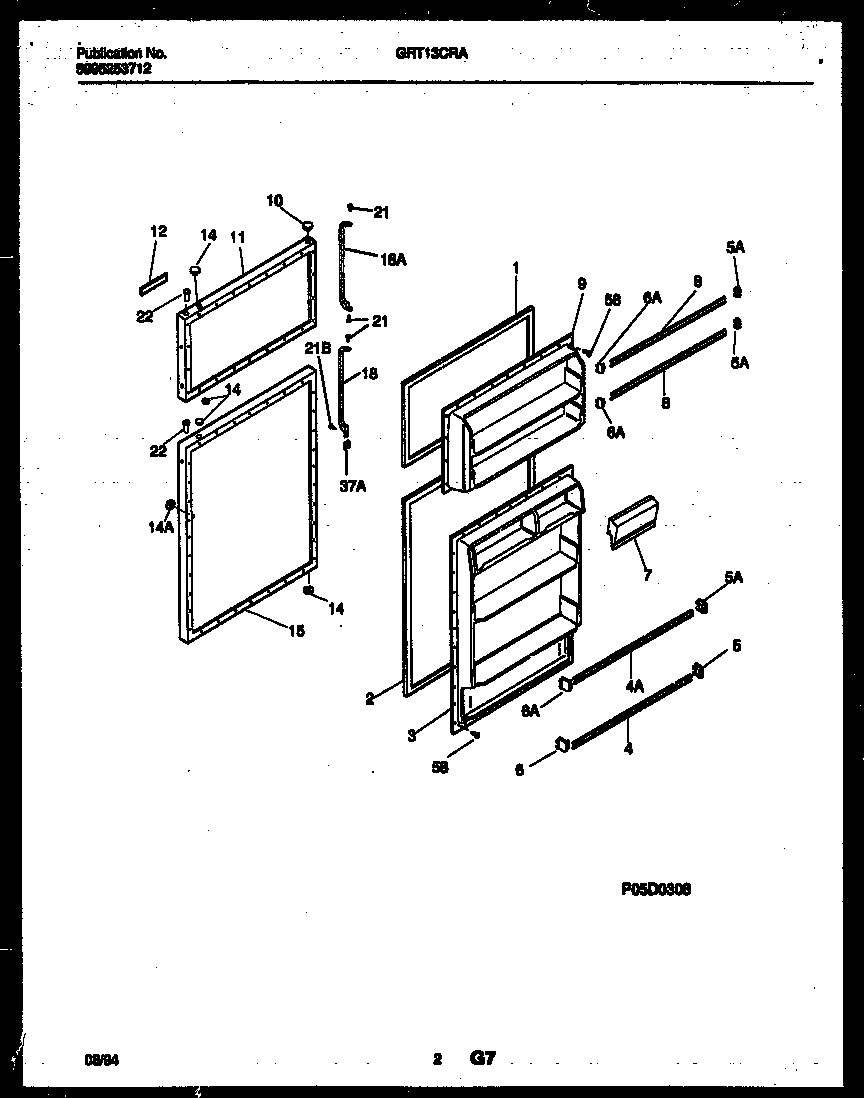

GRT13CRAW0 02 – DOOR PARTS

GRT13CRAW0 02 – DOOR PARTS

Written by

in

GRT13CRAW0 02 – DOOR PARTS

Products

PositionProduct
*80147INSULATION
1GASKET-FRZR DOOR, MAGNETIC, WHITE
2GASKET-REFR DOOR, WHITE, MAGNETIC
3PANEL-INNER DOOR, REFR
4AWCI 5303304822
4215366002 Frigidaire Refrigerator Door Wide Rack
5WCI 3206150
5A3206165 Frigidaire Bar Endcap Right Hand
6WCI 3206151
6A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
7WCI 5303304821
8WCI 5303304556
9PANEL-INNER DOOR, FRZR
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917305
12WCI 215936601
14A240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917382
18AWCI 215800901
18WCI 215800903
21B154518001 Frigidaire Refrigerator Screw
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, WHITE,
22BEARING-HINGE
37AWCI 215480205
585304455651 Frigidaire Refrigerator Screw
