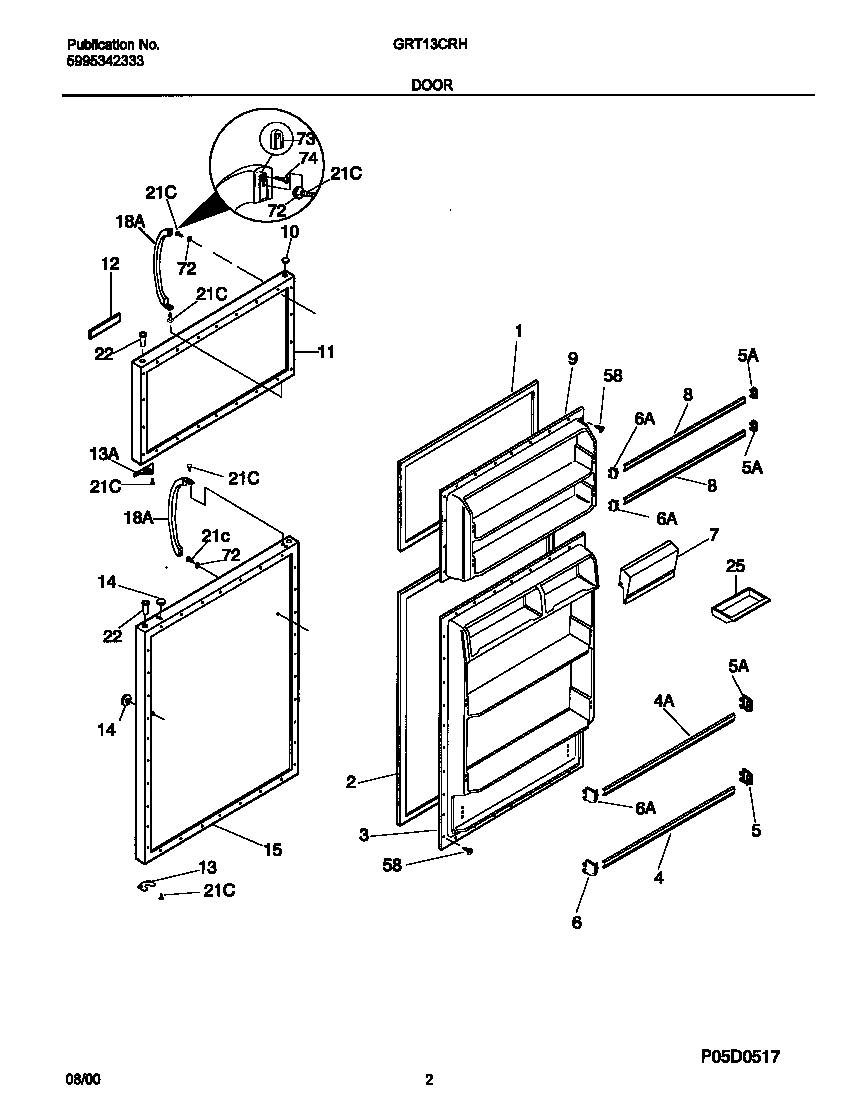

GRT13CRHD1 02 – DOOR

GRT13CRHD1 02 – DOOR

Written by

in

GRT13CRHD1 02 – DOOR

Products

PositionProduct
*09362WCI 218468026
*09360WCI 218467404
*09365INSULATION
*09364WCI 218468100
1GASKET-FRZR DOOR, MAGNETIC, WHITE
2WCI 218730601
3PANEL-INNER DOOR, REFR
4RACK-DOOR, 23.16“ X 1.12“
4215366002 Frigidaire Refrigerator Door Wide Rack
5WCI 5303324320
53206165 Frigidaire Bar Endcap Right Hand
6WCI 5303324302
63206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
7DOOR-DAIRY
8RACK-DOOR, 22.59“ X 1.12“
9PANEL-INNER DOOR, FRZR
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917815
12WCI 218531606
13WCI 218249002
13WCI 218800300
14WCI 218915702
15WCI 5303917817
18WCI 218428102
21218252201 Frigidaire Refrigerator Screw
22WCI 218519300
255308000716 Frigidaire Refrigerator Dish
58Screw,No.10 pan hd ,8-18 x .5
72WCI 218397000
73218396700 Frigidaire Door Handle Mounting Block
74215503203 Frigidaire Refrigerator Door Handle Screw
