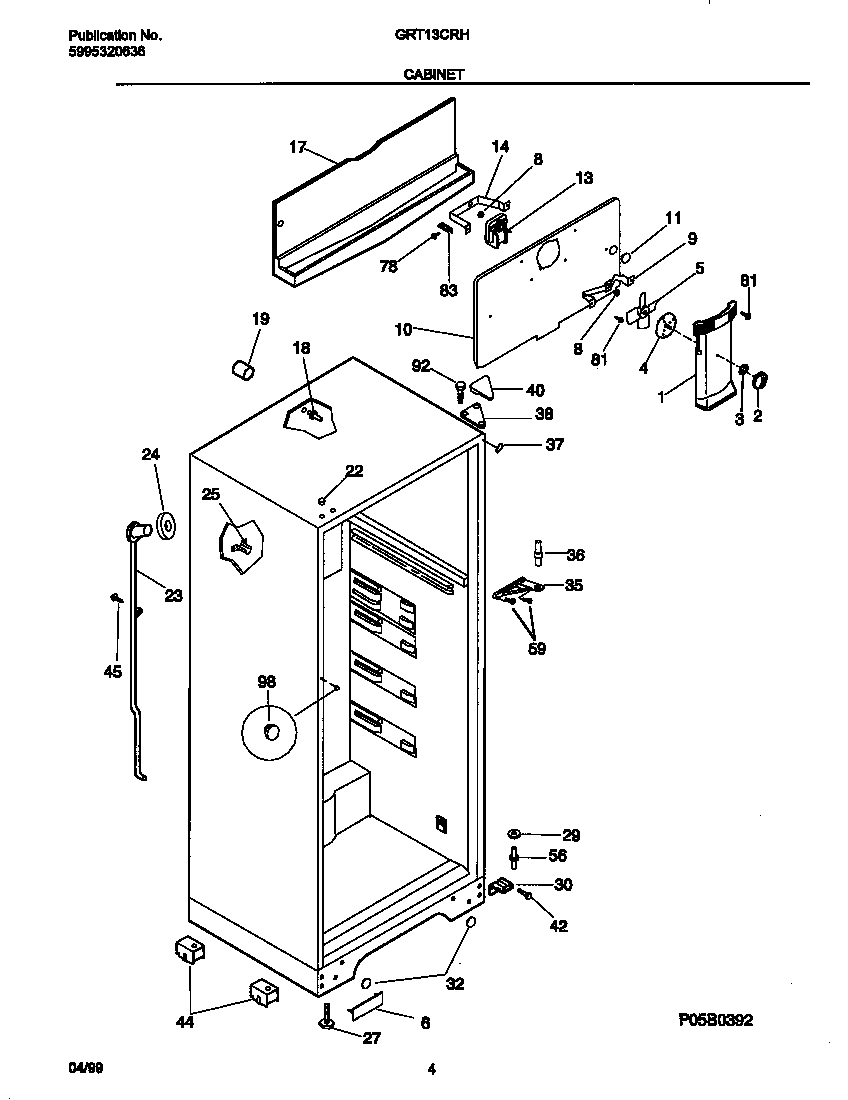

GRT13CRHW0 03 – CABINET

GRT13CRHW0 03 – CABINET

Written by

in

GRT13CRHW0 03 – CABINET

Products

PositionProduct
*93562TAPPING PLATE, LOWER HINGE, (2) (NI)
*935645303321319 Frigidaire Refrigerator White Touch Up Paint
*93561NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
1WCI 218672501
2WCI 5303307351
3Nut,push-on
4WCI 218722200
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 218448301
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 218832001
115303208309 Frigidaire Refrigerator Plug Hole
135300158289 Frigidaire Evaporator Fan Motor
14WCI 5303322992
17WCI 218725601
18WCI 218865000
19TUBE-RUBBER
22215774901 Frigidaire Refrigerator Button Plug
23TUBE-DRAIN, W/SEAL RING
24WCI 5303207353
25WCI 215774100
27SCREW-LEVELING, (2)
29AWASHER, .34 X .62 X .05, NYLON
29BWCI 5308000186
30WCI 5304409595
32PLUG-BUTTON, WHITE, CABINET BASE
35BRACKET-CTR HINGE, LIGHT GREY
36218251300 Frigidaire Refrigerator Center Hinge Pin
37WCI 5303321081
38WCI 3206100
40WCI 3206101
42241710601 Frigidaire Refrigerator Screw
44ROLLER ASSY, METAL HOUSING, REAR, (2)
455304455651 Frigidaire Refrigerator Screw
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
785308000039 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
98215099701 Frigidaire Refrigerator Button Plug
