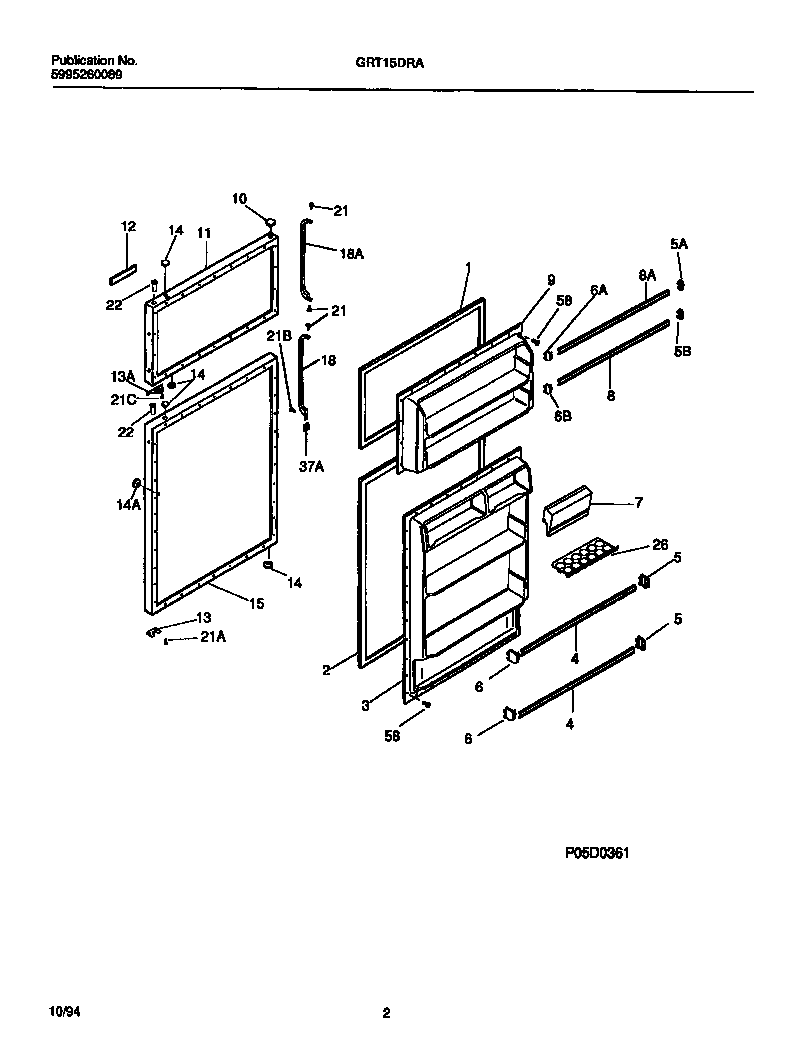

GRT15DRAD2 02 – DOOR SECTION

GRT15DRAD2 02 – DOOR SECTION

Written by

in

GRT15DRAD2 02 – DOOR SECTION

Products

PositionProduct
*49800INSULATION
1WCI 215608901
2218730603 Frigidaire Door Gasket
3WCI 5303281227
5WCI 3206150
5A3206165 Frigidaire Bar Endcap Right Hand
5BSUPPORT-DOOR RACK, EXTENDS 1.06“, RH
6A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
6BSUPPORT-DOOR RACK, EXTENDS 1.06“, LH
6WCI 3206151
7WCI 5303304631
8215366002 Frigidaire Refrigerator Door Wide Rack
8AWCI 5303304556
9WCI 5303276517
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917306
12WCI 215936611
13AWCI 218249002
13WCI 5308000255
14AWCI 215352211
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917378
18WCI 215800922
18AWCI 215800920
21C218252201 Frigidaire Refrigerator Screw
21ASCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21B154518001 Frigidaire Refrigerator Screw
21WCI 218252011
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
37AWCI 215480204
585304455651 Frigidaire Refrigerator Screw
