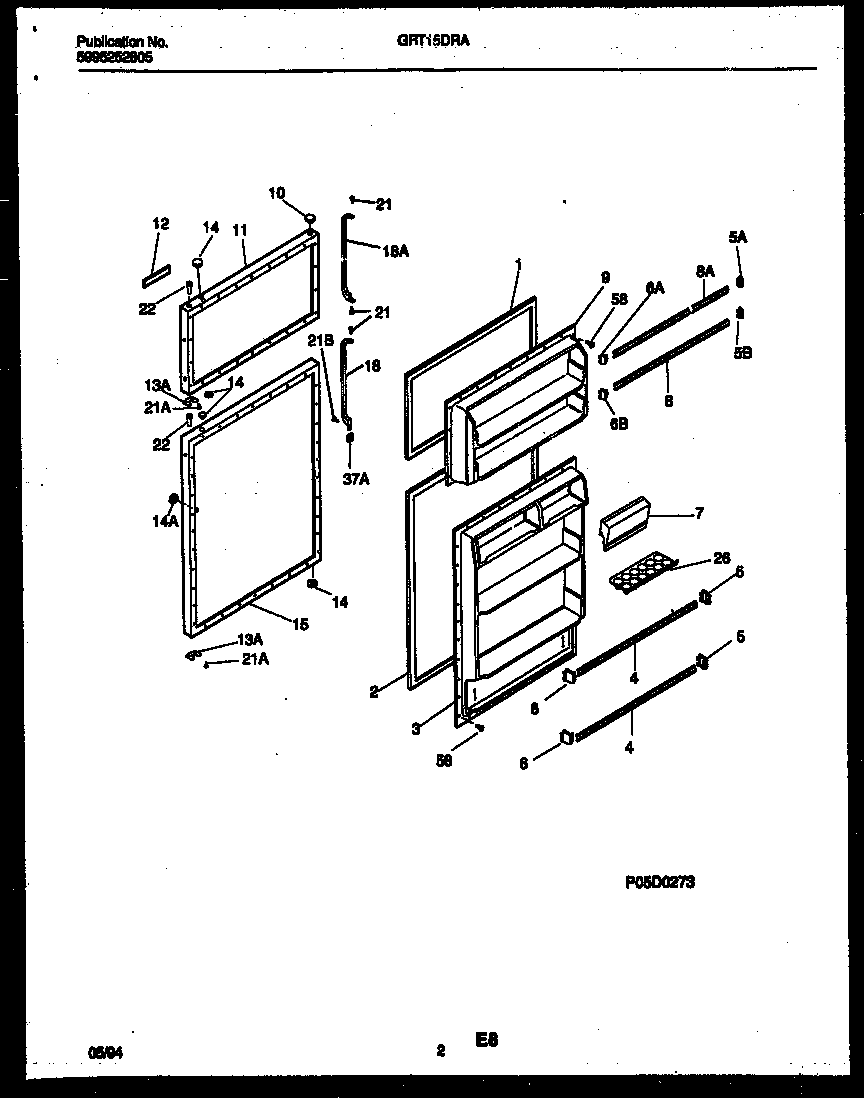

GRT15DRAW0 02 – DOOR PARTS

GRT15DRAW0 02 – DOOR PARTS

Written by

in

GRT15DRAW0 02 – DOOR PARTS

Products

PositionProduct
*78249INSULATION
1GASKET-FRZR DOOR, MAGNETIC, WHITE
2218730603 Frigidaire Door Gasket
3WCI 5303281227
5A3206165 Frigidaire Bar Endcap Right Hand
5BSUPPORT-DOOR RACK, EXTENDS 1.06“, RH
5WCI 3206150
6A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
6WCI 3206151
6BSUPPORT-DOOR RACK, EXTENDS 1.06“, LH
7WCI 5303304555
8215366002 Frigidaire Refrigerator Door Wide Rack
8AWCI 5303304556
9WCI 5303276517
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917305
12WCI 215936601
13AWCI 5308000255
14A240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917377
18AWCI 215800901
18WCI 215800903
21AWCI 5308011745
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, WHITE,
21B154518001 Frigidaire Refrigerator Screw
22BEARING-HINGE
37AWCI 215480205
585304455651 Frigidaire Refrigerator Screw
