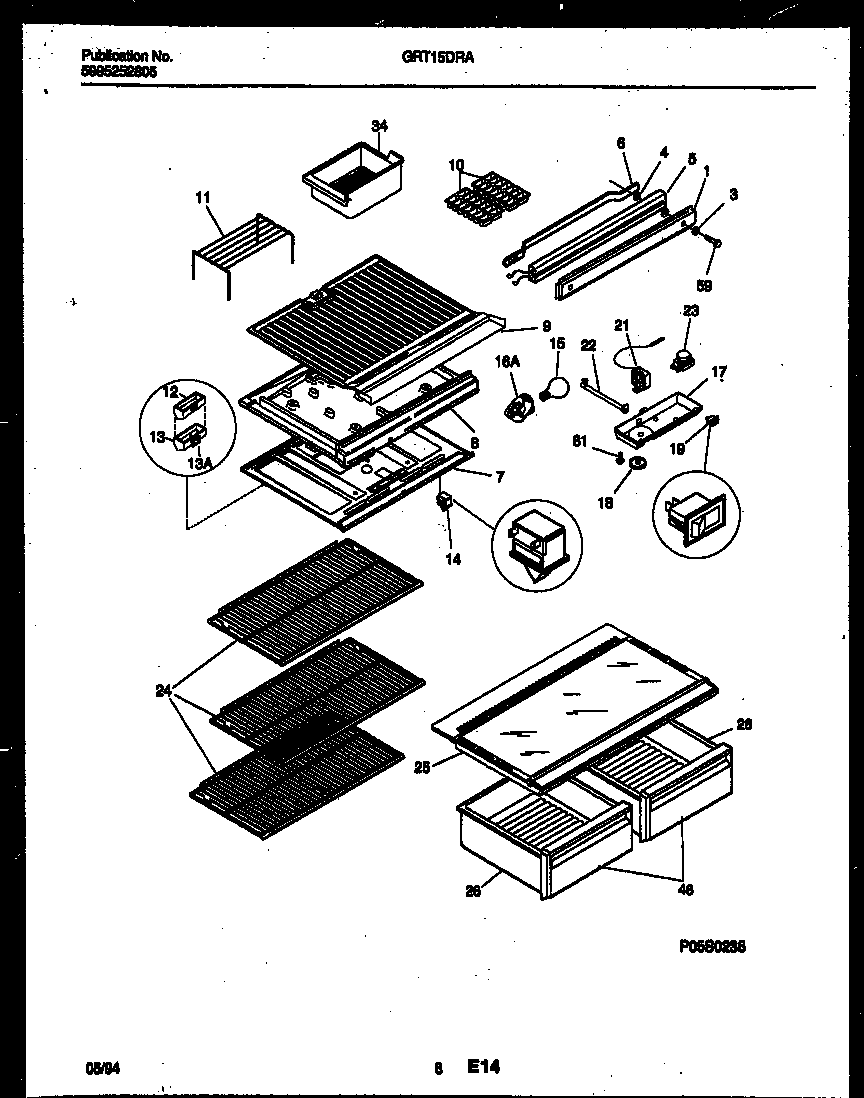

GRT15DRAW0 05 – SHELVES AND SUPPORTSadmin2025-04-26T10:20:59+00:00GRT15DRAW0 05 – SHELVES AND SUPPORTS
Products
| Position | Product |
|---|
| 1 | WCI 3206121 |
| 3 | WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI) |
| 4 | WCI 215882100 |
| 5 | WCI 3206120 |
| 6 | WCI 215170801 |
| 7A | WCI 5303001380 |
| 7 | WCI 3206128 |
| 8 | WCI 3206131 |
| 8A | HARNESS-WIRING, CONTROL/DIVIDER (NON-ILLUSTRATED) |
| 8B | 3205266 Frigidaire Refrigerator Edge Protector |
| 9 | WCI 3206132 |
| 10 | 215667501 Frigidaire Refrigerator Ice Tray Primary |
| 11 | SHELF-FREEZER, ``TABLE TYPE`` |
| 12 | DEFLECTRO, AIR, W/SEAL |
| 12A | 5303001449 Frigidaire Refrigerator Seal |
| 13 | WCI 5303001448 |
| 13A | EXTENSION, AIR DEFLECTOR, WITH INSULATION |
| 14 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 16A | 218906802 Frigidaire Light Lamp Socket |
| 17A | NUT, ANCHOR (NI) |
| 17 | WCI 5303299980 |
| 18 | WCI 5303299979 |
| 19 | SWITCH-ENERGY SAVER, ROCKER |
| 21A | WCI 5303001260 |
| 21 | WCI 5303302297 |
| 22 | WCI 3018891 |
| 23 | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 23A | 5304455649 Frigidaire Refrigerator Screw |
| 24 | SHELF, SLIDING, FULL WIDTH, WIRE, REFR SECTION |
| 25 | WCI 5303283113 |
| 26 | PAN-CRISPER |
| 46 | WCI 5303304557 |
| 46 | WCI 5303304558 |
| 59 | WCI 5308012258 |
| 81 | 5304455650 Frigidaire Refrigerator Screw |
