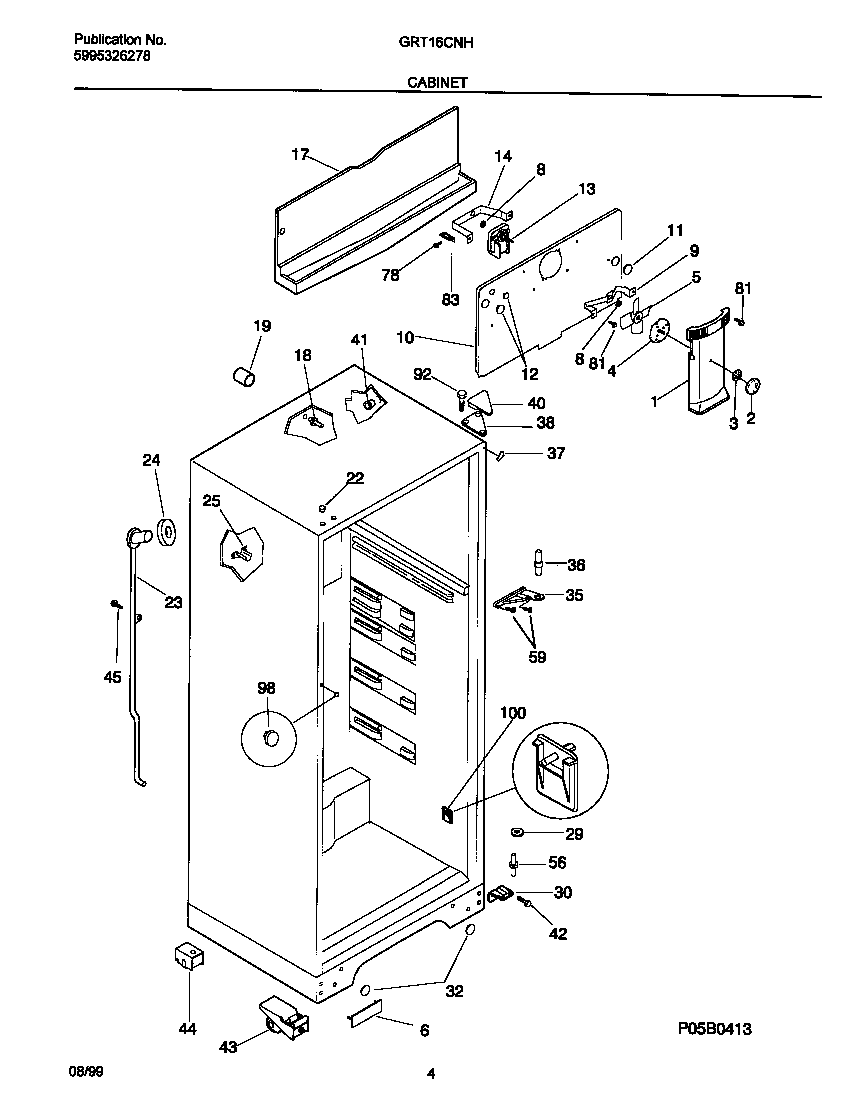

GRT16CNHD1 03 – CABINET

GRT16CNHD1 03 – CABINET

Written by

in

GRT16CNHD1 03 – CABINET

Products

PositionProduct
*92281Clamp-motor wiring,nylon ,w/adhesive tape
*92287WCI 5308000186
*92288BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
*92292TOUCH, UP PAINT, ALMOND (NI)
*92289WCI 5308009790
*92282TAPPING PLATE, LOWER HINGE, (2) (NI)
*922855304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*92291PLUG, BUTTON, CABINET LINER (NI)
*92284NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*922905304455651 Frigidaire Refrigerator Screw
*922865304500008 Frigidaire Oven Screw
*92283SHIM, LOWER HINGE (NI)
1WCI 218672501
2WCI 5303307351
3Nut,push-on
4WCI 218722200
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 218448302
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 218832002
115303208309 Frigidaire Refrigerator Plug Hole
12AWCI 215079000
12BWCI 215079100
135300158289 Frigidaire Evaporator Fan Motor
14ABRACKET-MOTOR MTG, REAR
14B5309918806 Frigidaire Refrigerator Light Switch Door
17WCI 218725601
18WCI 218865000
19TUBE-RUBBER
22WCI 215774911
23WCI 5303269702
24WCI 5303207353
25WCI 215774100
29WCI 5308011326
30WCI 5304409595
32PLUG-BUTTON, ALMOND, CABINET BASE
35WCI 218220102
36218251300 Frigidaire Refrigerator Center Hinge Pin
37WCI 5303321082
38WCI 3206100
40WCI 3206105
41A5304509705 Frigidaire Refrigerator Grommet
41B5308000039 Frigidaire Refrigerator Screw
42241710601 Frigidaire Refrigerator Screw
43WCI 218724000
44ROLLER ASSY, METAL HOUSING, REAR, (2)
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
100SUPPORT-PAN COVER
