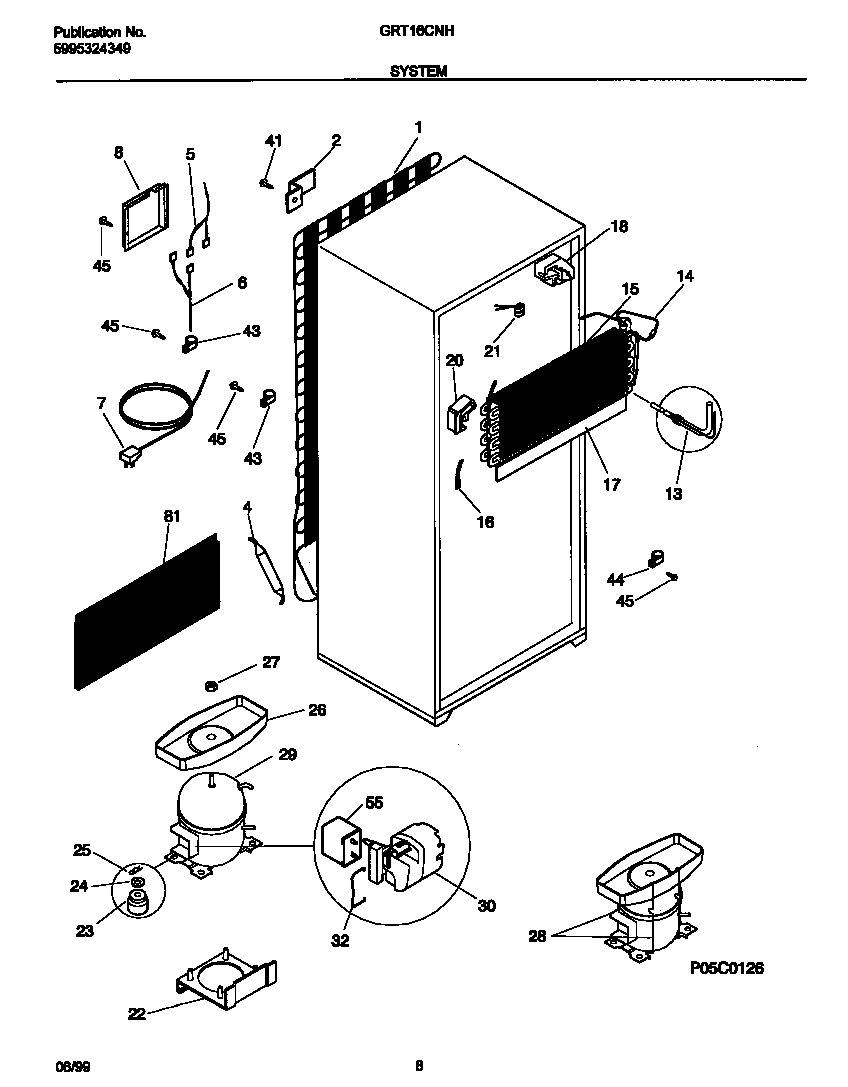

GRT16CNHW0 05 – SYSTEM

Written by

Products

Position	Product
*89910	SPACER-COND TUBE,BLACK
*89914	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*89915	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
*89909	5303017691 Frigidaire Refrigerator Spacer-Tube
*89913	WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
*89916	5304455852 Frigidaire Refrigerator Screw
*89911	WCI 5304406721
*89917	WCI 218905701
*89912	SCREW,HEX HD SER WSHR ,8-18 X 0.375
*89918	HOT TUBE REPAIR KIT-SERVICE
1	WCI 218491000
2	BRACKET, MOUNTIN, CONDENSER, (4)
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	HARNESS-WIRING,CONTROL/DIVIDER
6	WCI 215257001
7	CORD-ELECTRIC POWER
8	WCI 5303001197
13	WCI 215076403
14	WCI 5308009754
15	WCI 218818701
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	INSULATOR-EVAP, PLASTIC
18	WCI 218821301
20	WCI 218821201
21	297216600 Frigidaire Refrigerator Defrost Thermostat
22	WCI 5308013663
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	WASHER-COMPR MTG
25	CLIP – COMPRESSOR MTG
26	WCI 215372500
27	Nut,lock `1/4-20 ,drain pan mtg
28	PAN RETAINER KIT, SERVICE
29	5304511983 Frigidaire Refrigerator Compressor Assembly Kit
32	218740800 Frigidaire Refrigerator Clamp
41	5308000039 Frigidaire Refrigerator Screw
43	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
44	5308000133 Frigidaire Refrigerator Clamp
45	5304455651 Frigidaire Refrigerator Screw
55	5304464438 Frigidaire Compressor Run Capacitor
81	COVER-SOUND INSUL,PRESSBOARD/FOAM ,MACHINE COMPT
