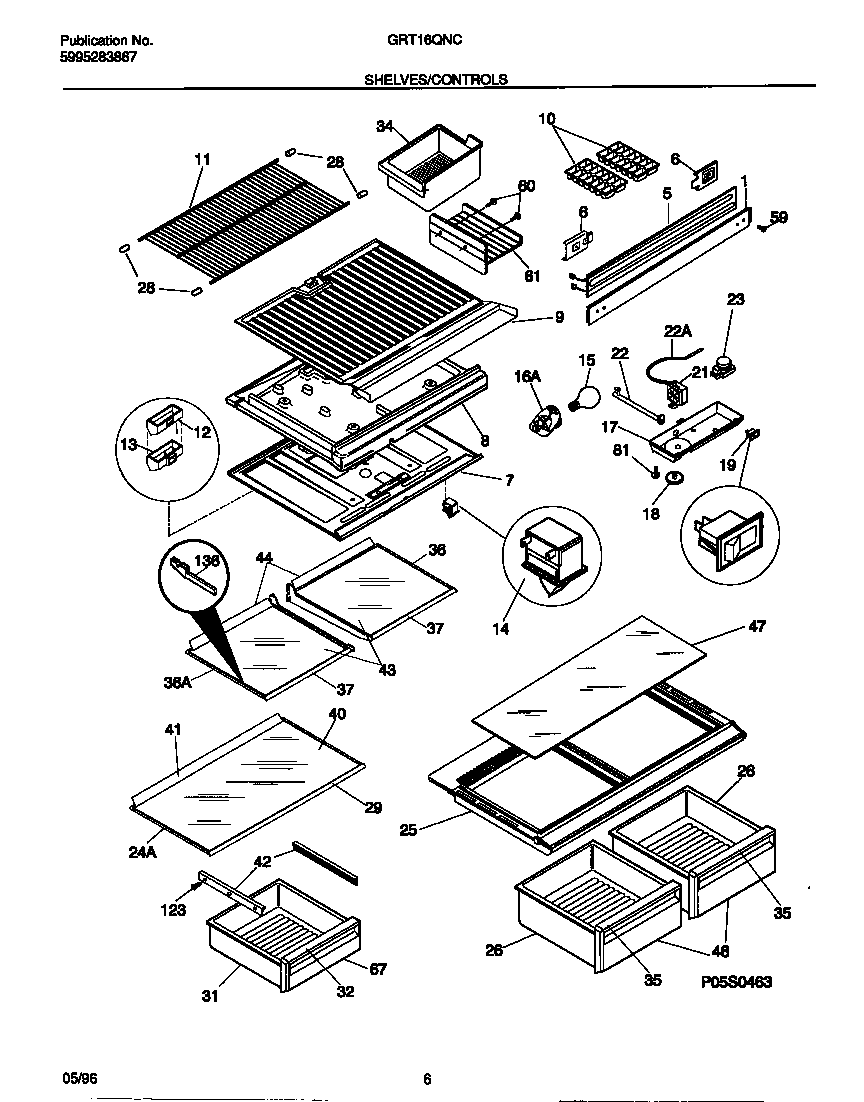

GRT16QNCW2 04 – SHELVES/CONTROLS

GRT16QNCW2 04 – SHELVES/CONTROLS

Written by

in

GRT16QNCW2 04 – SHELVES/CONTROLS

Products

PositionProduct
1WCI 218252501
5WCI 218271401
6WCI 218279800
7AWCI 218597400
7BWCI 5303001380
8AWCI 3206186
8CWCI 3018900
8B3205266 Frigidaire Refrigerator Edge Protector
9WCI 3206187
10215667501 Frigidaire Refrigerator Ice Tray Primary
11BSPACER, FRZR SHELF (NOT ILLUSTRATED)
11ASHELF-FREEZER, FIXED/FLAT, FULL WIDTH, WIRE
12WCI 218630800
13WCI 218631001
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17AWCI 5303307349
17BNUT, ANCHOR (NI)
18WCI 5303311079
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303305486
21BWCI 5303001260
22AWCI 3018891
22BWCI 5303319707
22TUBE
23B5304455649 Frigidaire Refrigerator Screw
23A215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 218276002
25WCI 218314102
26PAN – CRISPER
28END CAP-SHELF,PROTECTOR
29WCI 215919452
31WCI 3206209
32WCI 5303310714
345303212918 Frigidaire Refrigerator Cont
35WCI 5303310713
36WCI 218310302
36WCI 218310301
37WCI 215919453
40WCI 218390518
41WCI 215919839
42BWCI 5303305310
42AWCI 5303305309
43WCI 218390519
44WCI 215919842
46WCI 5303310720
47WCI 215723587
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
605304455852 Frigidaire Refrigerator Screw
61WCI 215781501
67WCI 5303310722
815304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
136WCI 218553900
