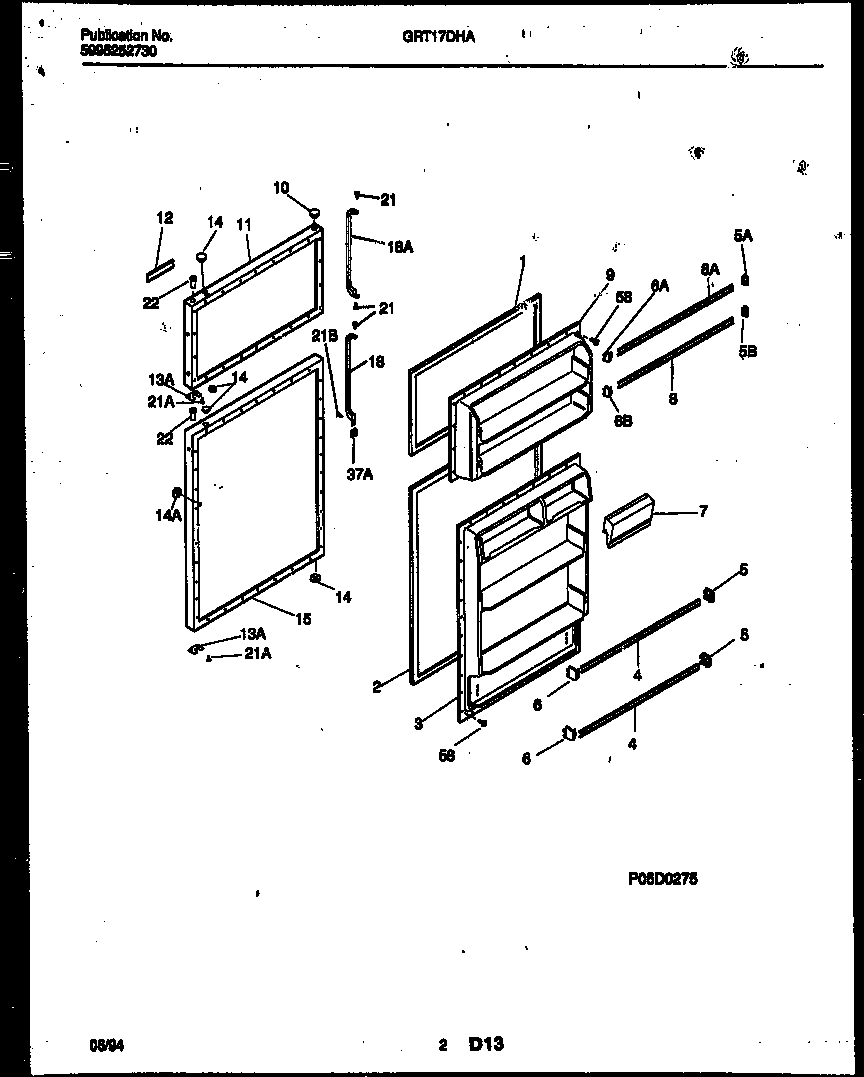

GRT17DHAD0 02 – DOOR PARTSadmin2025-04-26T12:00:44+00:00GRT17DHAD0 02 – DOOR PARTS
Products
| Position | Product |
|---|
| *78177 | INSULATION |
| 1 | WCI 215608901 |
| 2 | 218730603 Frigidaire Door Gasket |
| 3 | WCI 5303281227 |
| 5B | SUPPORT-DOOR RACK, EXTENDS 1.06``, RH |
| 5A | 3206165 Frigidaire Bar Endcap Right Hand |
| 5 | WCI 3206150 |
| 6B | SUPPORT-DOOR RACK, EXTENDS 1.06``, LH |
| 6A | 3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support |
| 6 | WCI 3206151 |
| 7 | WCI 5303304555 |
| 8A | WCI 5303304556 |
| 8 | 215366002 Frigidaire Refrigerator Door Wide Rack |
| 9 | WCI 5303276517 |
| 10 | PLUG-BUTTON, ALMOND, HINGE BRG HOLE |
| 11 | WCI 5303917306 |
| 12 | WCI 215936611 |
| 13A | WCI 5308000255 |
| 14 | PLUG-BUTTON, ALMOND, HANDLE/DR STOP |
| 14A | WCI 215352211 |
| 15 | WCI 5303917378 |
| 18A | WCI 215800904 |
| 18 | WCI 215800906 |
| 21A | WCI 5308011745 |
| 21B | 154518001 Frigidaire Refrigerator Screw |
| 21 | SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, ALMOND, |
| 22 | BEARING-HINGE |
| 37A | WCI 215480204 |
| 58 | 5304455651 Frigidaire Refrigerator Screw |
