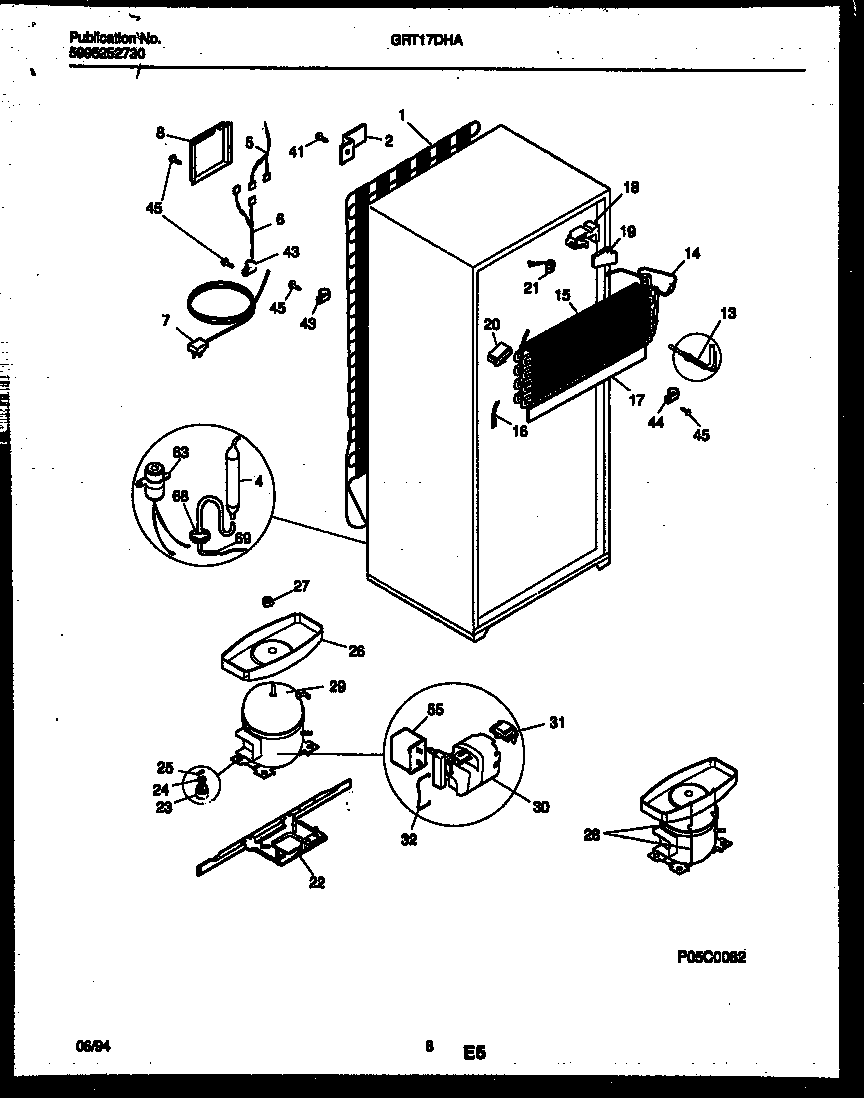

GRT17DHAD0 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

GRT17DHAD0 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

GRT17DHAD0 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*78190WCI 3916557
1WCI 5303001341
2AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
2BRACKET, MOUNTIN, CONDENSER, (4)
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 3018900
6WCI 215257003
7CORD-ELECTRIC POWER
8WCI 5303001197
13WCI 215257600
14WCI 5308009754
15EVAPORATOR
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17INSULATOR-EVAP, PLASTIC
18INSULATION BLOCK, RH
19INSULATION PLUG, RH
20INSULATION BLOCK, LH
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22A5304500008 Frigidaire Oven Screw
22WCI 3206126
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
26PAN-DEFROST DRAIN, ORIG/SVCE COMPR
26A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
27Nut,lock `1/4-20 ,drain pan mtg
28PAN RETAINER KIT, SERVICE
29WCI 5303925125
30WCI 216008901
31WCI 5303276514
32WCI 215012000
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
445308000133 Frigidaire Refrigerator Clamp
455304455852 Frigidaire Refrigerator Screw
455304455651 Frigidaire Refrigerator Screw
555304464438 Frigidaire Compressor Run Capacitor
63CAPACITOR ASSY, START, W / MTG CLAMP
69WCI 215116300
