GRT17DRBD2 02 – DOOR

GRT17DRBD2 02 – DOOR

Written by

in

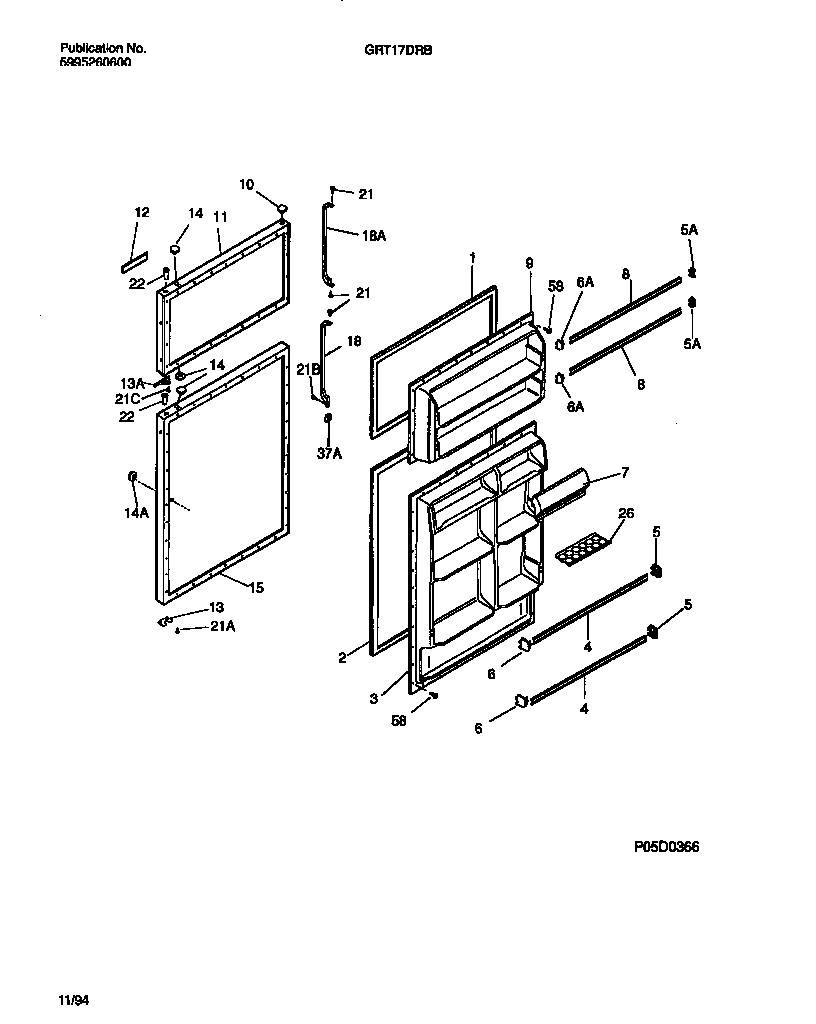

GRT17DRBD2 02 – DOOR

Products

PositionProduct
*74000INSULATION
1WCI 215608901
2218730603 Frigidaire Door Gasket
3WCI 215026201
4215366002 Frigidaire Refrigerator Door Wide Rack
5SUPPORT-DOOR RACK, EXTENDS 1.06“, RH
5ASUPPORT-DOOR RACK, EXTENDS .56“, RH
6SUPPORT-DOOR RACK, EXTENDS 1.06“, LH
6ASUPPORT-DOOR RACK, EXTENDS .56“, LH
7WCI 5303304655
8WCI 215806308
9WCI 5303290026
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11PANEL-FRZR DOOR, ALMOND, W/INSULATIOON
12WCI 215731811
13AWCI 218249002
13DOOR STOP, REFR SECTION
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
14AWCI 215352211
15WCI 5303917414
18AWCI 215800920
18WCI 215800922
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, ALMOND,
21AWCI 5308011745
21B154518001 Frigidaire Refrigerator Screw
21C218252201 Frigidaire Refrigerator Screw
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
37AWCI 215480204
585304455651 Frigidaire Refrigerator Screw
