GRT17DRBW2 02 – DOOR

GRT17DRBW2 02 – DOOR

Written by

in

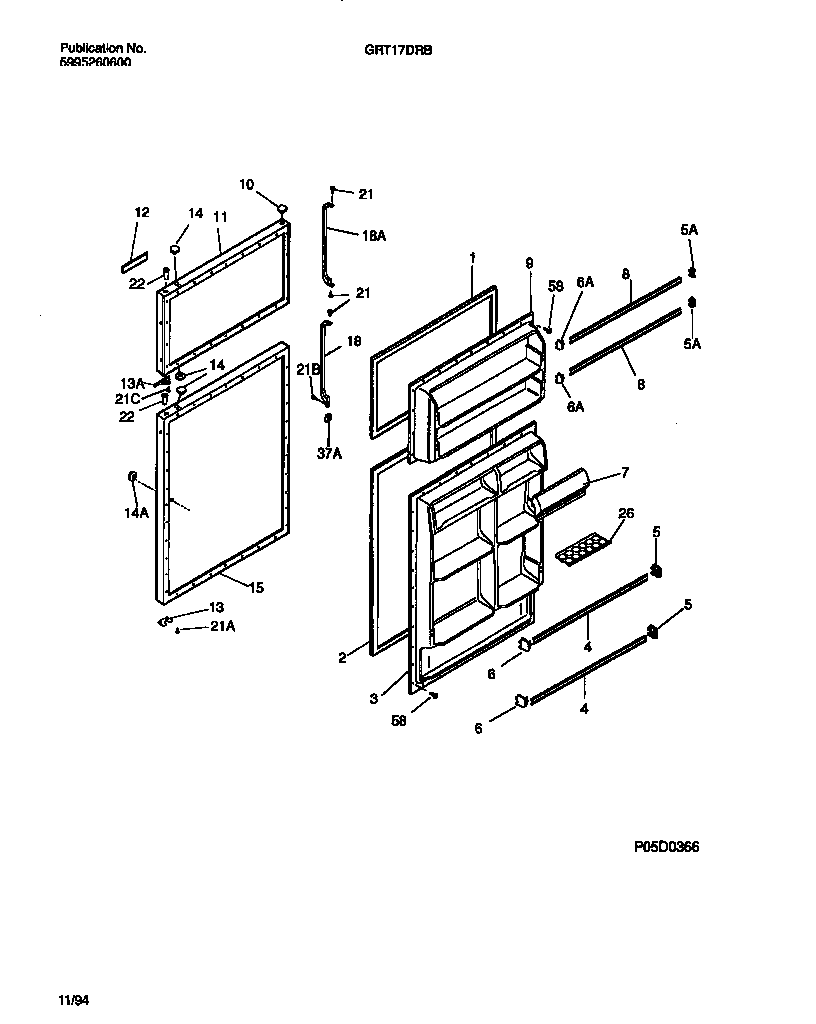

GRT17DRBW2 02 – DOOR

Products

PositionProduct
*74000INSULATION
1GASKET-FRZR DOOR, MAGNETIC, WHITE
2218730603 Frigidaire Door Gasket
3WCI 215026201
4215366002 Frigidaire Refrigerator Door Wide Rack
5SUPPORT-DOOR RACK, EXTENDS 1.06“, RH
5ASUPPORT-DOOR RACK, EXTENDS .56“, RH
6ASUPPORT-DOOR RACK, EXTENDS .56“, LH
6SUPPORT-DOOR RACK, EXTENDS 1.06“, LH
7WCI 5303304655
8WCI 215806308
9WCI 5303290026
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917415
12NAMEPLATE ASSY, WHITE W/MTG TAPE
13AWCI 218249001
13DOOR STOP, REFR SECTION
14A240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917413
18AWCI 215800919
21AWCI 5308011745
21B154518001 Frigidaire Refrigerator Screw
21C218252201 Frigidaire Refrigerator Screw
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, WHITE,
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
37AWCI 215480205
585304455651 Frigidaire Refrigerator Screw
