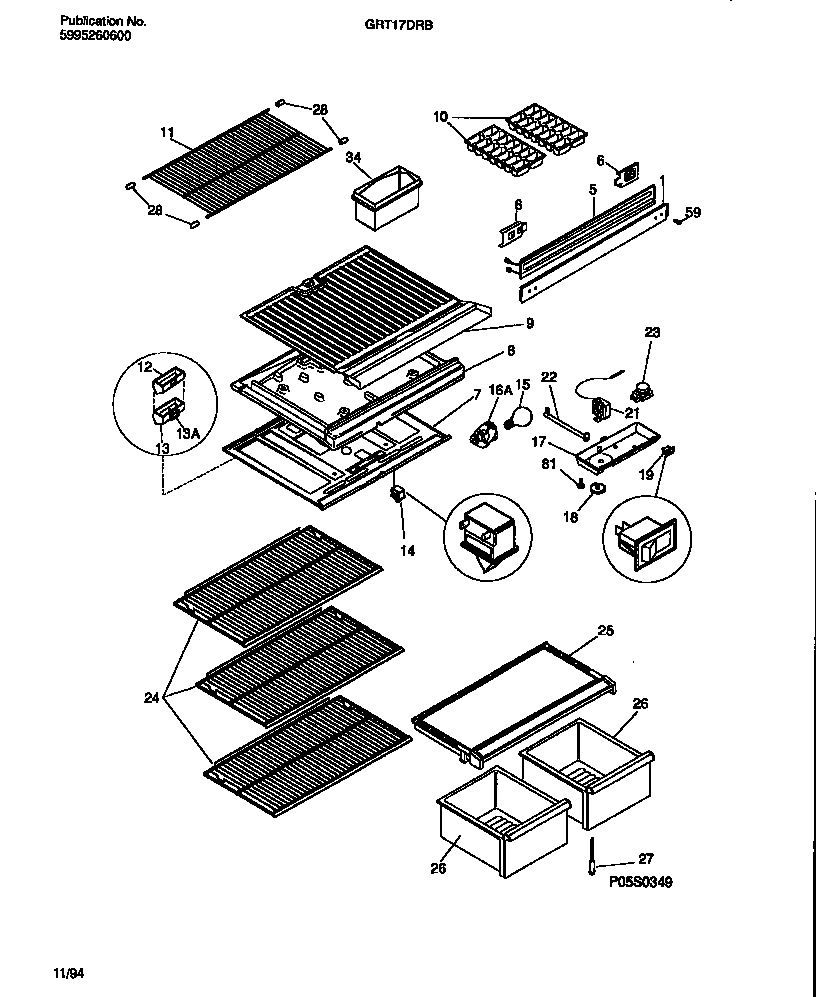

GRT17DRBW2 04 – SHELVES, CONTROLS, DIVIDER, MULLION

GRT17DRBW2 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Written by

in

GRT17DRBW2 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
1WCI 218252501
5WCI 218271401
6WCI 218279800
7AWCI 5303001380
7TOP PANEL-REFR
8B3205266 Frigidaire Refrigerator Edge Protector
8WCI 5303018899
8AWCI 3018900
9WCI 5303001537
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SHELF-FREEZER, FIXED/FLAT, FULL WIDTH, WIRE
11SPACER, FRZR SHELF (NOT ILLUSTRATED)
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15WCI 530301179
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303299980
17ANUT, ANCHOR (NI)
18WCI 5303299979
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5303018894
21WCI 5303001260
22WCI 3018891
235304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24SHELF-SLIDING, WIRE, REFR SECTION
24AWCI 5303283297
25WCI 5319001603
26WCI 2175791925
26AWCI 215791926
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
34WCI 3018945
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
