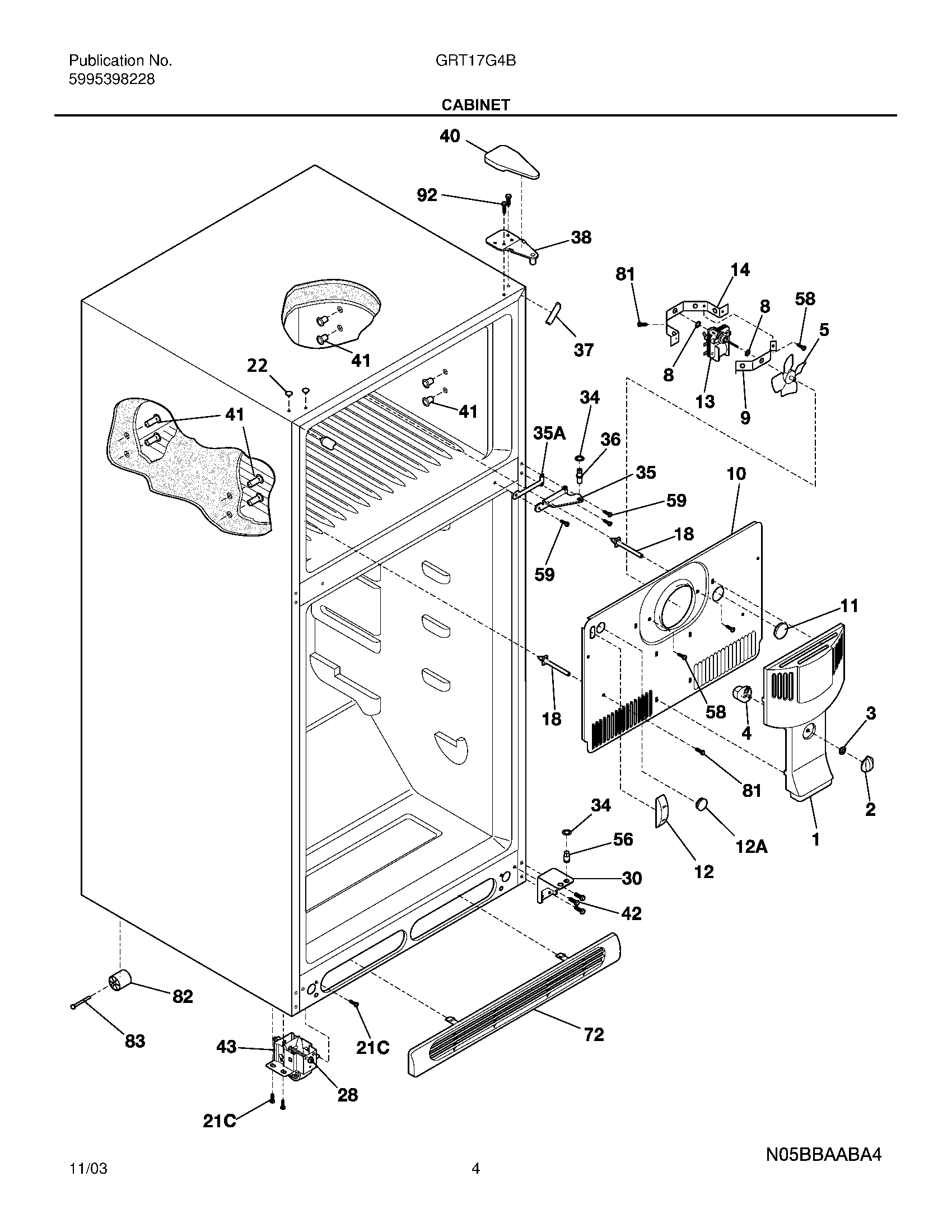

GRT17G4BW2 05 – CABINET

GRT17G4BW2 05 – CABINET

Written by

in

GRT17G4BW2 05 – CABINET

Products

Position	Product
NI	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
NI	215474201 Frigidaire Refrigerator Washer
NI	218843801 Frigidaire Refrigerator Screw
NI	HARNESS-WIRING
NI	5303321319 Frigidaire Refrigerator White Touch Up Paint
NI	240494001 Frigidaire Refrigerator Plug Button
NI	Clamp-motor wiring,nylon ,w/adhesive tape
NI	5304434189 Frigidaire Refrigerator Seal Kit
NI	241953902 Frigidaire Refrigerator Screw
1	241652301 Frigidaire 241259700 Evaporator Fan Cover
2	240367001 Frigidaire Refrigerator Air Damper Control Knob
3	Nut,push-on
4	WCI 240367401
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303292396
10	WCI 240462011
11	5303208309 Frigidaire Refrigerator Plug Hole
12A	WCI 240374401
12	WCI 240366801
13	EVAP MOTOR KIT
14	240438003 Frigidaire Refrigerator Bracket & Bushing
18	WCI 240411901
21C	218252201 Frigidaire Refrigerator Screw
22	215774901 Frigidaire Refrigerator Button Plug
30	Bracket-hinge,white ,bottom
34	240311303 Frigidaire Refrigerator Hinge Nylon Washer
35	Bracket-ctr hinge,white
35A	240336802 Frigidaire Refrigerator Hinge Spacer
36	241708002 Frigidaire Refrigerator Center Hinge Pin
37	242161201 Frigidaire Refrigerator Cabinet Corner Trim
38	WCI 240356901
40	240354401 Frigidaire Upper Hinge Cover
41	5304509705 Frigidaire Refrigerator Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
56	240516502 Frigidaire Refrigerator Lower Hinge Pin
58	5304455651 Frigidaire Refrigerator Screw
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
72	240368301 Frigidaire Refrigerator Kickplate Grille 530447011
81	5304455650 Frigidaire Refrigerator Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
92	241710601 Frigidaire Refrigerator Screw
