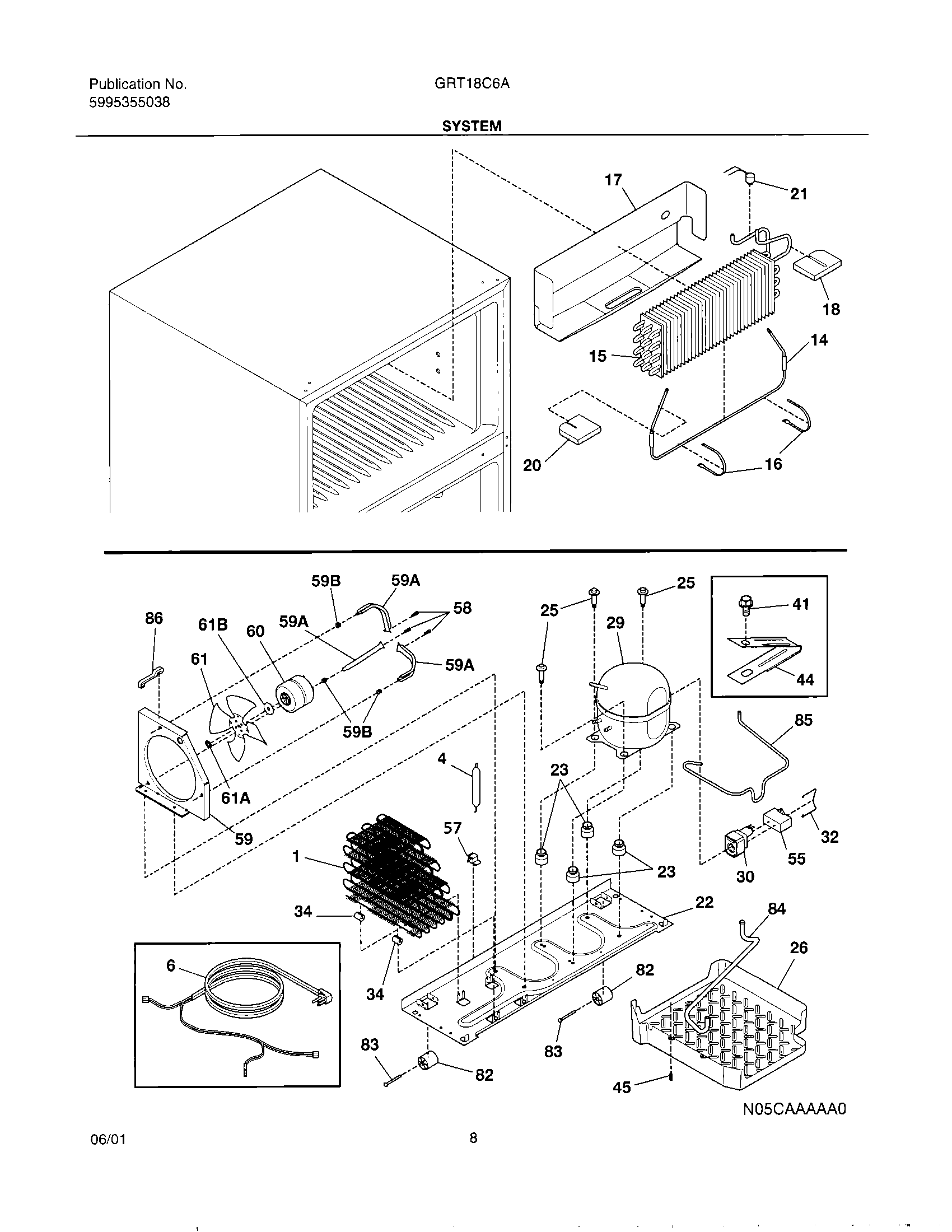

GRT18C6AW2 09 – SYSTEM

GRT18C6AW2 09 – SYSTEM

Written by

in

GRT18C6AW2 09 – SYSTEM

Products

PositionProduct
NI218252201 Frigidaire Refrigerator Screw
NI5303918263 Frigidaire Refrigerator Primary Heat Exchanger Kit (O/S1)
NIWCI 5303918222
NI240359403 Frigidaire Refrigerator Fan Shroud Screw
NI240388701 Frigidaire Refrigerator Wiring Harness
NI240346701 Frigidaire Refrigerator Foam Seal Tape
NIWCI 240385401
15304472169 Frigidaire Refrigerator Condenser Kit
45303305677 Frigidaire Replacement Filter Dryer Filters
6Wiring Harness,machine compt ,
145303918208 Frigidaire Defrost Heater Kit
155303918274 Frigidaire Refrigerator P1-Evaporator Kit Os1
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17241801301 Frigidaire Refrigerator Drain Trough
18Insulation Block,RH
20WCI 240362401
215303918202 Frigidaire Refrigerator Defrost Thermostat
22WCI 240330001
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25Screw-compressor mtg,hex washer head ,
26241920605 Frigidaire Refrigerator Defrost Pan
295304511983 Frigidaire Refrigerator Compressor Assembly Kit
30WCI 218721112
32218740800 Frigidaire Refrigerator Clamp
34240405201 Frigidaire Refrigerator Grommet
41WCI 218897001
445303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455650 Frigidaire Refrigerator Screw
555304464438 Frigidaire Compressor Run Capacitor
57240542601 Frigidaire Clip-WIRING Harness
58WCI 240453400
59A240346501 Frigidaire Refrigerator Support Bracket
59BWCI 240346601
59WCI 240315501
60CONDENSER FAN MOTOR KIT
61AWCI 240453300
61WCI 240315401
61BWCI 240453500
825304418225 Frigidaire Refrigerator Roller P-1
835304455655 Frigidaire Refrigerator Rivet
84240359601 Frigidaire Refrigerator Drain Tube
85WCI 240346201
86240409302 Frigidaire Refrigerator Condenser Tube Spacer
