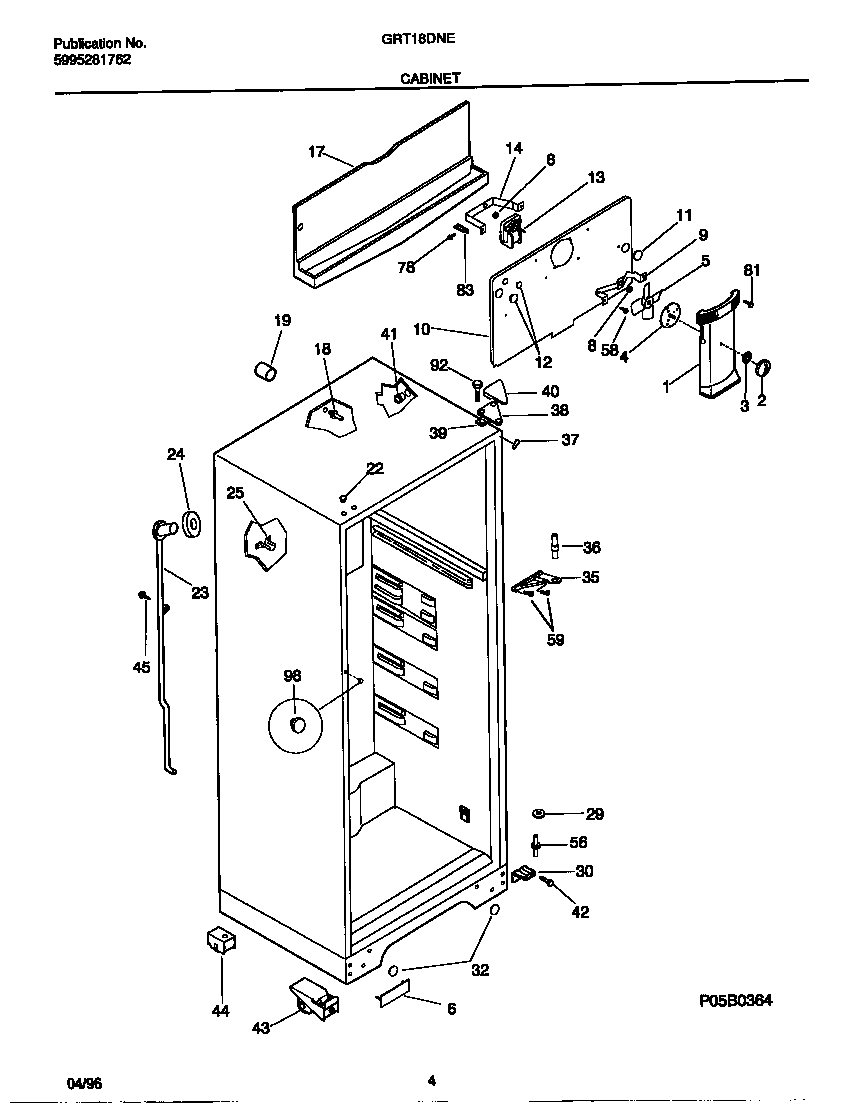

GRT18DNEW0 03 – CABINET

GRT18DNEW0 03 – CABINET

Written by

in

GRT18DNEW0 03 – CABINET

Products

PositionProduct
*440435304500008 Frigidaire Oven Screw
*44044PLUG, BUTTON, CABINET LINER (NI)
*440465303321319 Frigidaire Refrigerator White Touch Up Paint
1WCI 5303307350
2WCI 5303307351
3Nut,push-on
4WCI 218430000
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 218448301
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10AWCI 3206451
115303208309 Frigidaire Refrigerator Plug Hole
12BWCI 215079100
12AWCI 215079000
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17TROUGH-DRAIN
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
22215774901 Frigidaire Refrigerator Button Plug
23WCI 5303269702
24WCI 5303207353
25WCI 215774100
29WASHER, .34 X .62 X .05, NYLON
30AWCI 3206136
30BTAPPING PLATE, LOWER HINGE, (2) (NI)
30CSHIM, LOWER HINGE (NI)
32PLUG-BUTTON, WHITE, CABINET BASE
35BRACKET-CTR HINGE, LIGHT GREY
36218251300 Frigidaire Refrigerator Center Hinge Pin
37TRIM-CABINET CORNER, WHITE
38WCI 3206100
39SHIM – UPPER HINGE
40WCI 3206101
41B5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
41A5304509705 Frigidaire Refrigerator Grommet
42241710601 Frigidaire Refrigerator Screw
43EBOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
43DWCI 5308011326
43CWCI 5308009790
43BWCI 5308009760
43AWCI 5300188673
44ROLLER ASSY, METAL HOUSING, REAR, (2)
455304455651 Frigidaire Refrigerator Screw
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
98215099701 Frigidaire Refrigerator Button Plug
