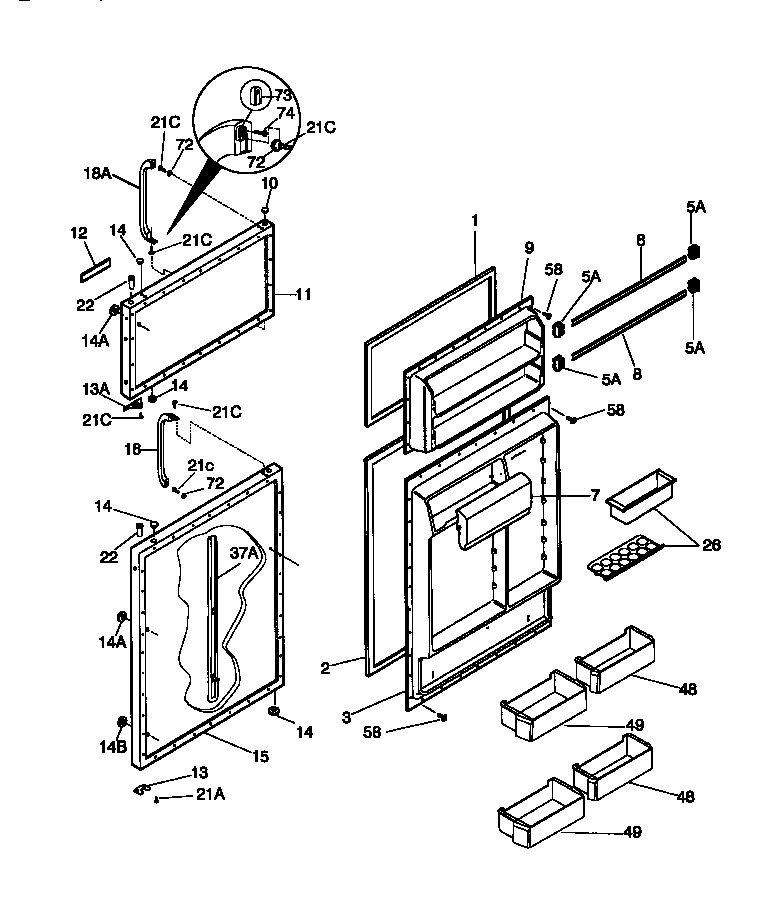

GRT18QNCW0 02 – DOOR

GRT18QNCW0 02 – DOOR

Written by

in

GRT18QNCW0 02 – DOOR

Products

PositionProduct
*66040INSULATION
1WCI 215608916
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 218360701
5A215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
7WCI 215058108
8215366002 Frigidaire Refrigerator Door Wide Rack
9WCI 218360101
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917582
12WCI 218409401
12BMAGNET-NAMEPLATE (NOT ILLUSTRATED)
12AWCI 215220329
13WCI 5308000255
13AWCI 218249001
14A240494001 Frigidaire Refrigerator Plug Button
14BWCI 218074001
15WCI 5303917586
18AWCI 218397501
18WCI 218397504
21C218252201 Frigidaire Refrigerator Screw
21ASCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22BEARING-HINGE
26A215817806 Frigidaire Refrigerator Egg Tray
26WCI 3204522
37BWCI 215940700
37CWCI 215782300
37AWCI 218397701
48WCI 218286003
49WCI 5303310709
585304455651 Frigidaire Refrigerator Screw
72WCI 218397000
73218396700 Frigidaire Door Handle Mounting Block
74215503203 Frigidaire Refrigerator Door Handle Screw
