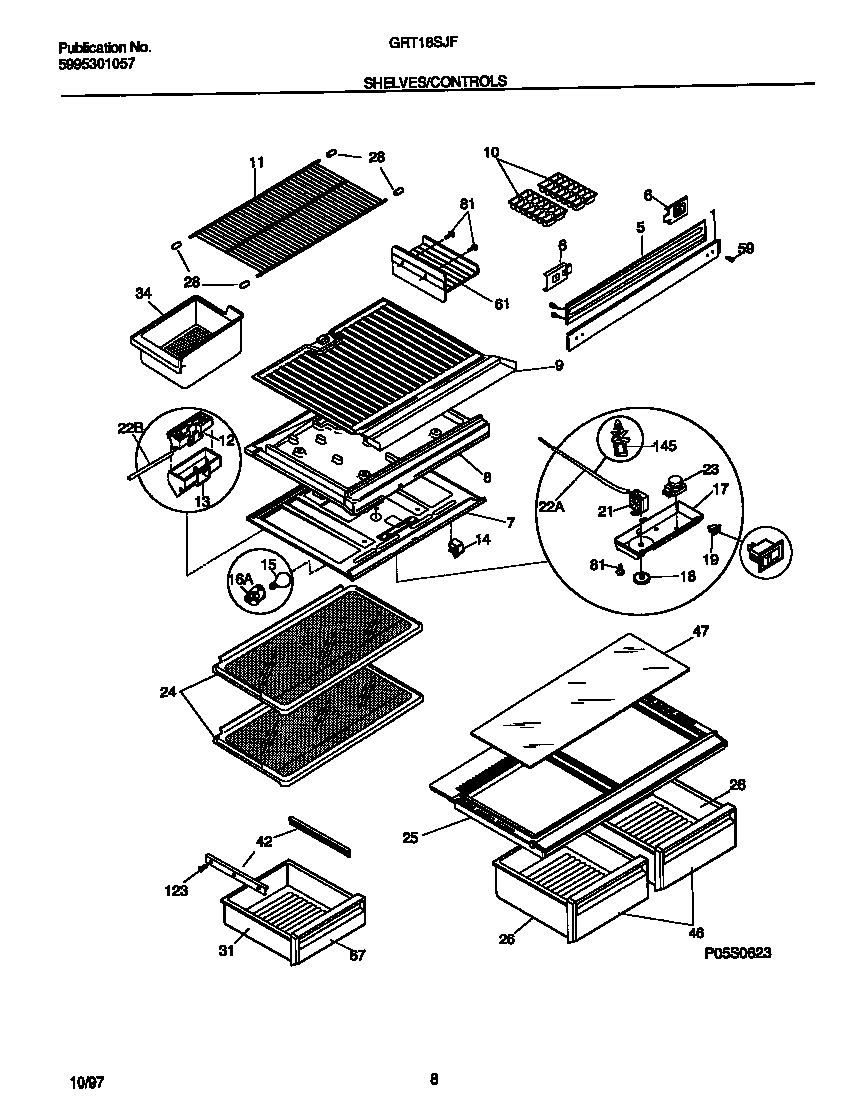

GRT18SJFW0 05 – SHELVES/CONTROLS

GRT18SJFW0 05 – SHELVES/CONTROLS

Written by

in

GRT18SJFW0 05 – SHELVES/CONTROLS

Products

PositionProduct
1WCI 218430801
5WCI 218781003
6WCI 218279800
7WCI 218740500
7WCI 5303001380
8WCI 3018900
8WCI 218778900
9BOTTOM PANEL-FRZR
10215667501 Frigidaire Refrigerator Ice Tray Primary
11ASHELF, FREEZER, FIXED/FLAT, FULL WIDTH, WIRE
11B5303299664 Frigidaire Refrigerator Spacer-Shelf
12AWCI 218730000
12B5303001449 Frigidaire Refrigerator Seal
13WCI 218631001
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17BNUT, ANCHOR (NI)
17AWCI 5303321455
18WCI 5303311079
19SWITCH-ENERGY SAVER, ROCKER
21BWCI 5303001260
21ACOLD CONTROL
22WCI 218731101
22TUBE
23A215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23B5304455649 Frigidaire Refrigerator Screw
24SHELF-“SPILL-SAFE“, (3)
25AWCI 215681400
25WCI 5303313914
25B5303307715 Frigidaire Refrigerator Humidity Control
263206438 Frigidaire Refrigerator Crisper Pan
28END CAP-SHELF,PROTECTOR
31MEAT PAN
345303212918 Frigidaire Refrigerator Cont
42DTAB-MEAT PAN HANGER, REAR (NOT ILLUSTRATED)
42CTAB-MEAT PAN HANGER, FRONT (NOT ILLUSTRATED)
42B218971302 Frigidaire Refrigerator Rh Rail
42A218971202 Frigidaire Refrigerator Hanger-Pan/Tray
46BWCI 5303310712
46AWCI 5303310711
47WCI 218390558
61WCI 215781501
67WCI 5303310724
815304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
145WCI 218660800
