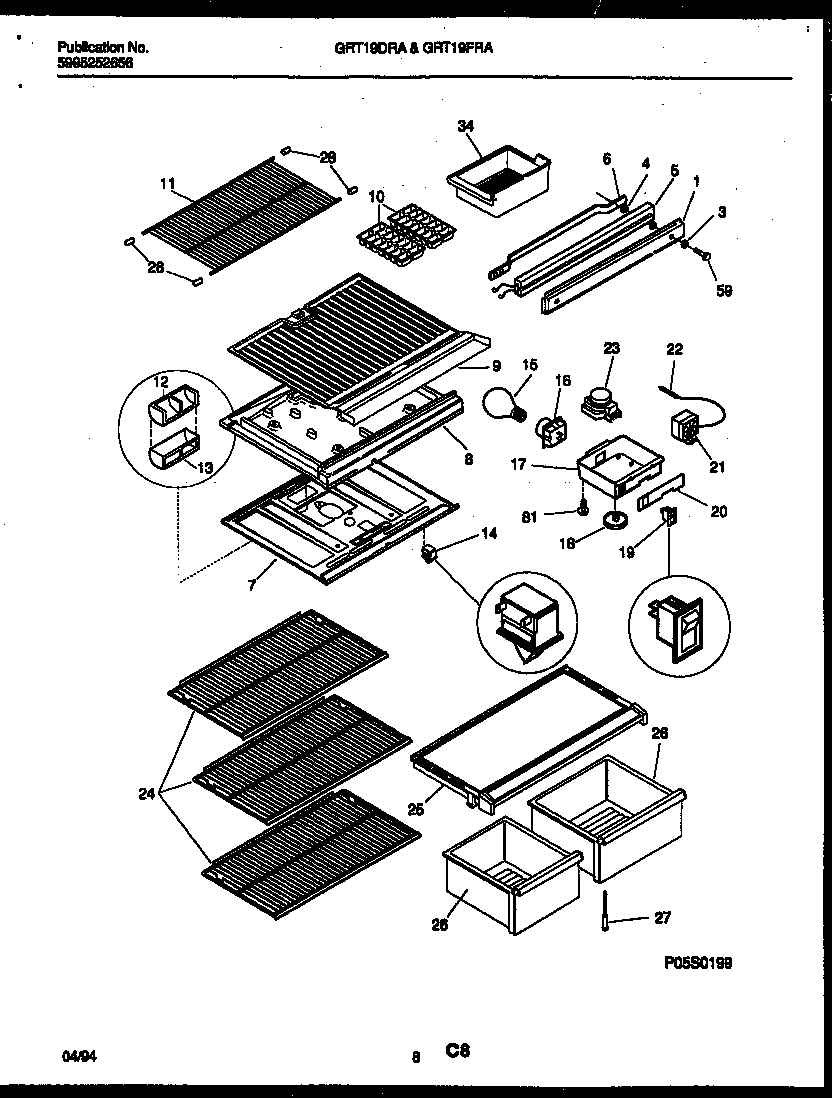

GRT19DRAD0 05 – SHELVES AND SUPPORTS

GRT19DRAD0 05 – SHELVES AND SUPPORTS

Written by

in

GRT19DRAD0 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303200370
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4WCI 218188100
5WCI 5303210351
6WCI 5308010008
7TOP PANEL-REFR, W/SNAP BUSHING
7AWCI 5303001380
7BBUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
8AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
8DIVIDER, STYROFOAM
9WCI 5303211427
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303283031
12DEFLECTOR-AIR
13COVER – AIR DEFLECTOR
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
17ANUT, ANCHOR (NI)
17WCI 5303015152
18WCI 5303300067
19SWITCH-ENERGY SAVER, SLIDE TYPE
20WCI 215611400
21AWCI 5303001260
21WCI 5303200810
22TUBE
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24SHELF, SLIDING WIRE
24AWCI 5303283297
25WCI 5308010006
26WCI 215791921
26WCI 5303304551
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
59WCI 215097000
815304455650 Frigidaire Refrigerator Screw
