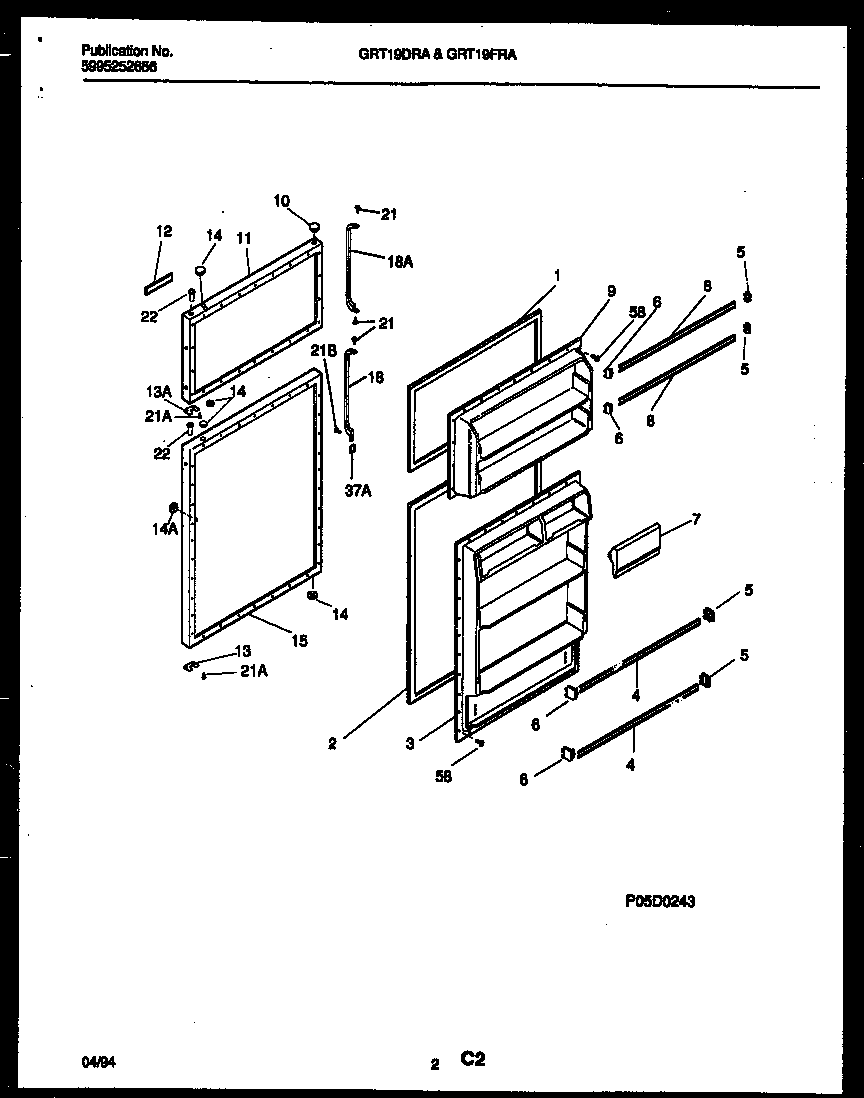

GRT19DRAW0 02 – DOOR PARTS

GRT19DRAW0 02 – DOOR PARTS

Written by

in

GRT19DRAW0 02 – DOOR PARTS

Products

PositionProduct
*74047INSULATION
1WCI 5303018791
2WCI 5303018792
3WCI 5303206569
4WCI 5303281387
5WCI 5303007295
6WCI 5303007297
7WCI 5303304552
8WCI 5303288345
9PANEL-INNER DOOR, FRZR
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917350
12NAMEPLATE ASSY, WHITE W/MTG TAPE
13DOOR STOP, REFR SECTION
13AWCI 5308000255
14A240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917348
15AWCI 215894100
18WCI 215800903
18AWCI 215800901
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, WHITE,
21AWCI 5308011745
21B154518001 Frigidaire Refrigerator Screw
22BEARING-HINGE
37ATRIM-HANDLE, END CAP, WHITE, REFR DOOR
585304455651 Frigidaire Refrigerator Screw
