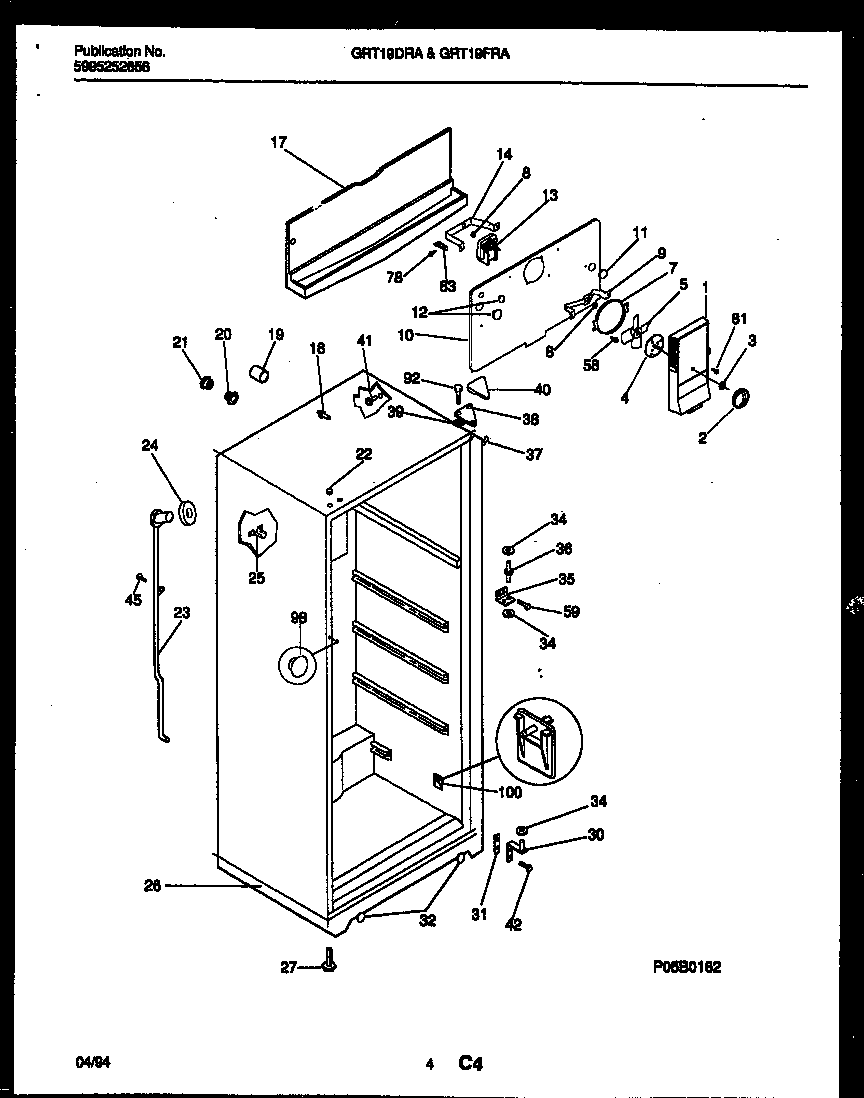

GRT19DRAW0 03 – CABINET PARTS

Products

Position	Product
1	WCI 5303299977
2	WCI 5303299978
3	Nut,push-on
4	DAMPER-FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10A	WCI 5303209636
10	WCI 5308009771
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 215079000
12	WCI 215079100
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
17	WCI 5303001470
18	SUPPORT – EVAP COVER, (2)
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
22	PLUG-BUTTON, WHITE
23	WCI 5303210377
24	WCI 5303207353
25	WCI 215774100
26	WCI 5303212487
27	Screw-leveling,(2)
30A	TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
30	BRACKET-LOWER HINGE, W/ HINGE PIN
30B	TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
31	WCI 5303212488
32	WCI 5303212923
34	WCI 5308000186
35	WCI 218085400
36	WCI 5308000184
37	TRIM-CABINET CORNER, WHITE
38A	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38	BRACKET-UPPER HINGE
39	SHIM – UPPER HINGE
40	COVER-UPPER HINGE, WHITE
41A	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
41	5304509705 Frigidaire Refrigerator Grommet
42	241710601 Frigidaire Refrigerator Screw
45	5304455651 Frigidaire Refrigerator Screw
59	WCI 215097000
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
98	215099701 Frigidaire Refrigerator Button Plug
100	SUPPORT-PAN COVER
74062	PLUG, BUTTON, CABINET LINER (NI)
