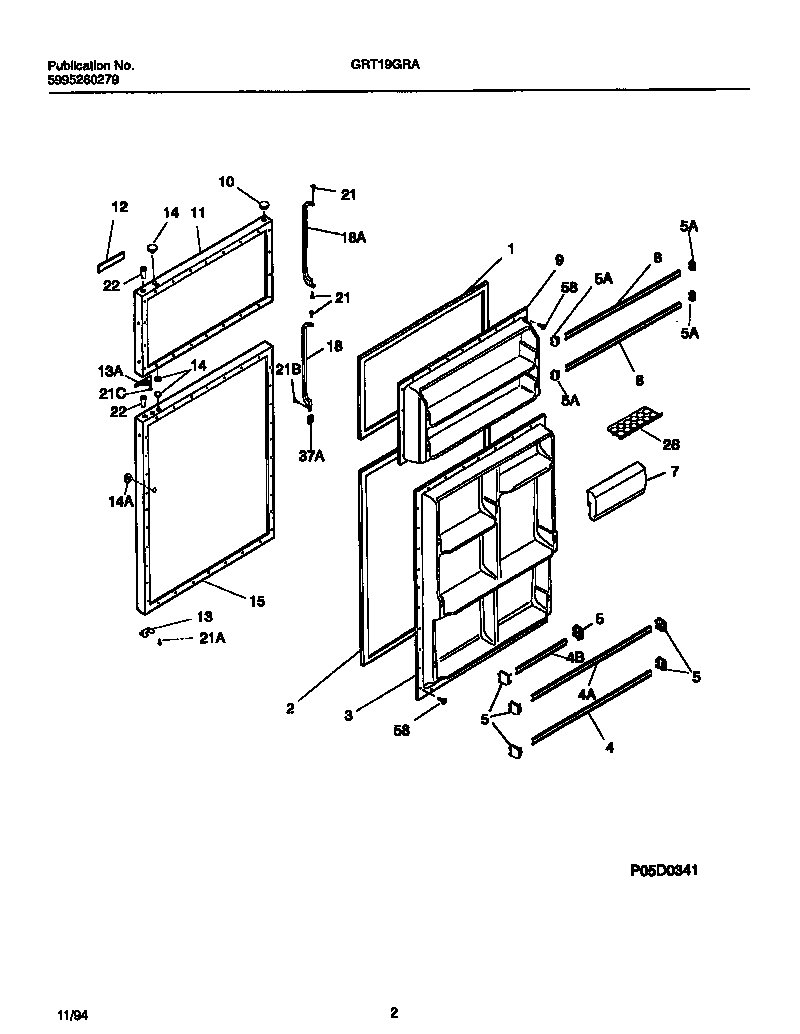

GRT19GRAD3 02 – DOOR SECTION

GRT19GRAD3 02 – DOOR SECTION

Written by

in

GRT19GRAD3 02 – DOOR SECTION

Products

PositionProduct
*75680INSULATION
1WCI 215608902
2WCI 215732403
3WCI 215393201
4AWCI 215386091
5A215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
7WCI 215058104
8215366002 Frigidaire Refrigerator Door Wide Rack
9WCI 215466501
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917351
12WCI 215731811
13AWCI 218249002
13DOOR STOP, REFR SECTION
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
14AWCI 215352211
15AWCI 215894100
15WCI 5303917343
18WCI 215800922
18AWCI 215800920
21C218252201 Frigidaire Refrigerator Screw
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, ALMOND,
21AWCI 5308011745
21B154518001 Frigidaire Refrigerator Screw
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
37AWCI 215480204
585304455651 Frigidaire Refrigerator Screw
