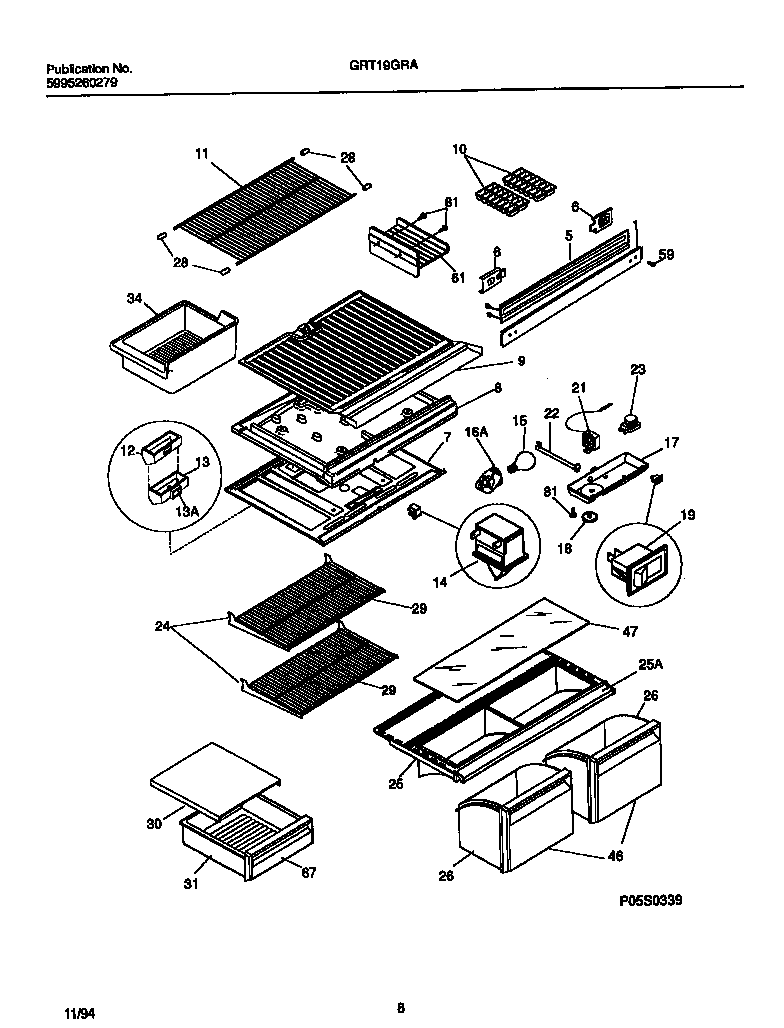

GRT19GRAD3 04 – SHELVES, CONTROLS, DIVIDER, MULLION

GRT19GRAD3 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Written by

in

GRT19GRAD3 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
1WCI 218252504
5WCI 218271402
6WCI 218279800
7WCI 5303001380
7TOP – REFRIGERATOR
8B3205266 Frigidaire Refrigerator Edge Protector
8DIVIDER-FOAM
8AWCI 3018900
9WCI 5303211427
10215667501 Frigidaire Refrigerator Ice Tray Primary
11ASPACER, FRZR SHELF (NOT ILLUSTRATED)
11WCI 5303283031
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13WCI 5303001448
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17AWCI 5308016587
17WCI 5303299980
18WCI 5303299979
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5303001260
21WCI 5303018894
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 5303300035
25ATRIM – CRISPER COVER
25WCI 215363202
26WCI 215363301
28END CAP-SHELF,PROTECTOR
29WCI 5303295125
30WCI 3206205
31WCI 3206209
345303212918 Frigidaire Refrigerator Cont
46AWCI 215363403
46WCI 215363402
47WCI 5303303763
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
61WCI 215781501
67WCI 5303301455
