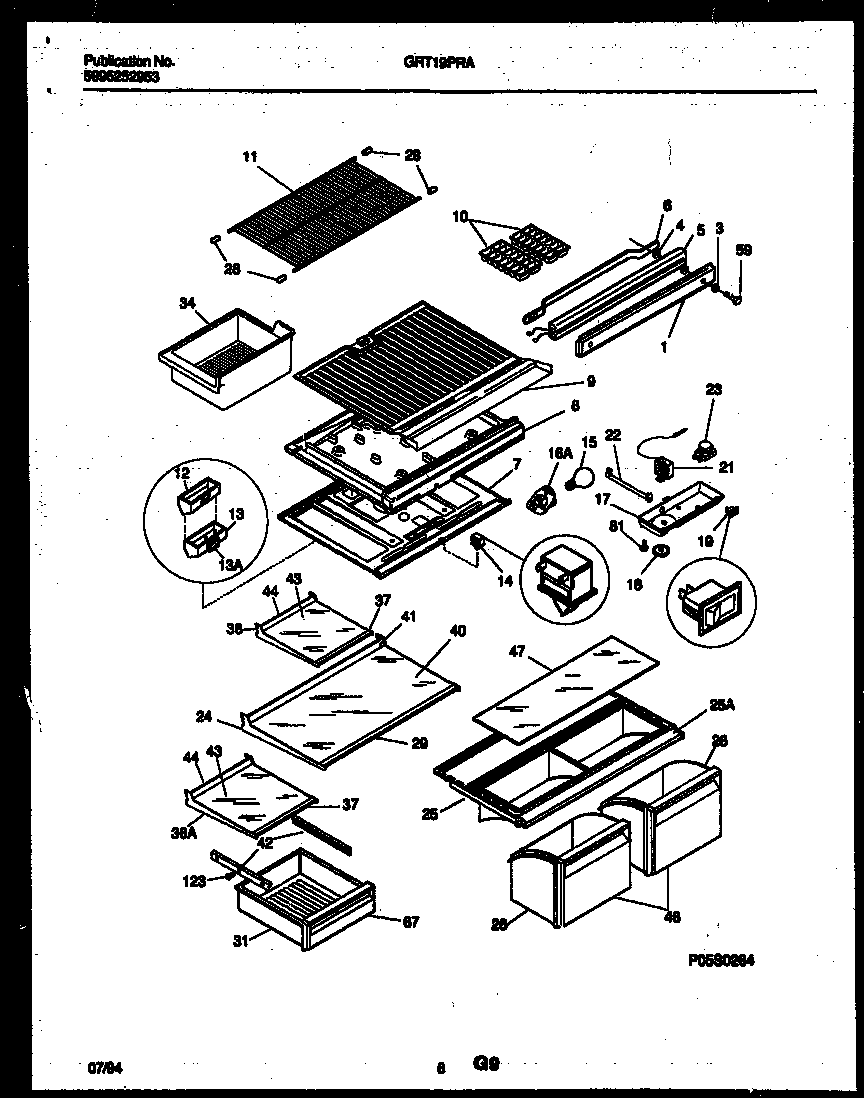

GRT19PRAD0 05 – SHELVES AND SUPPORTS

GRT19PRAD0 05 – SHELVES AND SUPPORTS

Written by

in

GRT19PRAD0 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303200370
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7TOP – REFRIGERATOR
7AWCI 5303001380
8DIVIDER-FOAM
8AWCI 3018900
8B3205266 Frigidaire Refrigerator Edge Protector
9WCI 5303211427
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303283031
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17ANUT, ANCHOR (NI)
17WCI 5303299980
18WCI 5303299979
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303001260
21WCI 5303018894
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24FRAME-FULL SHELF, CANTILEVER
25ATRIM – CRISPER COVER
25WCI 215363202
26WCI 215363301
28END CAP-SHELF,PROTECTOR
29WCI 5303295131
29AWCI 5303209274
31MEAT PAN
345303212918 Frigidaire Refrigerator Cont
36WCI 215069005
36AFRAME-MEAT KPR SHLF, CANTILEVER, HALF WIDTH
37ARETAINER-GLASS, (3) (NON-ILLUSTRATED)
37WCI 5303295126
40SHELF-GLASS, FULL SHELF
41WCI 5303304518
42218971302 Frigidaire Refrigerator Rh Rail
42218971202 Frigidaire Refrigerator Hanger-Pan/Tray
43SHELF-GLASS, HALF SHELF, (3)
44WCI 5303304519
46WCI 215363402
46WCI 215363403
47WCI 215723532
59WCI 215097000
67WCI 5303301507
815304455650 Frigidaire Refrigerator Screw
123WCI 08014528
79281LOCK-SHELF TRIM, REAR
79282WCI 215339900
